Dahua Bracket & Junction Box

CJB-7136 Dahua Bracket DH-PFA136 Junction Box

CJB-7136 Dahua Bracket DH-PFA136 Junction Box

Dahua Bracket DH-PFA136 Junction Box
Dimension: Φ110.0mmx34.0mm
Dahua Bracket & Junction Box
Hikvision Bracket & Junction Box
Product description: This bracket is only applicable to Dahua Cameras, in order let the bracket better matching your camera, please refer to the Dahua official website to check if the bracket is match your camera,so that
INQUIRY EMAIL

This Bracket is only applicable to Dahua Cameras, in order let the bracket better matching your camera, please refer to the Dahua official website to check if the bracket is match your camera,so that you can match perfectly.

Material: Aluminum

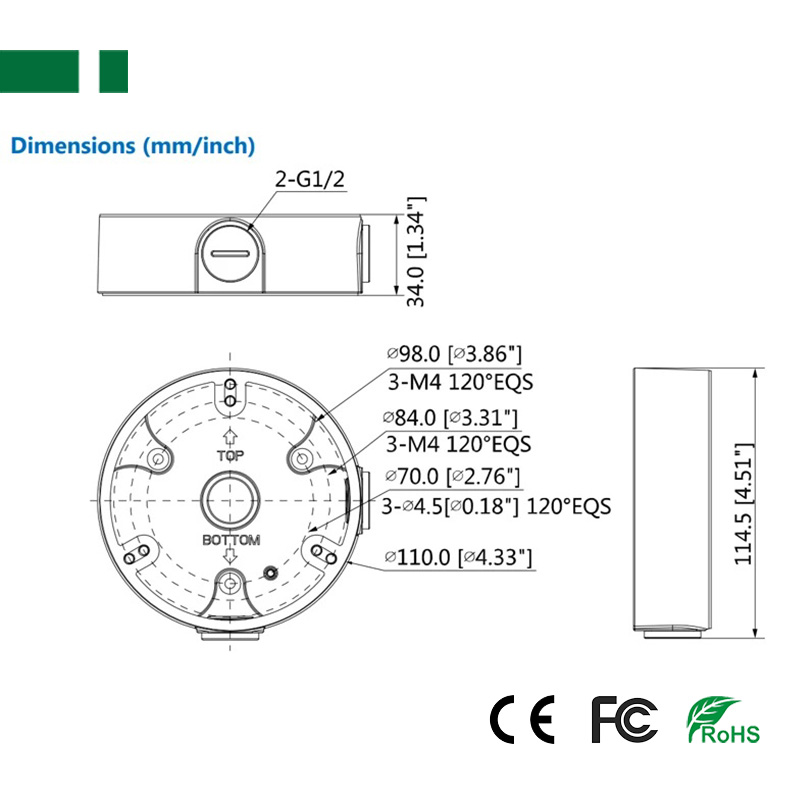

Dimension: Φ110.0mmx34.0mm (Φ4.33”x1.34”)
Inch Thread: M20(G1/2”)
Load Bearing: 1.0kg(2.2lb)
Weight: 0.19kg(0.42lb)
Color: White

Specification:

Aluminum Bracket & Junction Box
Model	Dahua-Bracket-DH-PFA135-Junction-Box.html target='_blank'>CJB-7135	Dahua-Bracket-DH-PFA136-Junction-Box.html target='_blank'>CJB-7136	Dahua-Bracket-DH-PFA137-Junction-Box.html target='_blank'>CJB-7137
Dahua Model	DH-PFA135	DH-PFA136	DH-PFA137
Dimension	φ90mmx34.1mm	Φ110.0mmx34.0mm	φ122x34.2mm
Weight	0.16kg	0.19kg	0.24Kg
Load Bearing	1.0kg(2.2lb)
Inch Thread	M20(G1/2”)
Material	Aluminum
Color	White
