USB & Type-C HUB

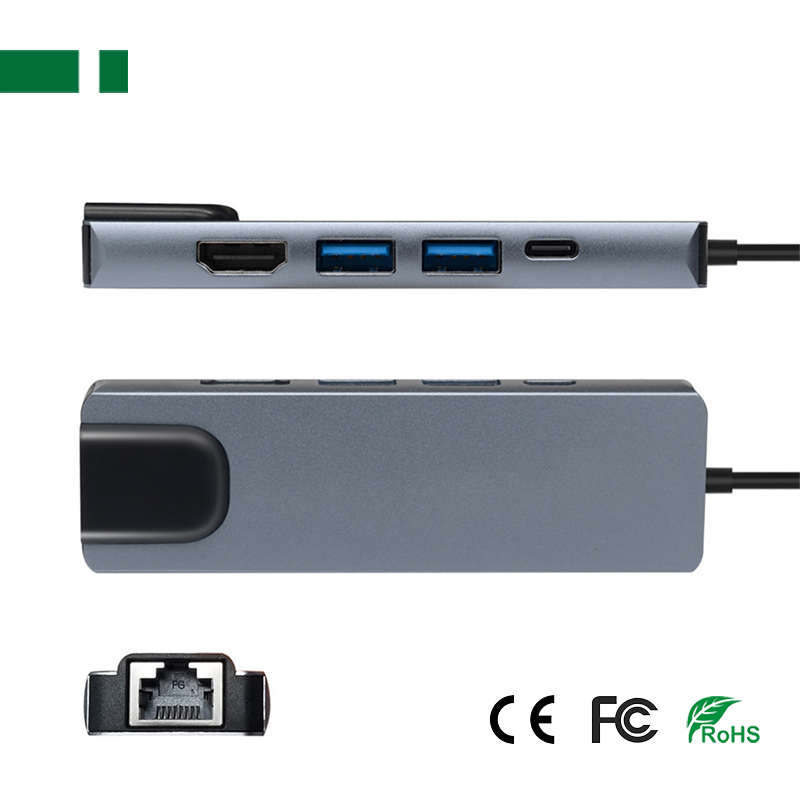

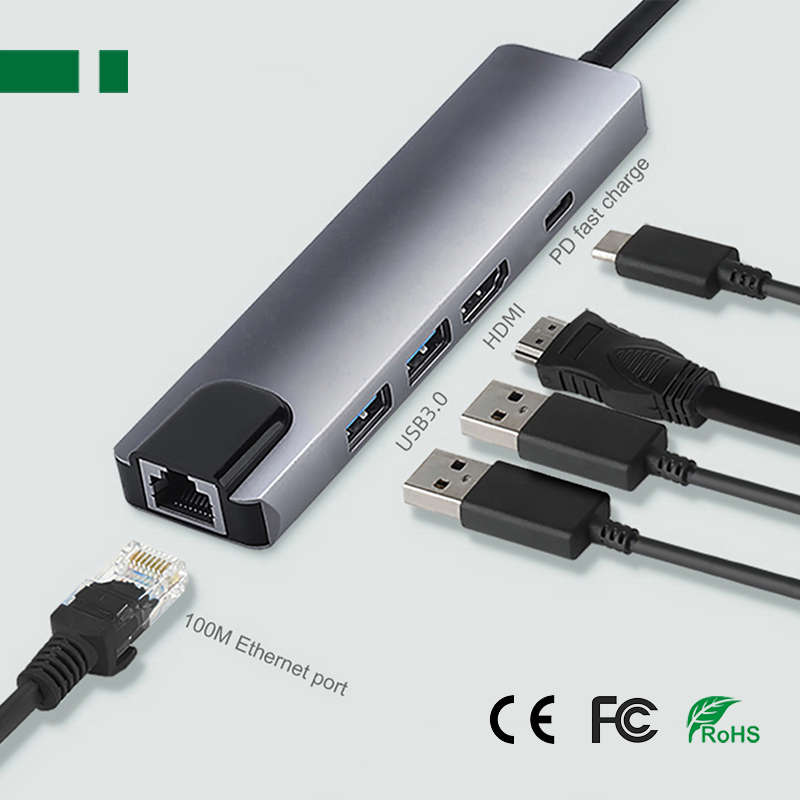

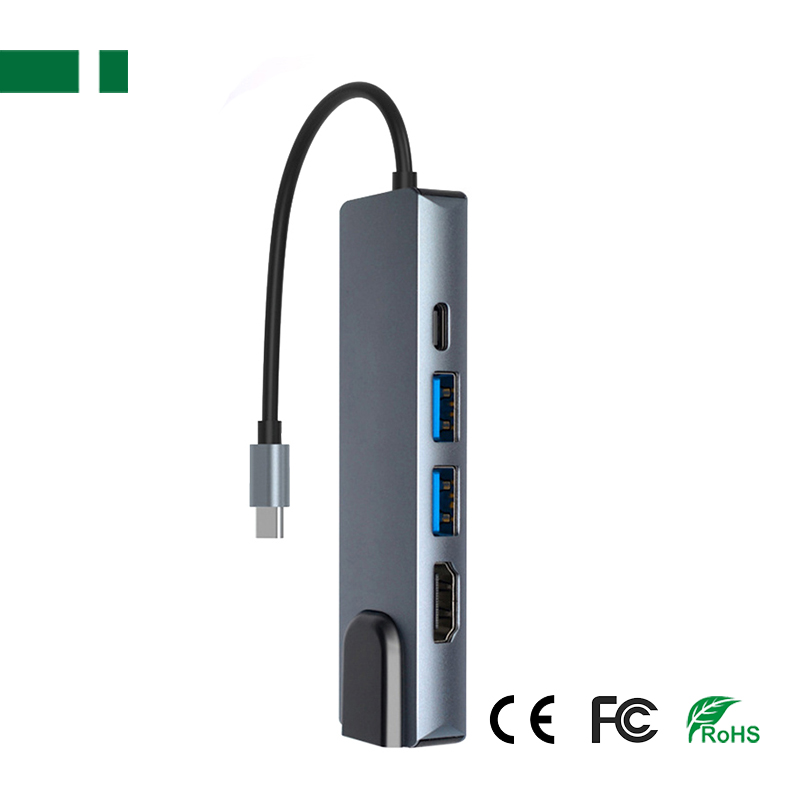

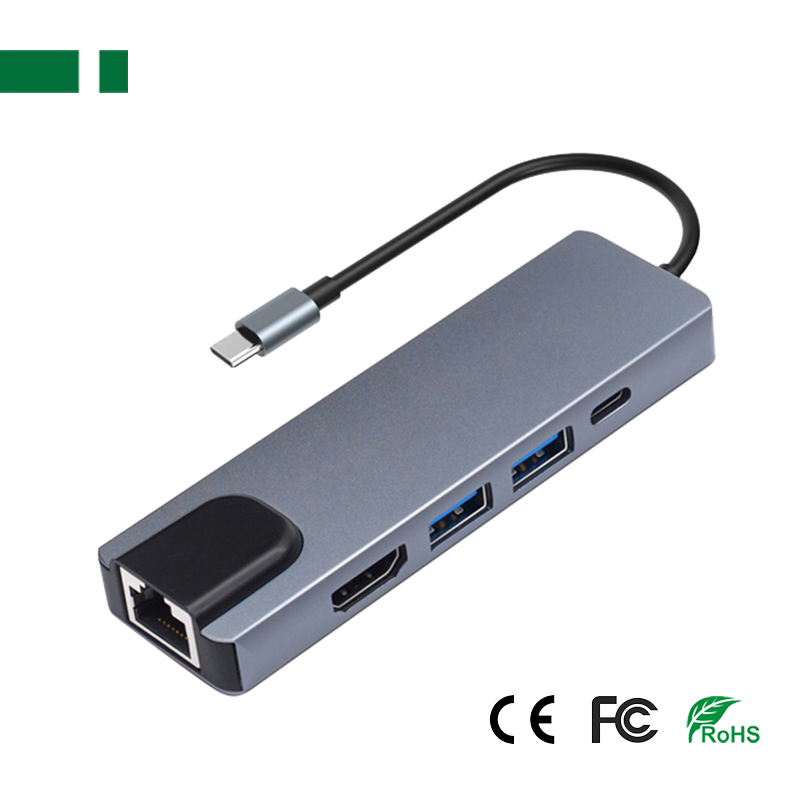

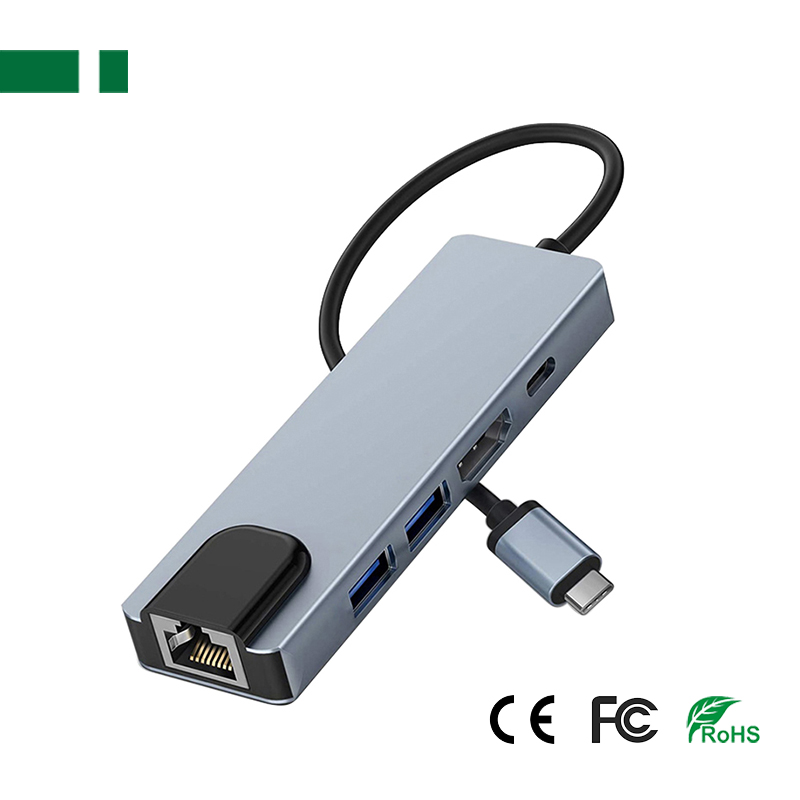

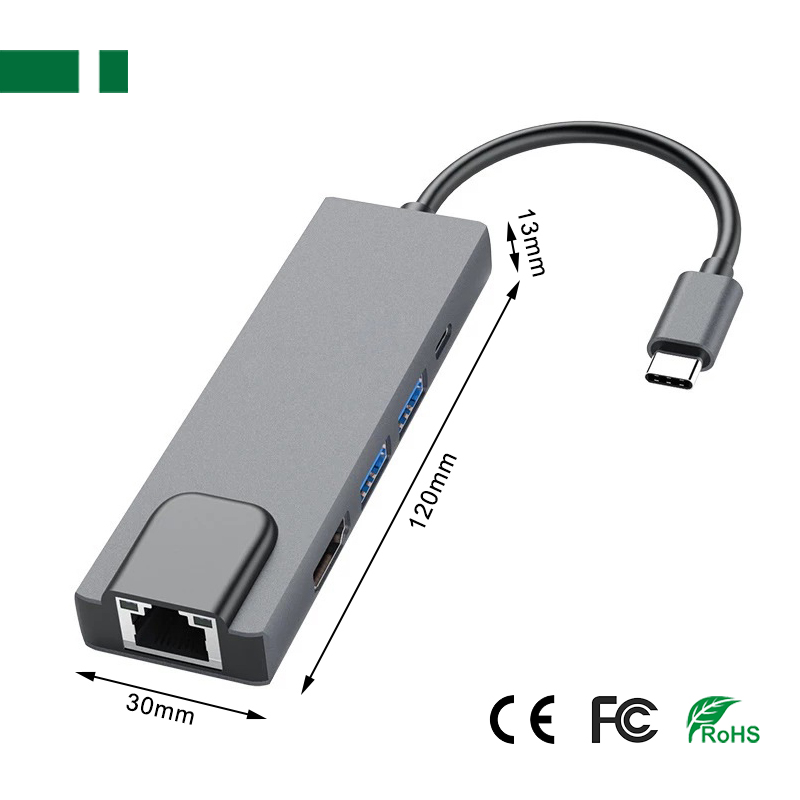

CHM-TC504 USB 3.1 -C to HDMI+RJ45+ USB3.0 & 2.0+PD Adapter (5 in 1)
- USB 3.1 -C to HDMI+RJ45+ USB3.0 & 2.0+PD Adapter (5 in 1)
- HDMI 1.4 Female output: 4K@30Hz
- RJ45 Port: 10/100Mbps Ethernet port
- USB 2.0 & 3.0 Female and PD Female (Max. 100W)
- Product description: USB C Hub 5 in 1 USB Type C Hub Multiport Adapter with 4K HDTV Output USB 3.0 2.0 RJ45 Ethernet USB C PD Charging Ports
USB C Hub 5 in 1 USB Type C Hub Multiport Adapter with 4K HDTV Output USB 3.0 2.0 RJ45 Ethernet USB C PD Charging Ports
1xRJ45 port, supports 10M/100M broadband.
1xUSB3.0 port, data transmission up to 5Gbps, supports simultaneous data transmission and maximum 900mA power supply.
1xUSB2.0 port.
1xPD port, high-speed data transmission and charging. In addition to basic data transmission, it can also support charging and video output.
Supports HDMI/USB HUB and charging port at the same time.
It is suitable for notebooks with USB Type-C ports such as for MacBook, for Chromebook, for Dell XPS13 and so on.
Specification:
Input: USB Type-C
Output: USB 3.0+USB 2.0+RJ45+HDMI+PD
Tip:
1. Make sure that the USB-C port on the device complies with USB 3.0 / USB 3.1 specifications. Compatible with USB 2.0 Type C devices.
2. To use the HD MI output port, the USB-C port on your device must support DisplayPort Alt Mode.
3. To use the Power Delivery function to power and charge a connected USB-C laptop, the USB-C port on your device must support USB Power Delivery. The USB-C input charging port cannot be used for data transfer.
4. Please do not rely on the USB-A port to charge mobile phones, tablets or other devices.
5. For a stable connection, please do not use this hub with high-power equipment. Supports one hard drive at most.
6. It does not support charging for HP laptops and tablets through the PD USB-C charging port.
7. For Dell USB-C notebooks that enable charging and power supply through the PD USB-C charging port, you need to use an original Power Adapter of 55W or above.
Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
Feature:
1xHDMI V1.4 port, supports a maximum resolution of 3840x2160 UHD 4K at 30Hz.1xRJ45 port, supports 10M/100M broadband.
1xUSB3.0 port, data transmission up to 5Gbps, supports simultaneous data transmission and maximum 900mA power supply.
1xUSB2.0 port.
1xPD port, high-speed data transmission and charging. In addition to basic data transmission, it can also support charging and video output.
Supports HDMI/USB HUB and charging port at the same time.
It is suitable for notebooks with USB Type-C ports such as for MacBook, for Chromebook, for Dell XPS13 and so on.
Specification:
Input: USB Type-C
Output: USB 3.0+USB 2.0+RJ45+HDMI+PD
Tip:
1. Make sure that the USB-C port on the device complies with USB 3.0 / USB 3.1 specifications. Compatible with USB 2.0 Type C devices.
2. To use the HD MI output port, the USB-C port on your device must support DisplayPort Alt Mode.
3. To use the Power Delivery function to power and charge a connected USB-C laptop, the USB-C port on your device must support USB Power Delivery. The USB-C input charging port cannot be used for data transfer.
4. Please do not rely on the USB-A port to charge mobile phones, tablets or other devices.
5. For a stable connection, please do not use this hub with high-power equipment. Supports one hard drive at most.
6. It does not support charging for HP laptops and tablets through the PD USB-C charging port.
7. For Dell USB-C notebooks that enable charging and power supply through the PD USB-C charging port, you need to use an original Power Adapter of 55W or above.
Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
