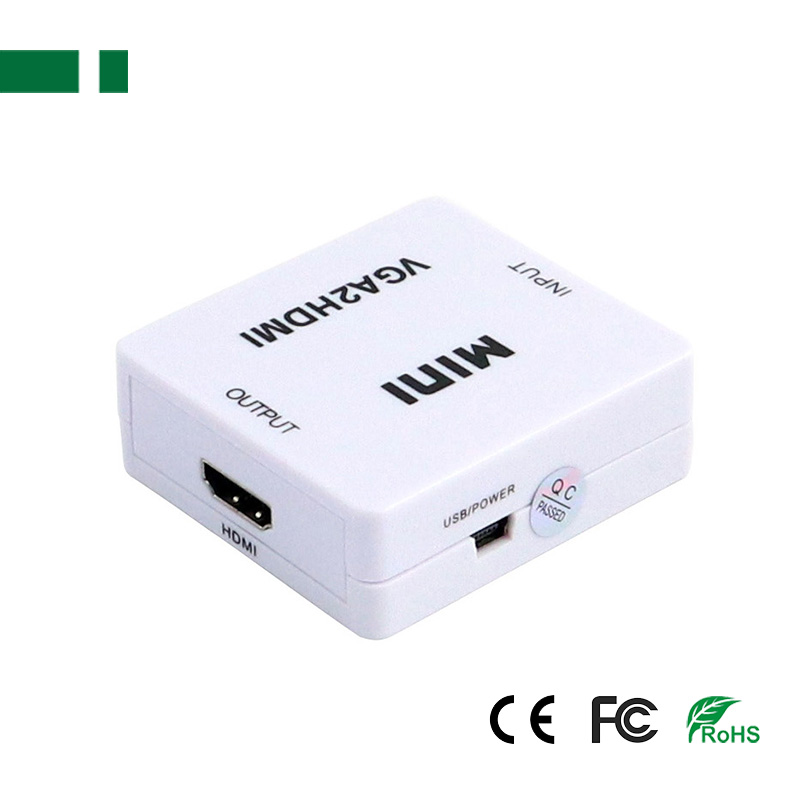

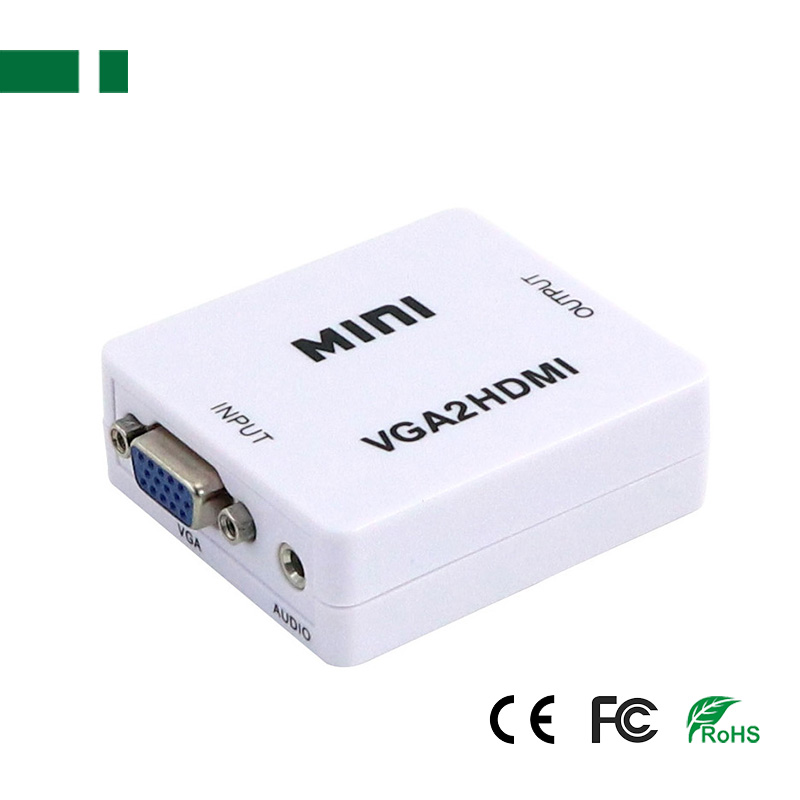

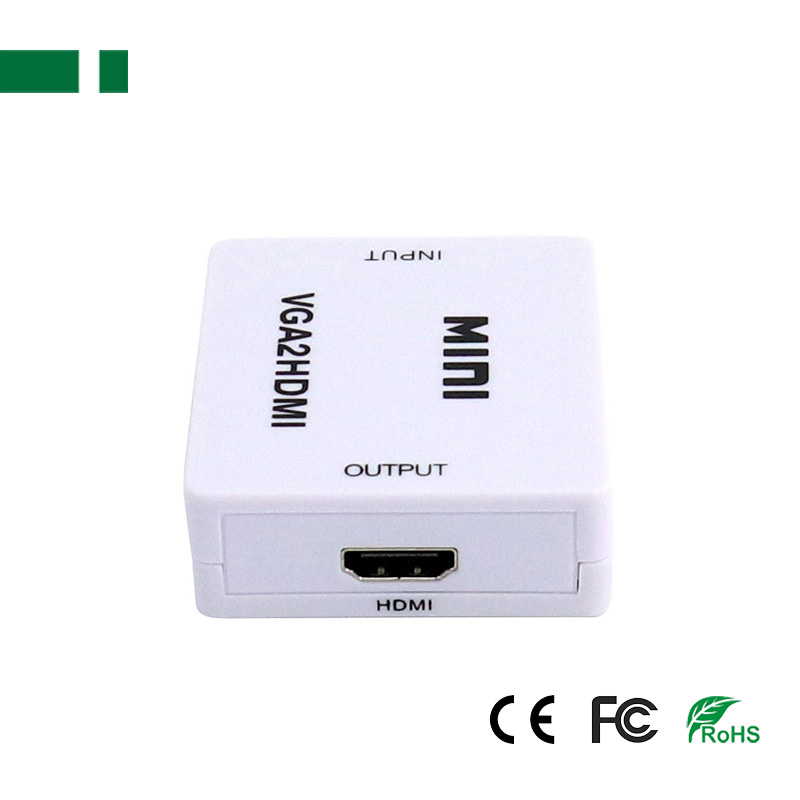

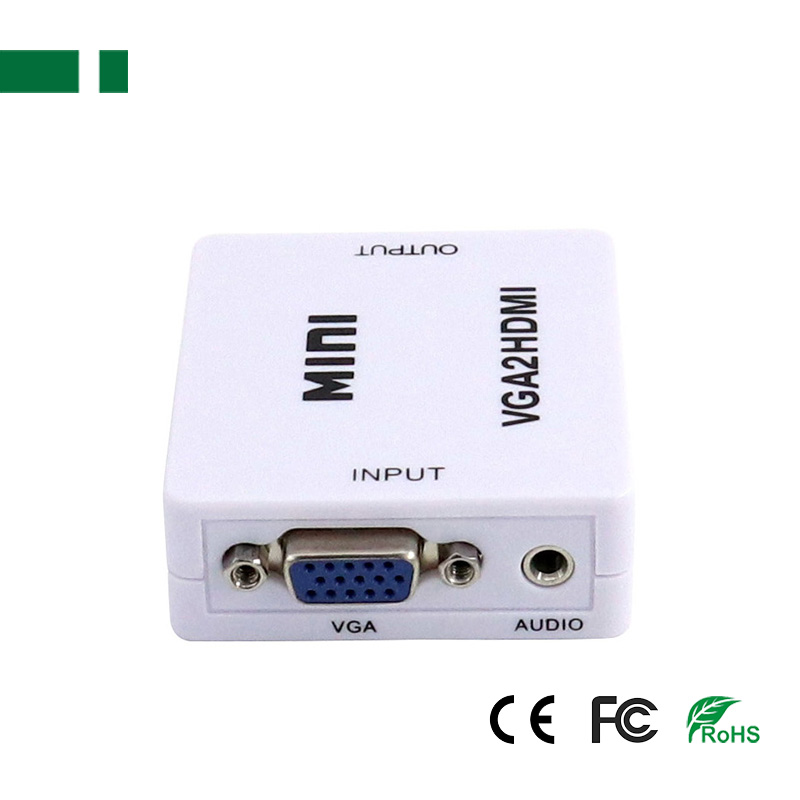

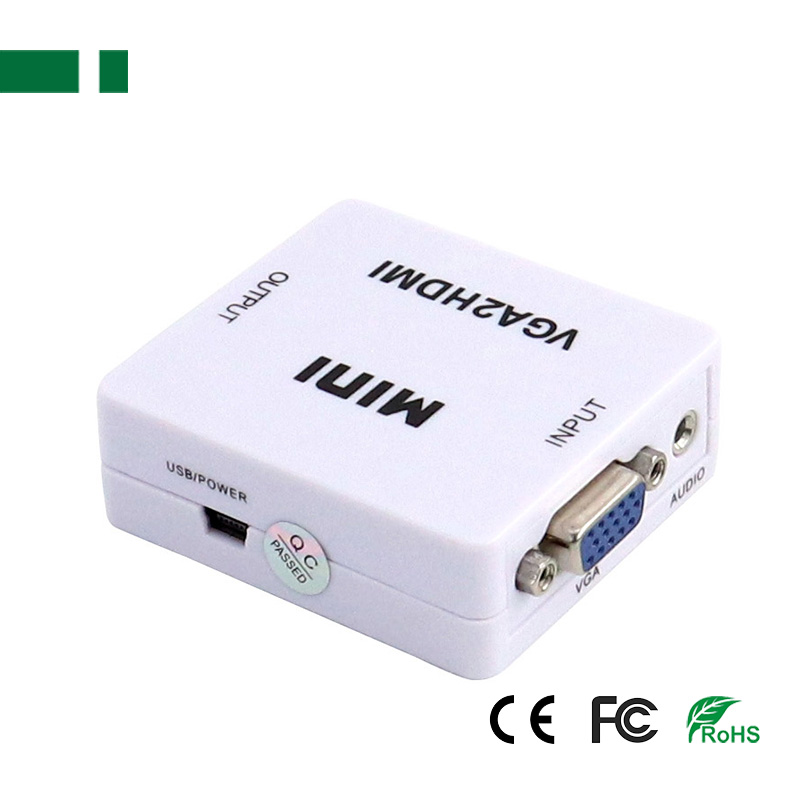

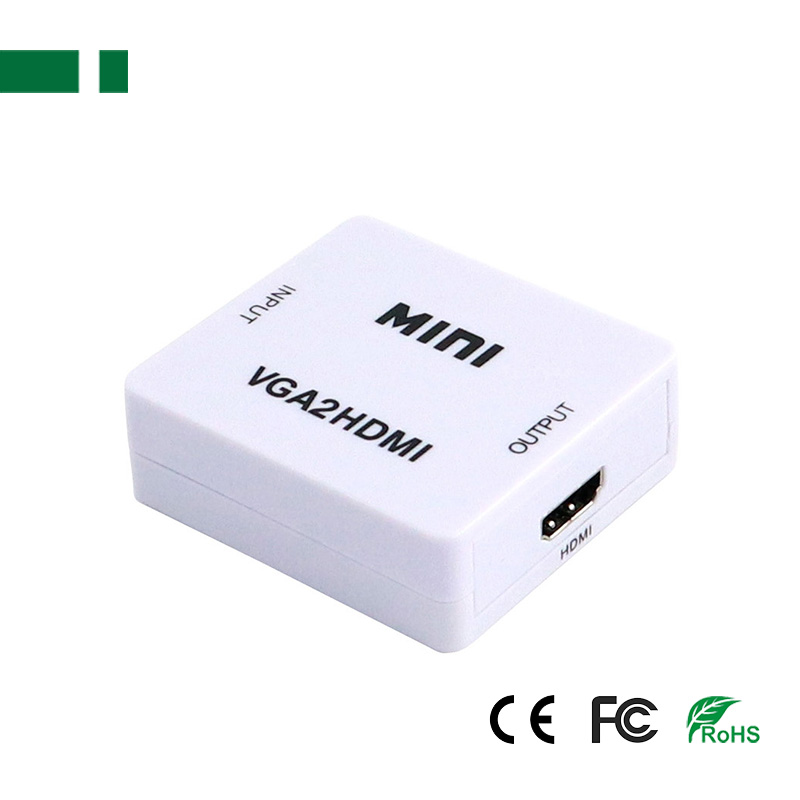

CHDV-M600 VGA to HDMI Converter

Product description: CASVIEW technology concentrating on switching power supply, power adapter, solar LED lights & cctv accessories etc. email: info@casview.com
INQUIRY EMAIL

Product Parameter :
VGA to HDMI Converter
Convert general PC signal & audio signal to HDMI format for HD displays
1080P HDTV
Low power comsuption
No need to install drivers portable flexible plug and play.
Output the audio synchronization with video
High bandwidth capability support 1920 x 1080@60Hz.

Support HDMI 1.3 version (compatible with 1.0/1.1/1.2) Support HDCP 1.2

Specifications:
1. Input ports: VGA 3.5mm audio jack
2. Output ports: HDMI
3. Dimensions(mm): 66(D)x55(W)x20(H)
4. Wight (g): 40
USB Cable Length: 80cm

Interface functions
1, VGA input interface: Connect tine host PC or laptop computer with VGA interface
2, HDMI output interface: Connect HDMI converter are high-definition TV Monitor HDMI interface
3, Audio input interface: Connect AUDIO OUT interface which from PC or laptop computer
4, DC/5V:Power input interface (DC/5V 600mA)
Resolution Support:
640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz
