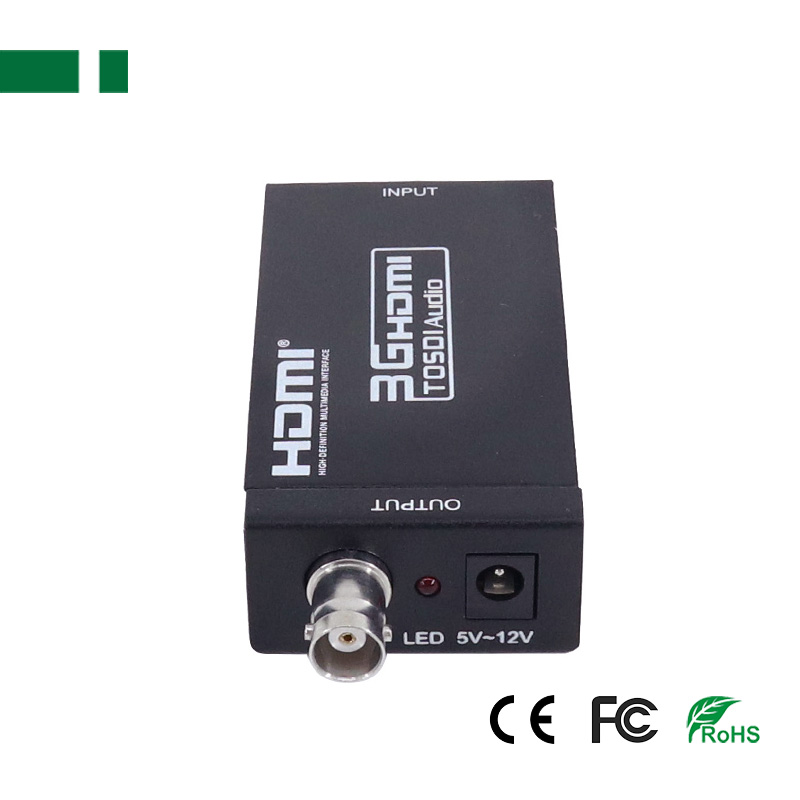

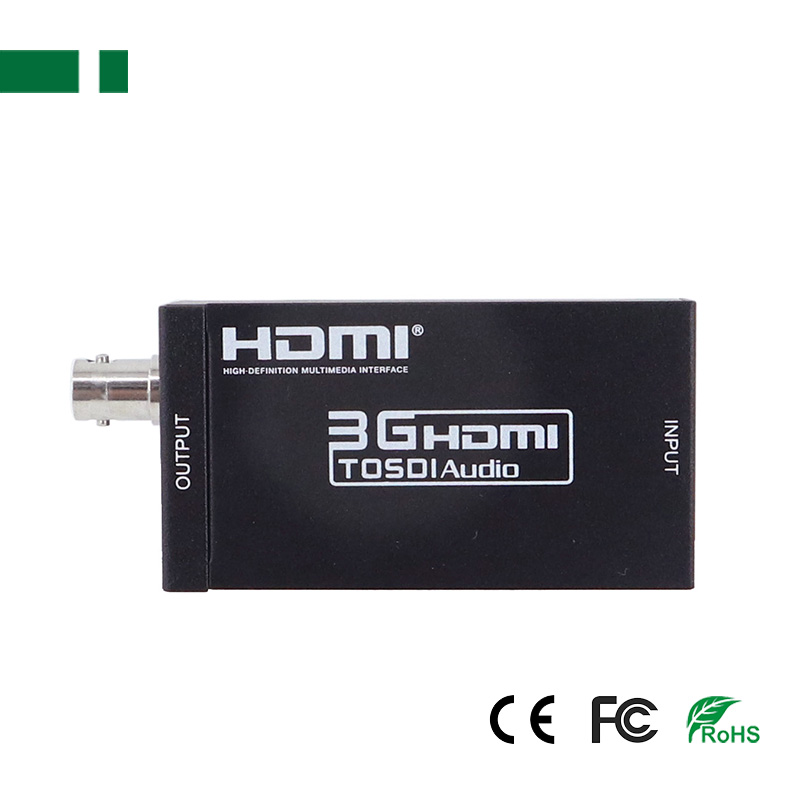

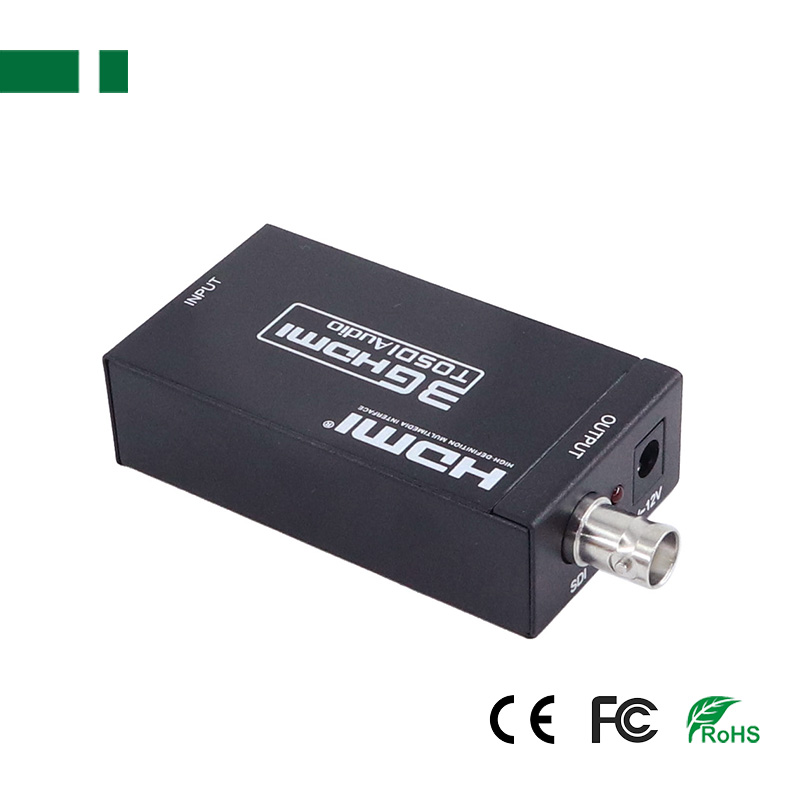

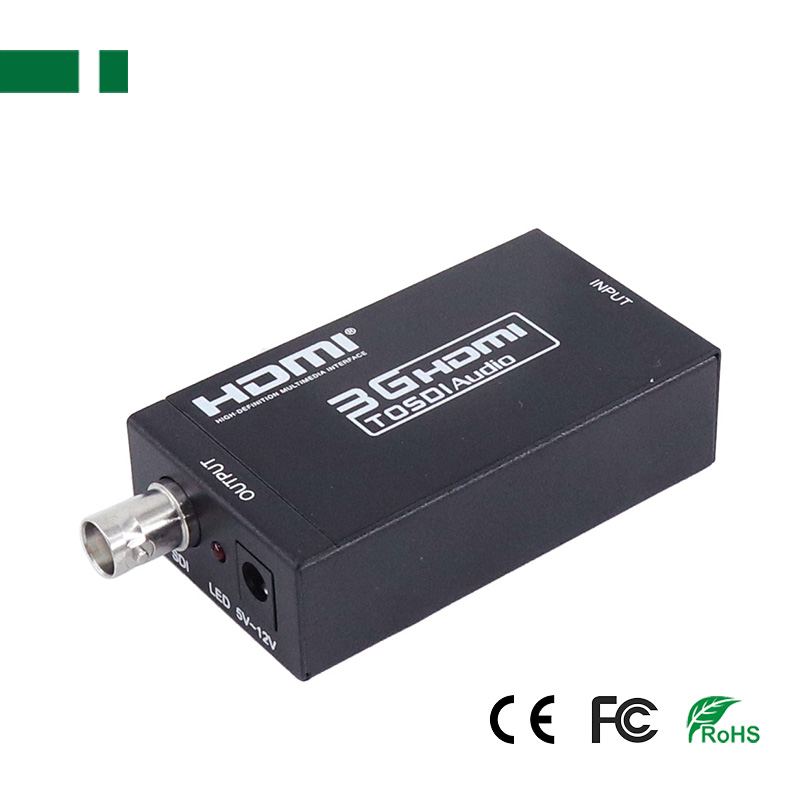

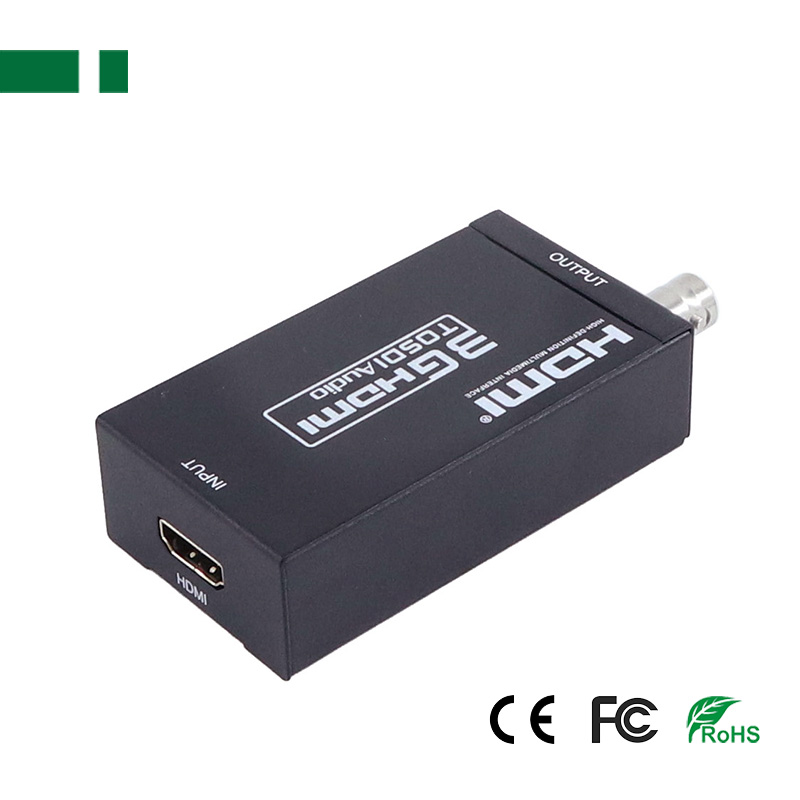

CHDS-1001 1080P@60Hz HDMI to SDI Converter
- 1080P@60Hz HDMI to SDI Converter
- Power Supply: DC5V
- SDI Transmission Rates: 2.970 Gbit/s, 1.485 Gbit/s;
- Supports SDI output distance up to 100M(3G-SDI), 200M(HD-SDI), or 300M(SD-SDI);
- Product description: The Micro HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97Gbit/s to give you high resolution signal without any loss.
Introduction
The Micro HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI display.
Features:
1. 1080P@60Hz HDMI to SDI Converter;
2. Input Port: 1 x HDMI(720P, 1080P);
3. Output Port: 1 x BNC (SD-SDI/ HD-SDI/ 3G-SDI);
4. SDI Transmission Rates: 2.97Gbit/s, 1.485Gbit/s;
5. Supports SDI output distance up to 100M(3G-SDI), 200M(HD-SDI), or 300M(SD-SDI);

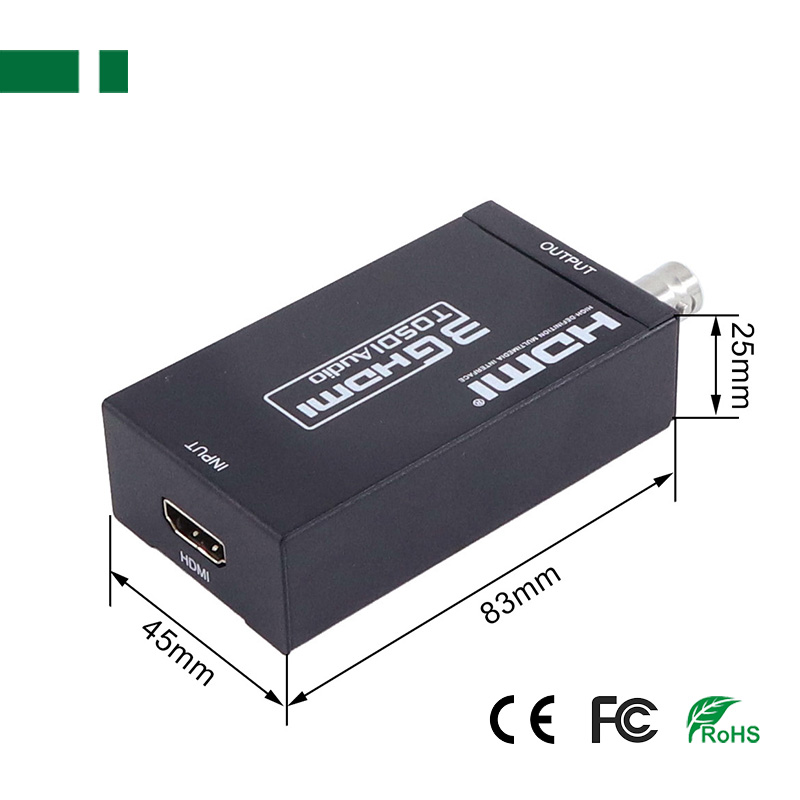

6. Size: 80*41*25mm, 150g.
Specification:
The Micro HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI display.
Features:
1. 1080P@60Hz HDMI to SDI Converter;
2. Input Port: 1 x HDMI(720P, 1080P);
3. Output Port: 1 x BNC (SD-SDI/ HD-SDI/ 3G-SDI);
4. SDI Transmission Rates: 2.97Gbit/s, 1.485Gbit/s;
5. Supports SDI output distance up to 100M(3G-SDI), 200M(HD-SDI), or 300M(SD-SDI);
6. Size: 80*41*25mm, 150g.
Specification:
| 1080P@60Hz HDMI to SDI (SD-SDI/ HD-SDI/ 3G-SDI) Converter | |||||
| More Model | CHDS-1001 | CHDS-1002 | |||
| Input Port | 1 * HDMI (1080P/60Hz, 1080i/60Hz, 720P/60Hz, 576i, 480i) | ||||
| Output Port | 1 * BNC (SD-SDI/ HD-SDI/ 3G-SDI) | 2 * BNC (SD-SDI/ HD-SDI/ 3G-SDI) | |||
| Transmit Rate | 3G-SDI(SMPTE 424M/425M-AB): 2.970 Gbit/s), HD-SDI(SMPTE 292M): 1.485 Gbit/s) | ||||
| Distance | 3G-SDI: Max. 100M, HD-SDI: Max. 200M, SD-SDI: Max. 300M | ||||
| Power Supply | DC5V | ||||
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) | ||||
| Dimension | 80*43*23mm | 97*55*23mm | |||
| Weight | 150g | 130g | |||
| 1080P@60Hz SDI (SD-SDI/ HD-SDI/ 3G-SDI) to HDMI Converter | |||||
| More Model | CHDS-2001 | CHDS-2002 | CHDS-2003 | CHDS-2004 | CHDS-2005 |
| Input Port | 1 * BNC (SD-SDI/ HD-SDI/ 3G-SDI) | ||||
| Output Port | HDMI*1 | HDMI*1 + BNC(SDI)*1 | 3*RCA + BNC(SDI)*1 | VGA*1 + BNC(SDI)*1 | HDMI*1 + DVI*1 |
| Transmit Rate | 3G-SDI(SMPTE 424M/425M-AB): 2.970 Gbit/s), HD-SDI(SMPTE 292M): 1.485 Gbit/s) | ||||
| Distance | 3G-SDI: Max. 100M, HD-SDI: Max. 200M, SD-SDI: Max. 300M | ||||
| Power Supply | DC5V | ||||
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) | ||||
| Dimension | 80*43*23mm | 97*55*23mm | 115*68*25mm | 115*68*25mm | 115*68*25mm |
| Weight | 150g | 130g | 357g | 357g | 393g |
