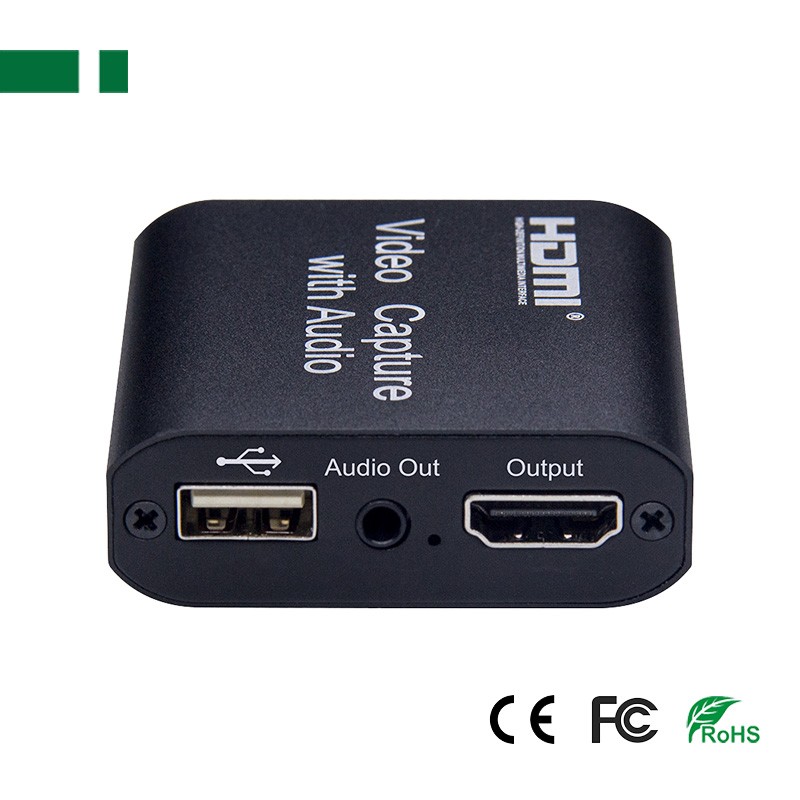

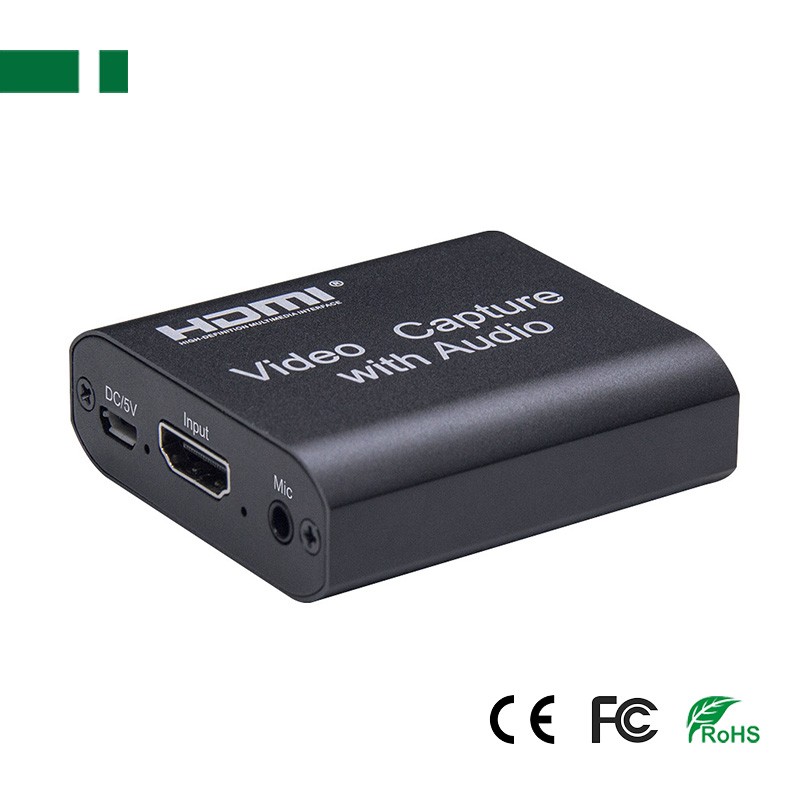

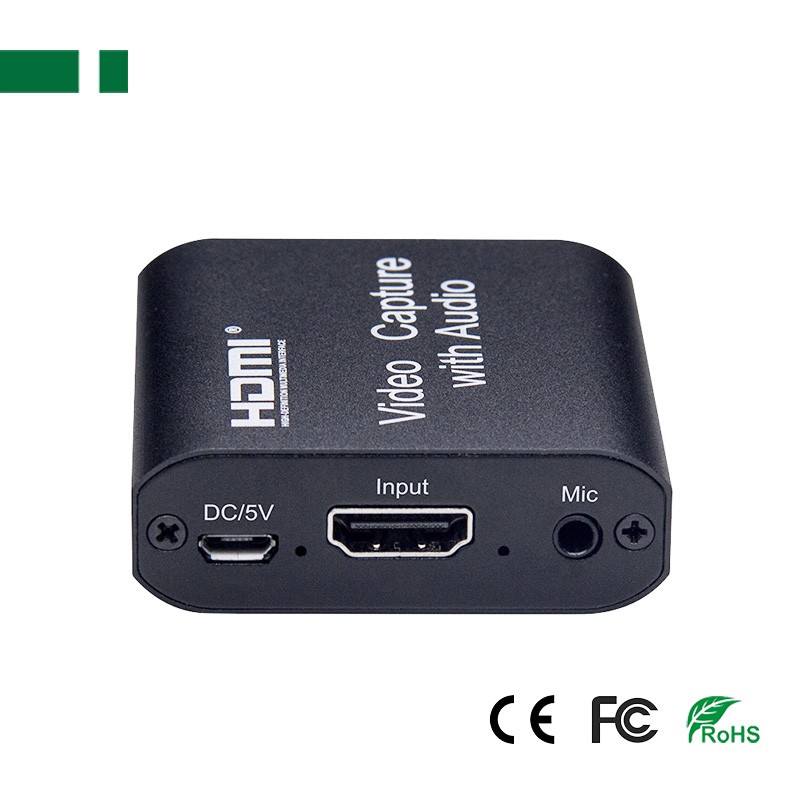

CHC-242A HDMI Video Capture with loop

HDMI to USB 2.0 Video Capture, Support HDMI loop output and audio
Features:
* Support HDMI loop out;
* Support input max resolution 4K;
* Support output max resolution 1080P;
* Support microphone audio input, 3.5 stereo output

* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, etc;
* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Compact and portable.
* No external power supply, compact size and easy to carry.This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

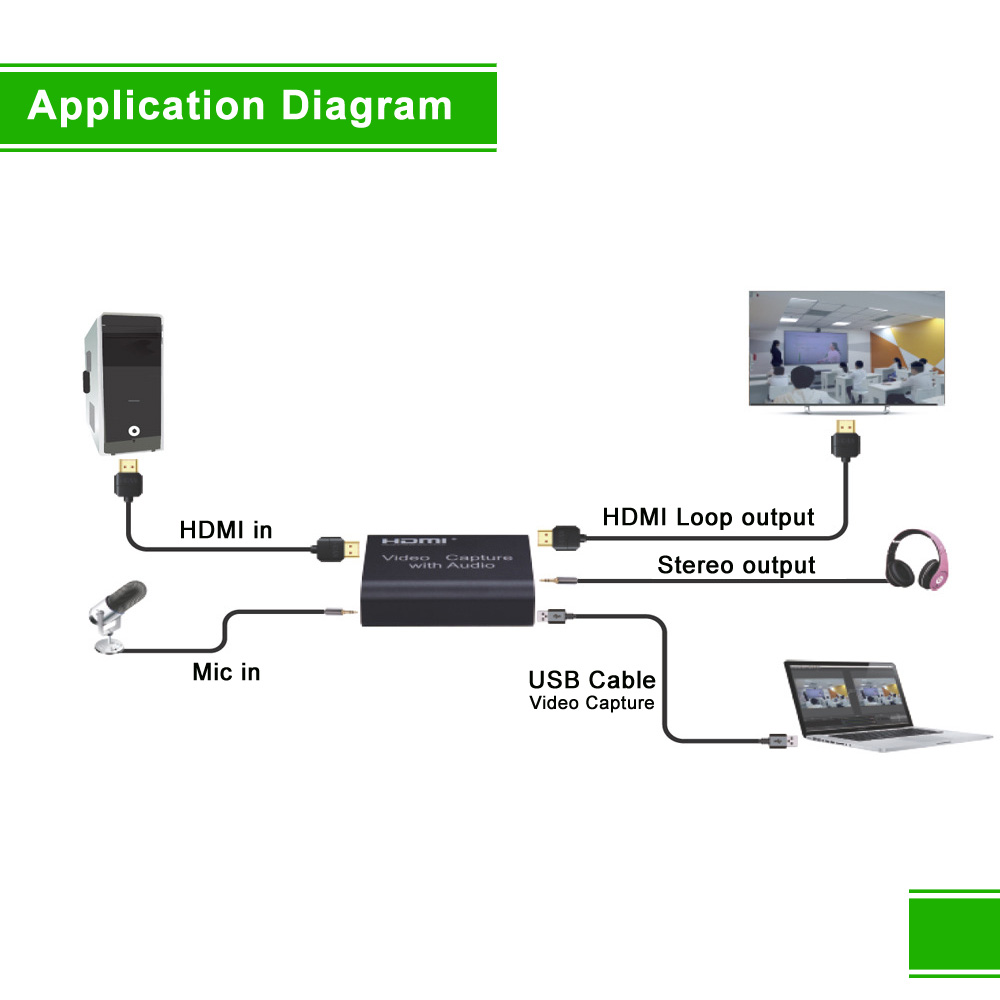

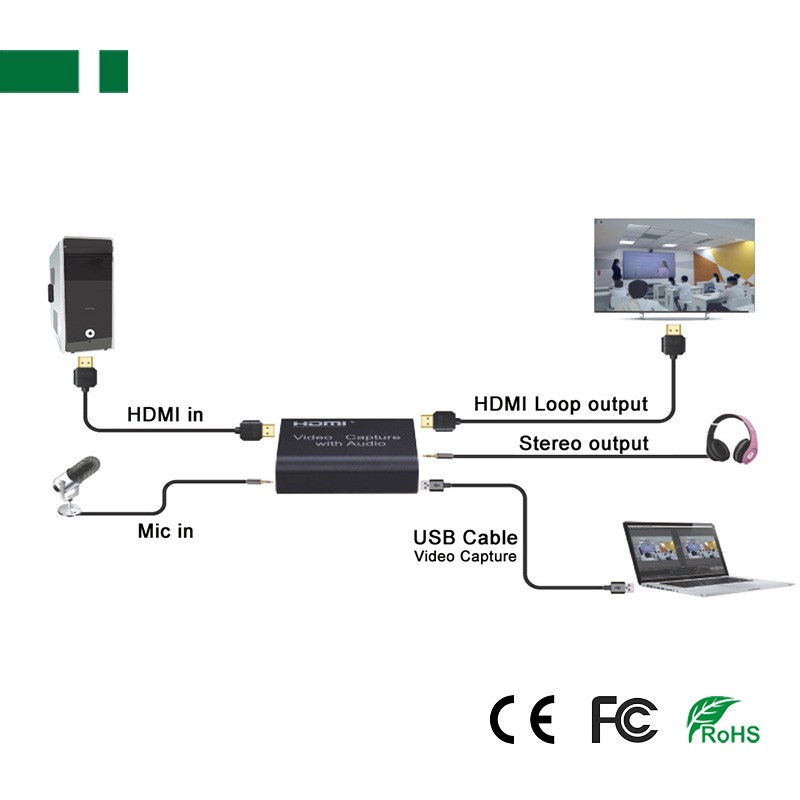

Connection operation:
1: Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI Cable

2: Plug the USB male header of the USB capture card into the USB port of the computer
3: Acquisition operation steps (OBS): Open the software → add a new source → select 'video capture device' → set the screen size →Select 'Studio Mode' (dual window) → click 'Start Recording'

as shown in the example below
1. Add a new source and select 'Video Capture Device'
2. Set the screen size
3. Select 'Studio Mode' (dual window) and the above settings are completed.

Note: Computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM
Package accessories:
1. Capture card
2. User Manual (English)
3. USB cable
