Water-Proof Power Supply

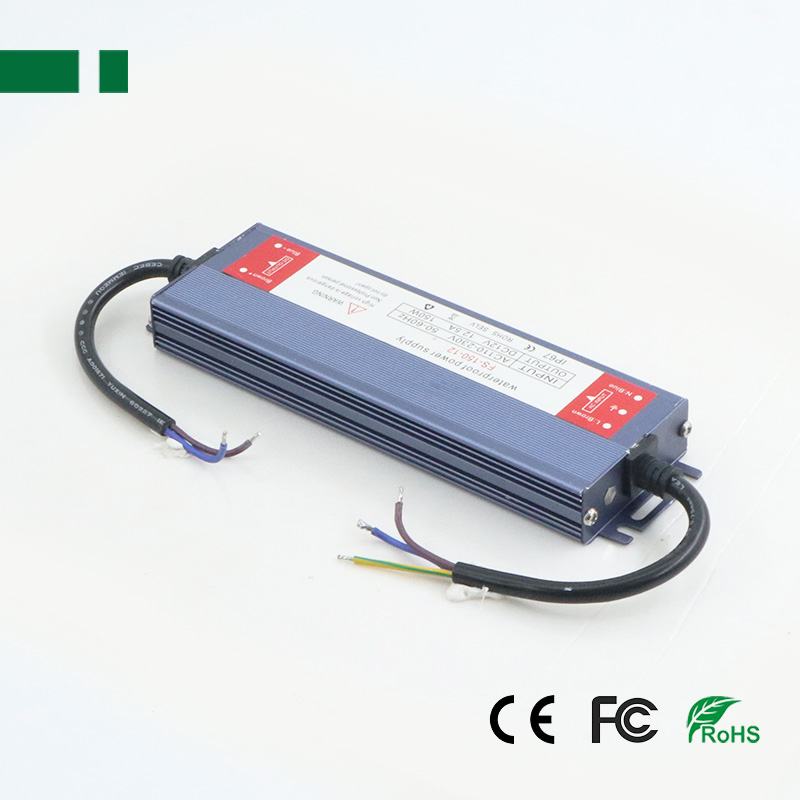

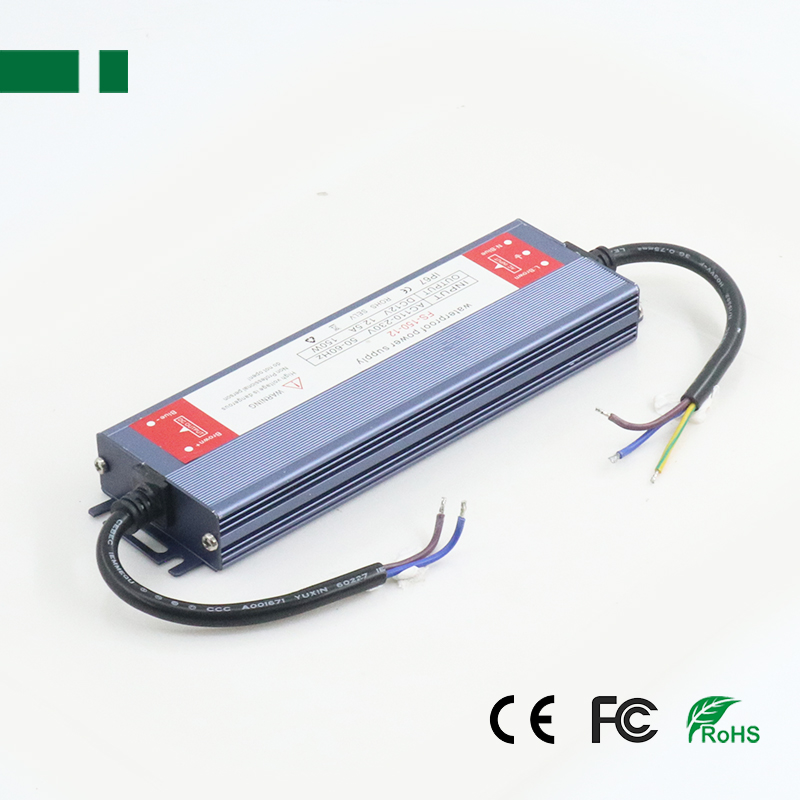

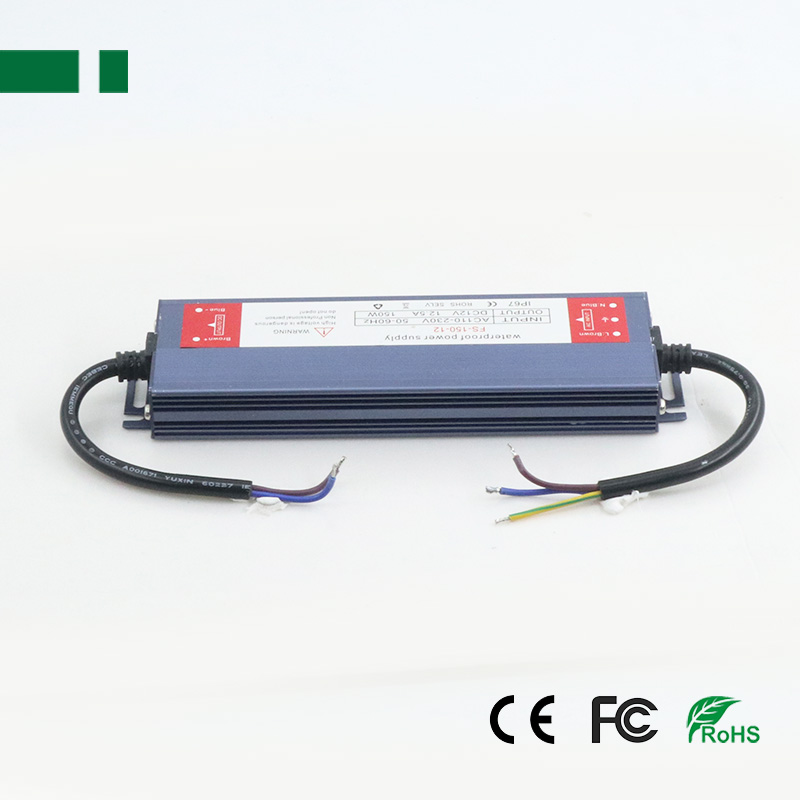

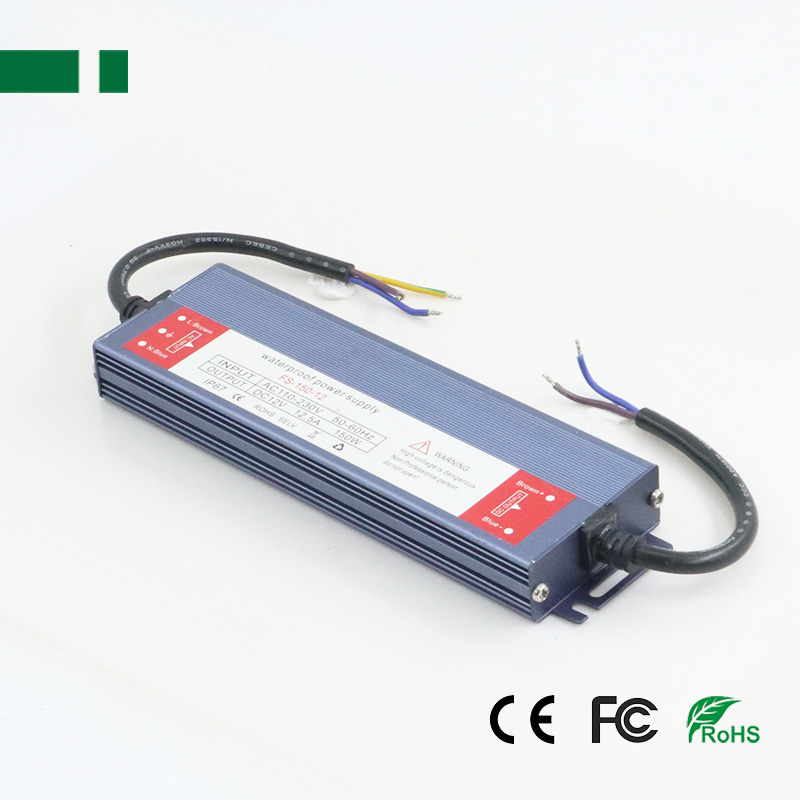

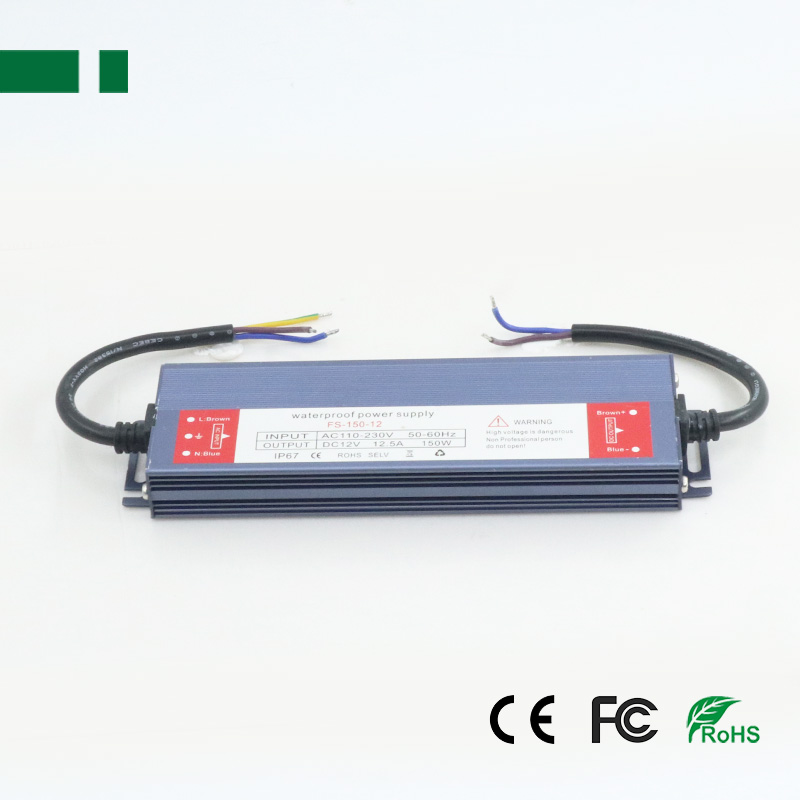

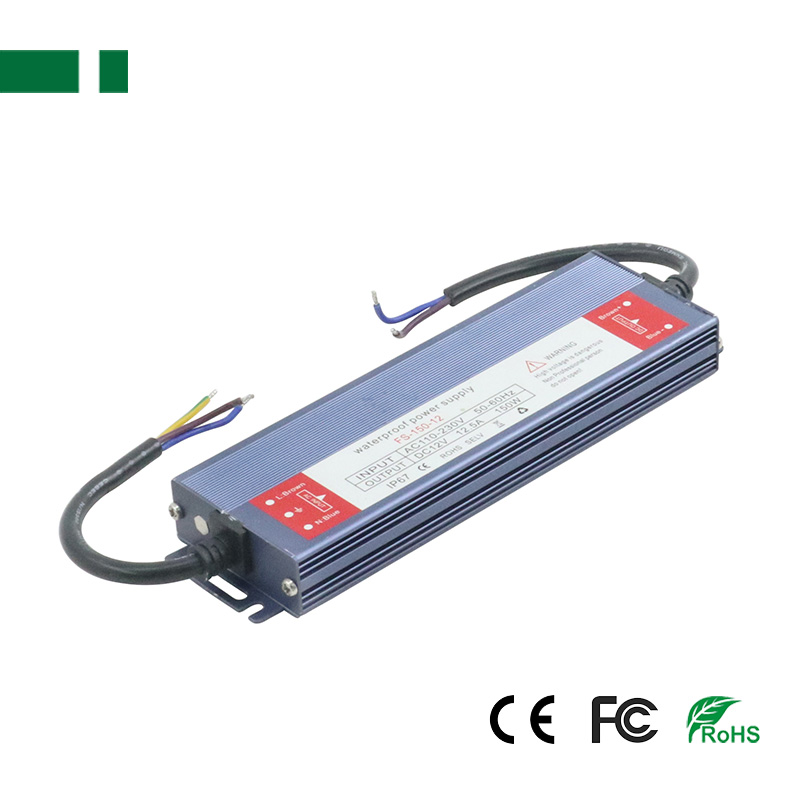

CFS-150-12 150W Water-proof Power Supply

150W Water proof Power Supply
Input voltage range: 110~240VAC
Waterproof grade IP65 or IP67
DC12V and DC24V optional
Product description: Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.
INQUIRY EMAIL

Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.
Power Supply with a wide range of options available to suit your design parameters such as variable AC Input Voltage, DC output voltage variations, connectorization options to match system needs, connectors, and custom chassis options available upon request.

Features:

1. 150W Single Output Water-proof Power Supply
2. Output voltage & current: DC12V 12.5A
3. Input voltage range: 110~240VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);

DC12V-DC24V Waterproof AC-DC power supply for LED Lightbox
More Model	DC Output	Input Voltage	Input Current	Dimension	Weight
CFS-60-12	DC12V 5A 60W	110~240VAC	0.56A/115V, 0.28A/230V	1554420mm	260g
CFS-100-12	DC12V 8.3A 100W	110~240VAC	0.88A/ 115V, 0.44A/ 230V	1805420mm	380g
CFS-150-12	DC12V 12.5A 150W	110~240VAC	1.34A/115V, 0.67A/230V	2255420mm	460g
CFS-200-12	DC12V 16.7A 200W	110~240VAC	1.8A/115V, 0.9A/230V	2256530mm	800g
CFS-300-12	DC12V 25A 300W	180~240VAC	1.1A/230V	2357636mm	1050g
CFS-400-12	DC12V 33.3A 400W	180~260VAC	1.8A/230V	2557636mm	1220g

Specification:

Model		CFS-150-12	CFS-150-24
Output	DC output Voltage	12V±5%	24V±5%
	Output Current Range	0-12.5A	0-6.25A
	Wave and Noise	120mVp-p
	DC output Power	150W
	Efficiency	0.85
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	110~240VAC 50-60Hz
	Input Current	1.34A/115V, 0.67A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 36A/ 230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle, Period for 60min, EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
	Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other	Dimension	2255420mm (LWH)
	Weight	0.46kg
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure,O/P-FG: Output and enclosure
