Female-Male Optic Adapter

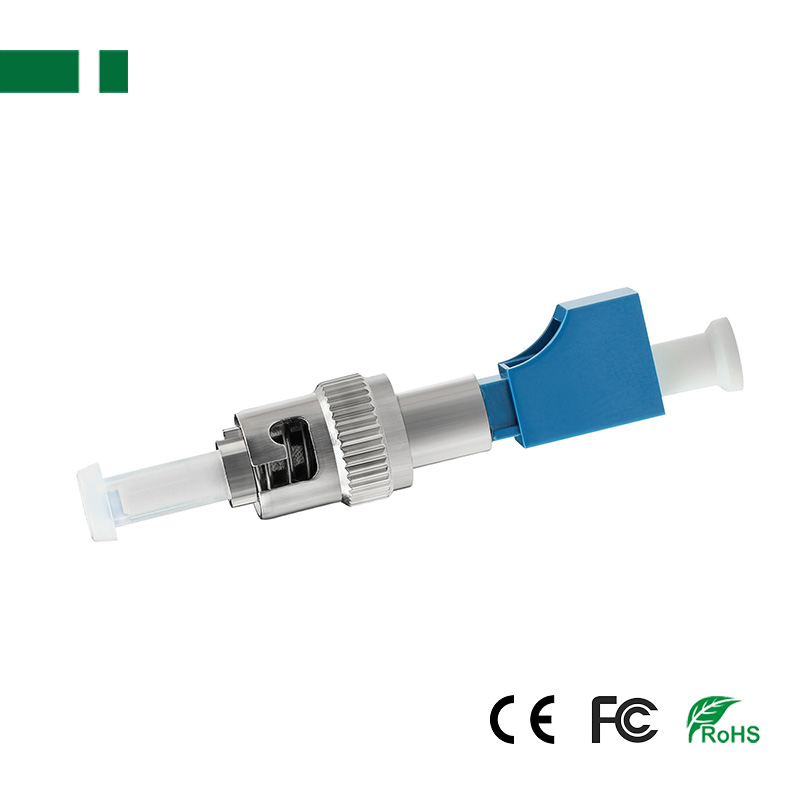

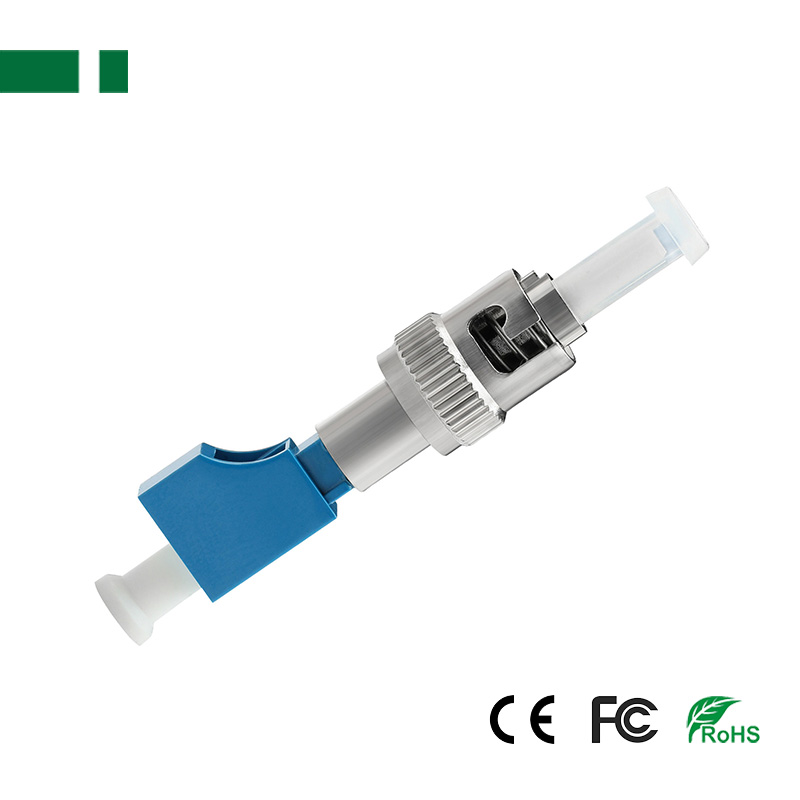

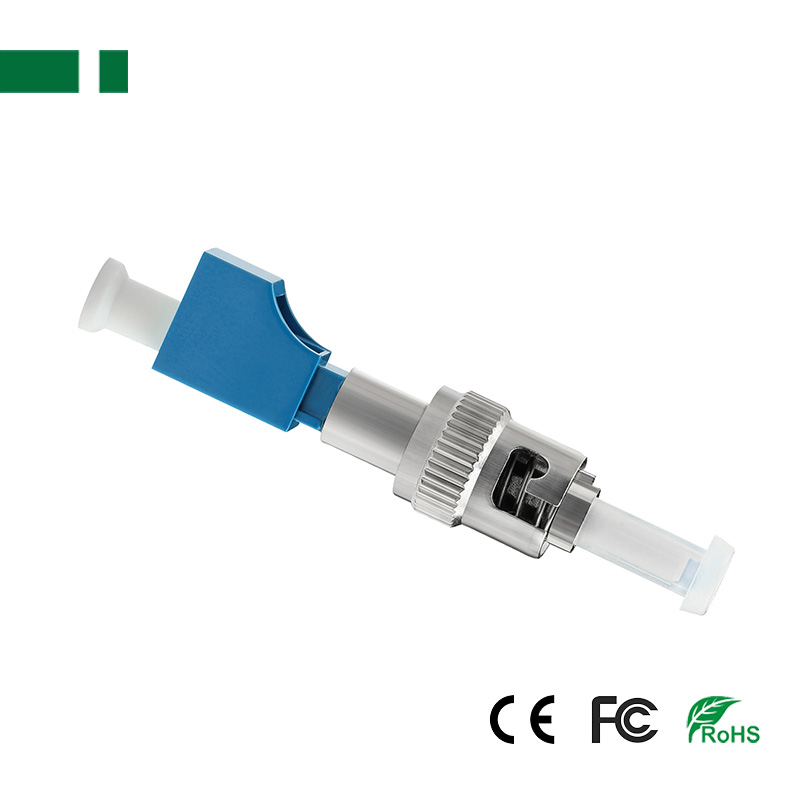

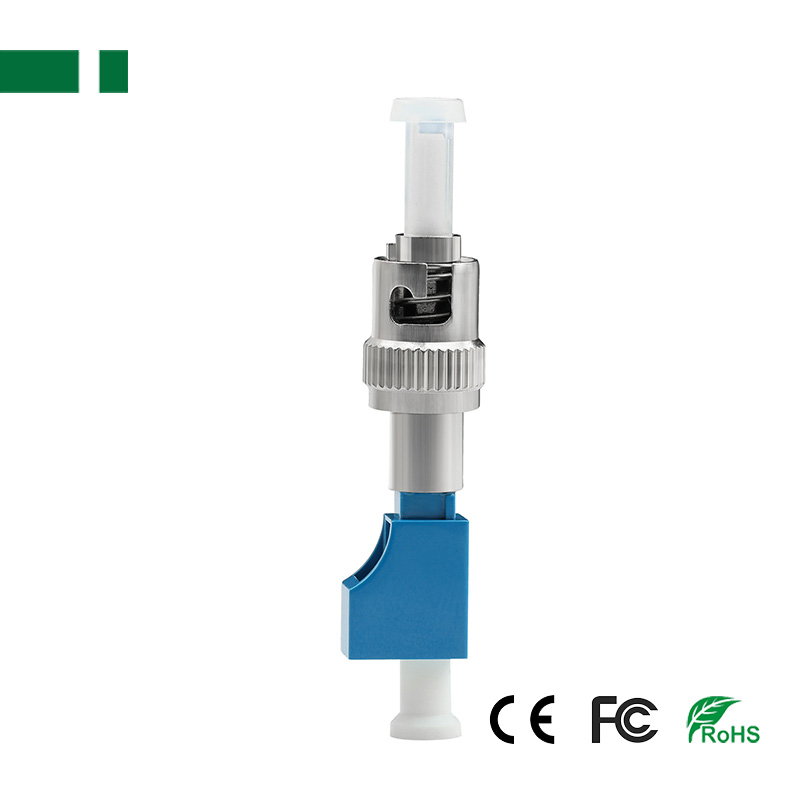

CFC05-STUM-LCUF-S ST Male to LC Female Fiber Optic UPC Single-mode 9/125 Adapter

CFC05-STUM-LCUF-S ST Male to LC Female Fiber Optic UPC Single-mode 9/125 Adapter

ST Male to LC Female hybrid adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
INQUIRY EMAIL

ST Male to LC Female Fiber Optic UPC Single-mode 9/125 Adapter

Description:
ST Male to LC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts ST connector to LC connector, Variable ST interface conversion LC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

ITEM	ST UPC to LC UPC Connector Fiber Optic Adapter
Model	CFC05-STUM-LCUF-M1	CFC05-STUM-LCUF-M2	CFC05-STUM-LCUF-S
Connector A	ST Male UPC
Connector B	LC Female UPC
Mode	Multi-mode 62.5/125	Multi-mode 50/125	Single-mode 9/125

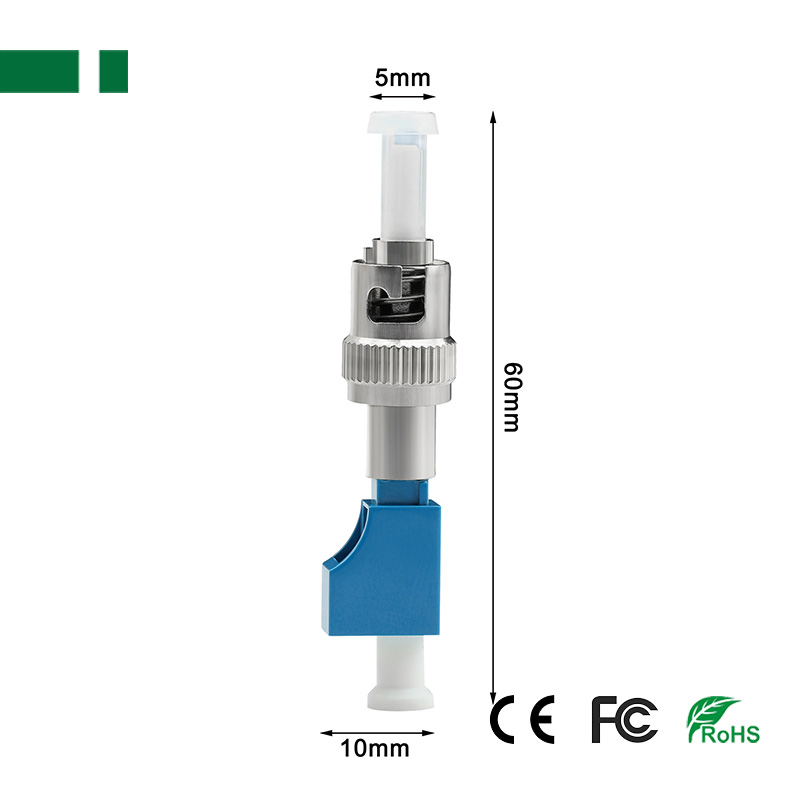

Dimension	60*10mm
Net Weight	5.7g
Housing	Metal, Ceramic
Insert Loss	1310nm<0.3dB, 1550nm<0.3dB
Return Loss	1310nm≥50dB, 1550nm≥50dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
