Female-Male Optic Adapter

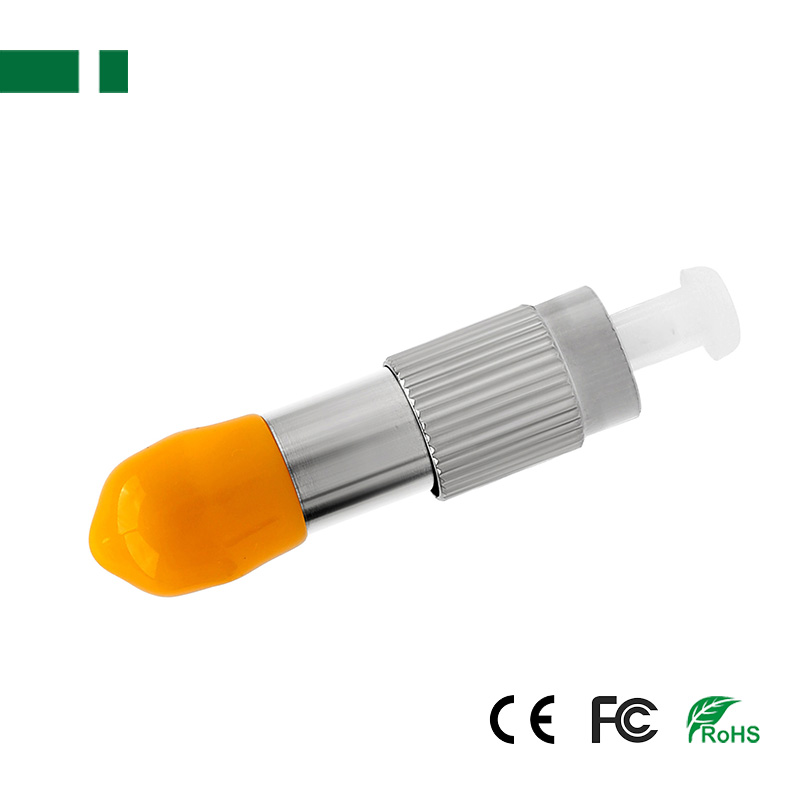

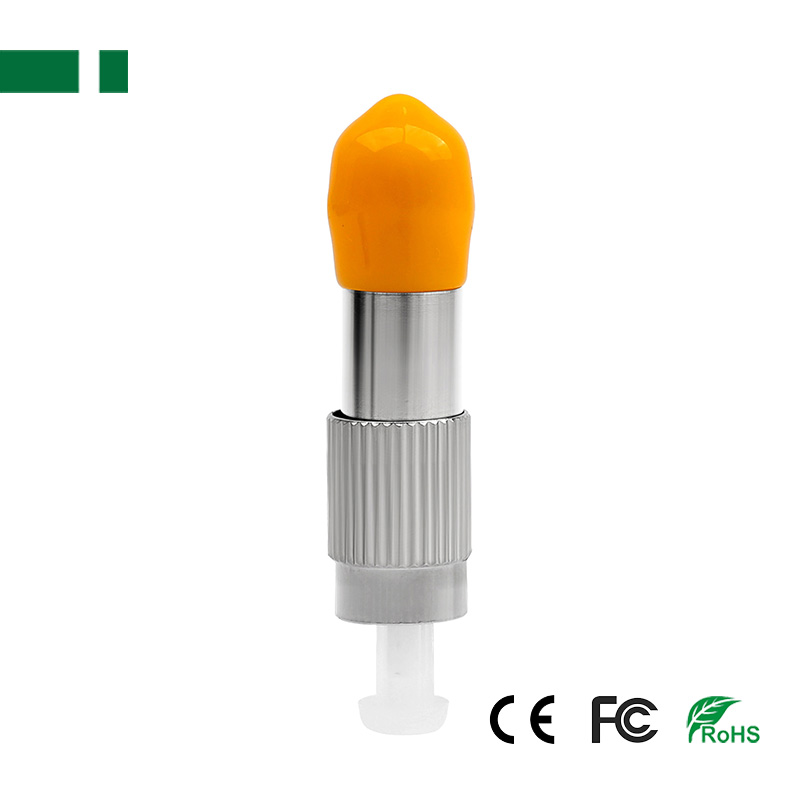

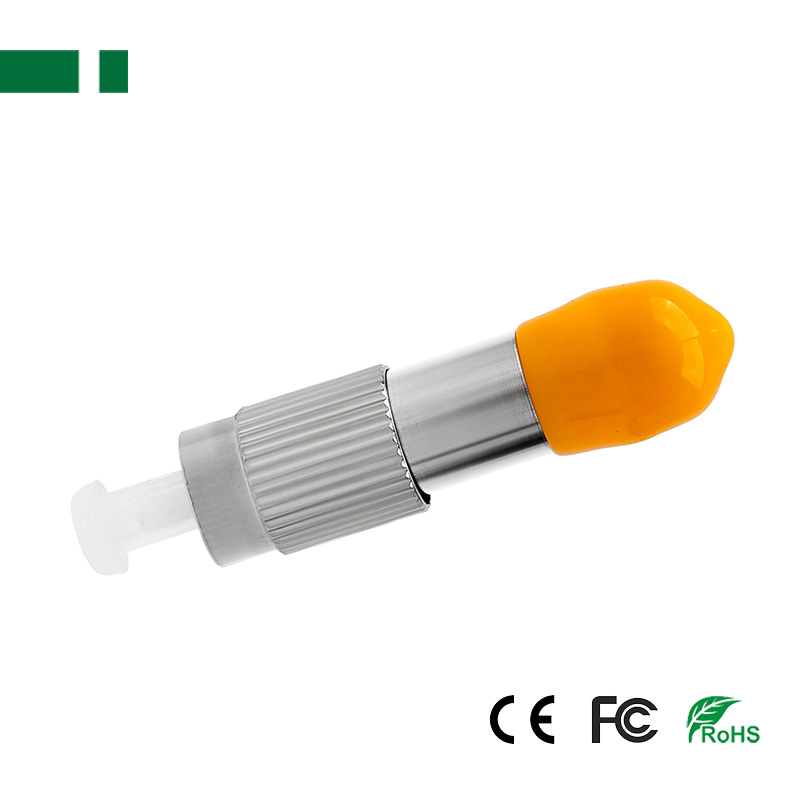

CFC03-FCUM-STUF-S FC Male to ST Female Fiber Optic UPC Single-mode 9/125 Adapter

CFC03-FCUM-STUF-S FC Male to ST Female Fiber Optic UPC Single-mode 9/125 Adapter

FC Male to ST Female hybrid adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
INQUIRY EMAIL

FC Male to ST Female Fiber Optic UPC Single-mode 9/125 Adapter

Description:
FC Male to ST Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts FC connector to ST connector, Variable FC interface conversion ST interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

ITEM	UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter

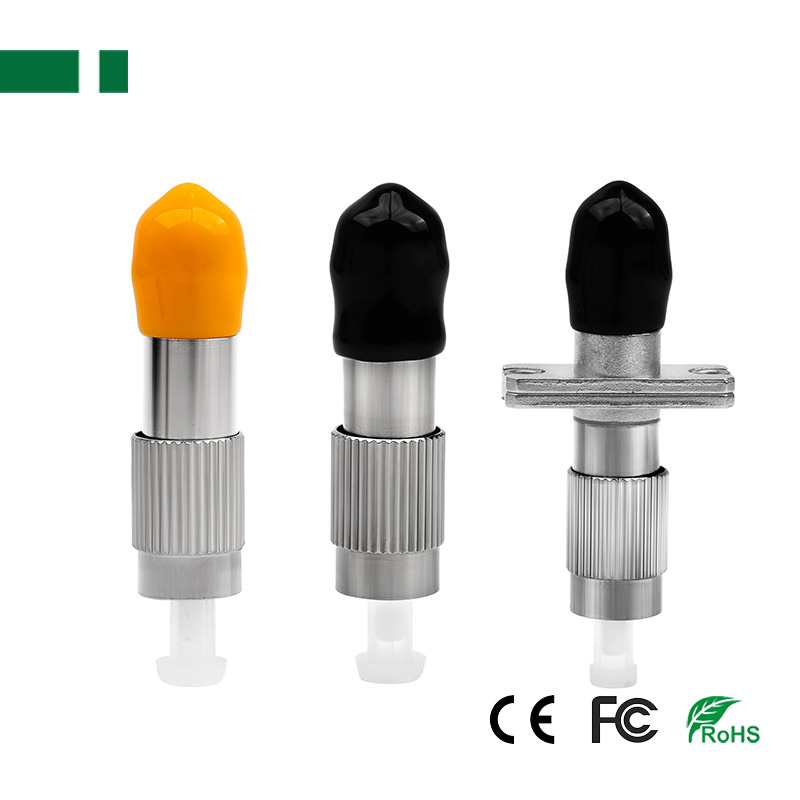

Model	CFC03-FCUM-STUF-1M	CFC03-FCUM-STUF-2M	CFC03-FCUM-STUF-S
Connector A	FC Male UPC
Connector B	ST Female UPC
Mode	Multi-mode 62.5/125	Multi-mode 62.5/125	Single-mode 9/125

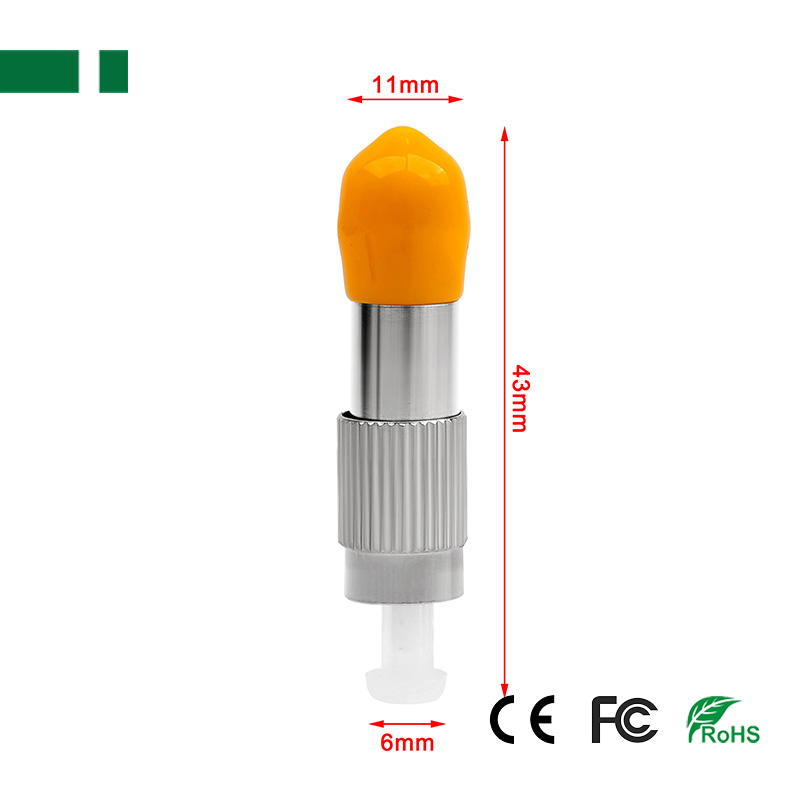

Dimension	42116mm	49115mm	43116mm
Net Weight	10g
Housing	Metal, Ceramic
Insert Loss	1310nm<0.3dB, 1550nm<0.3dB
Return Loss	1310nm≥50dB, 1550nm≥50dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
