Optic Fiber Protection Box

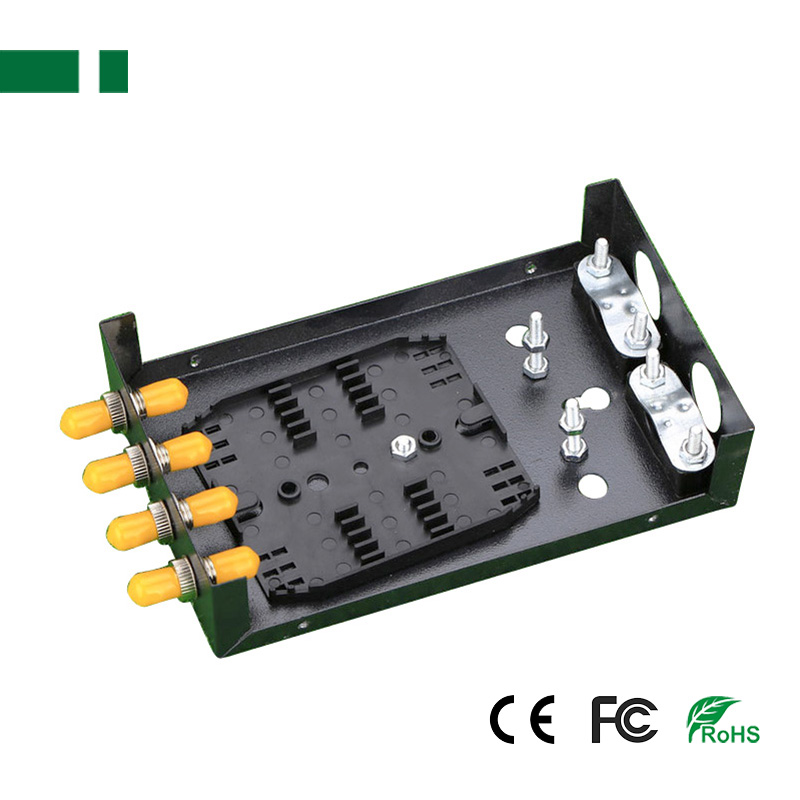

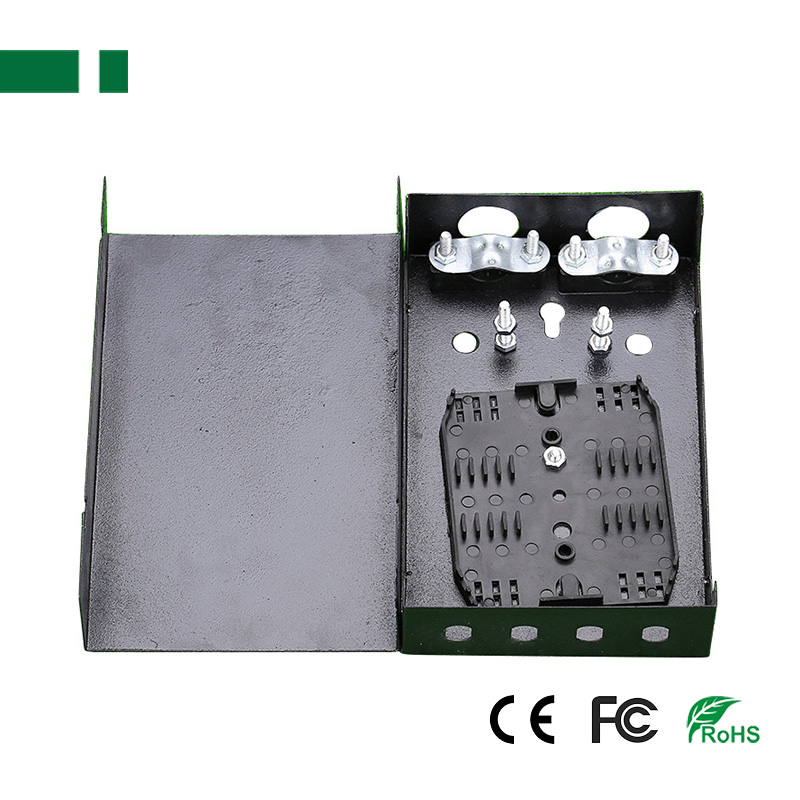

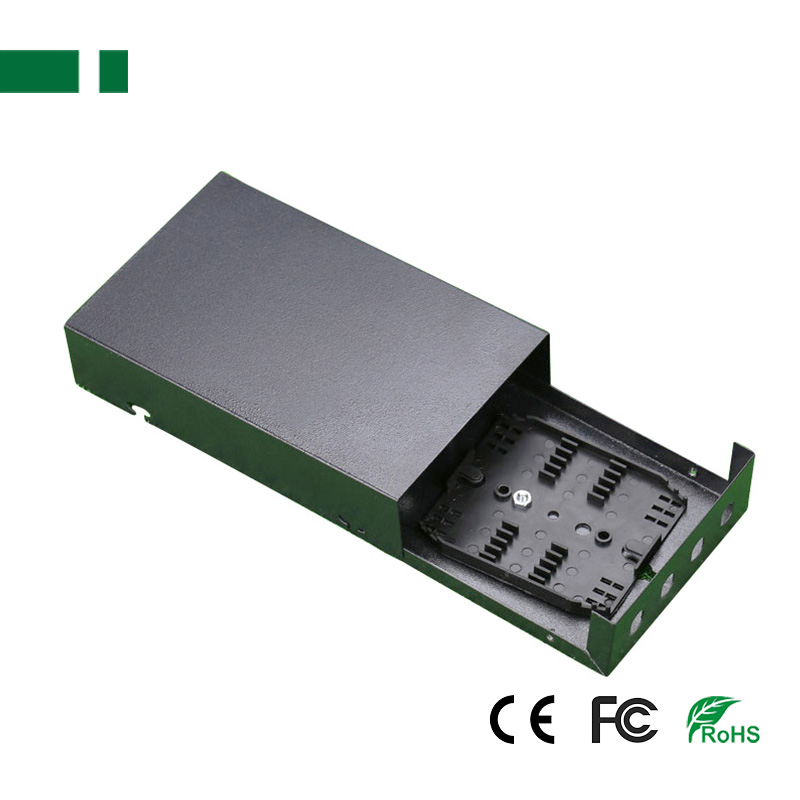

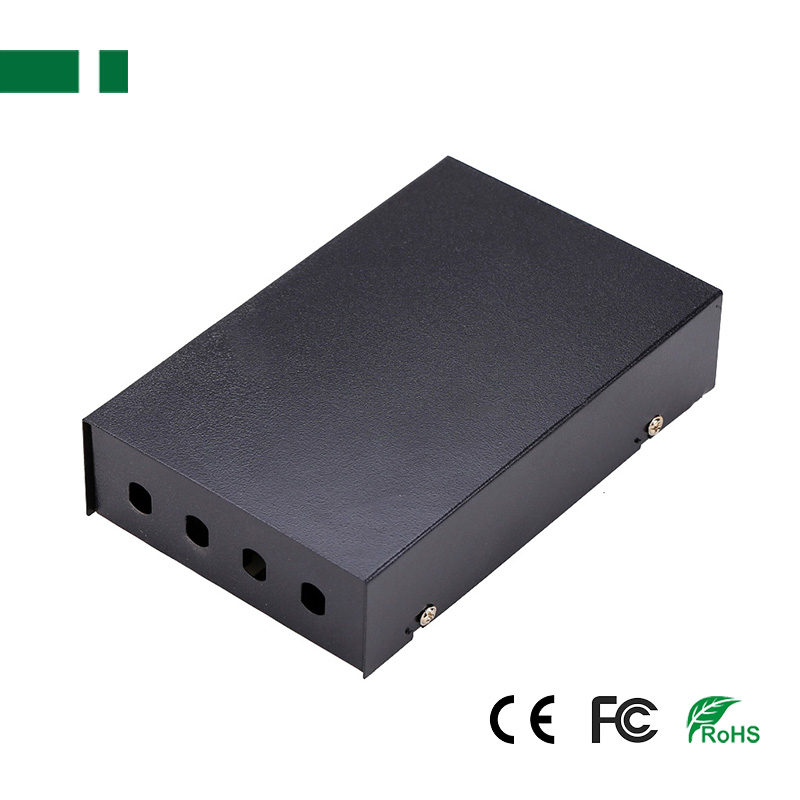

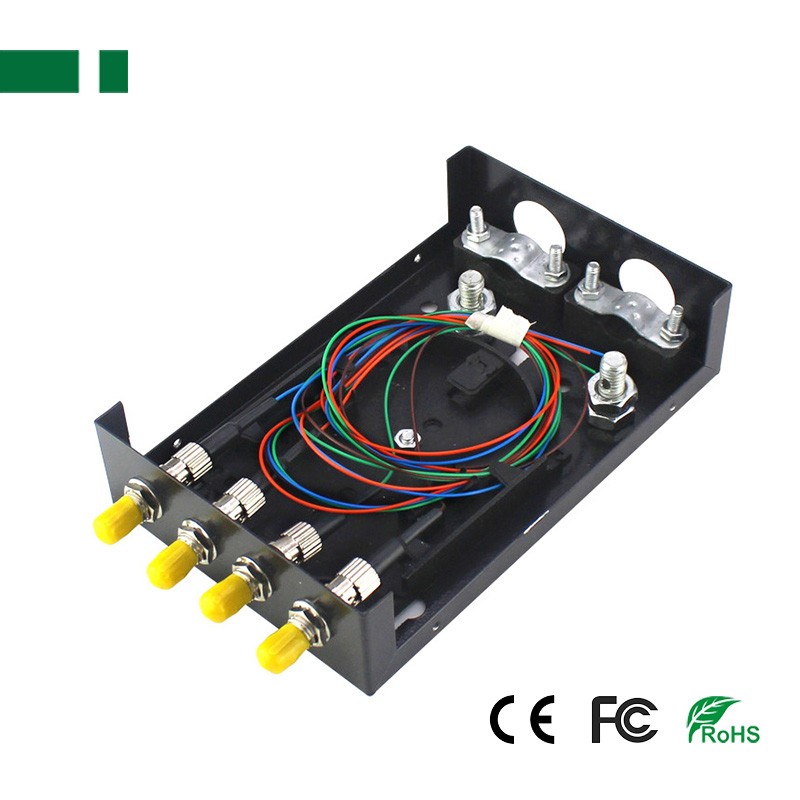

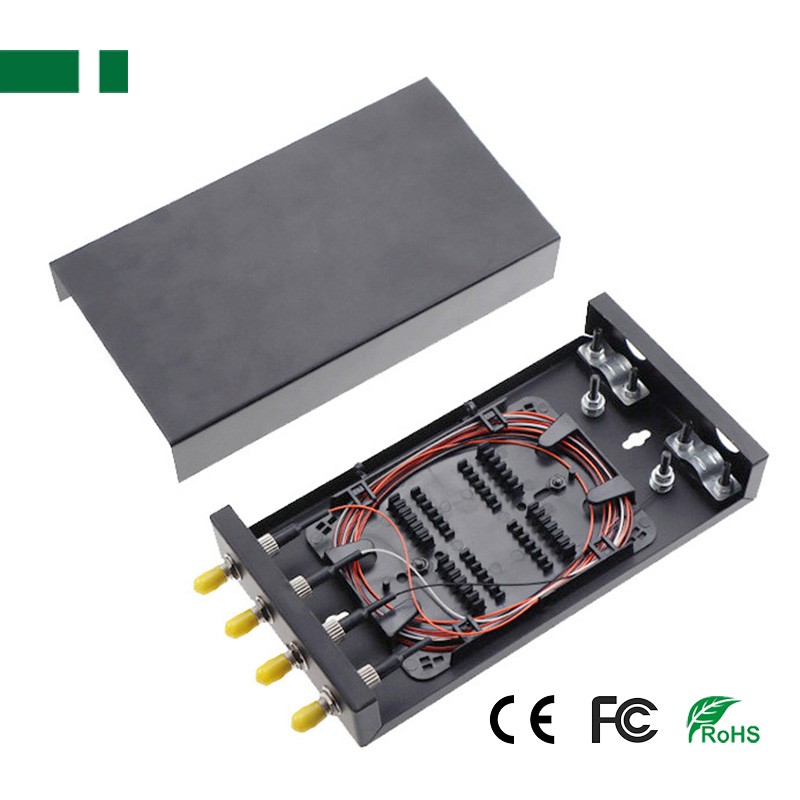

CFB-104C/ST 4 Ports ST Fiber Optic Box
- 4 Ports ST Fiber Optic Box
- Material of box: SPCC.
- Cable gland: size for 5mm to 10mm cable

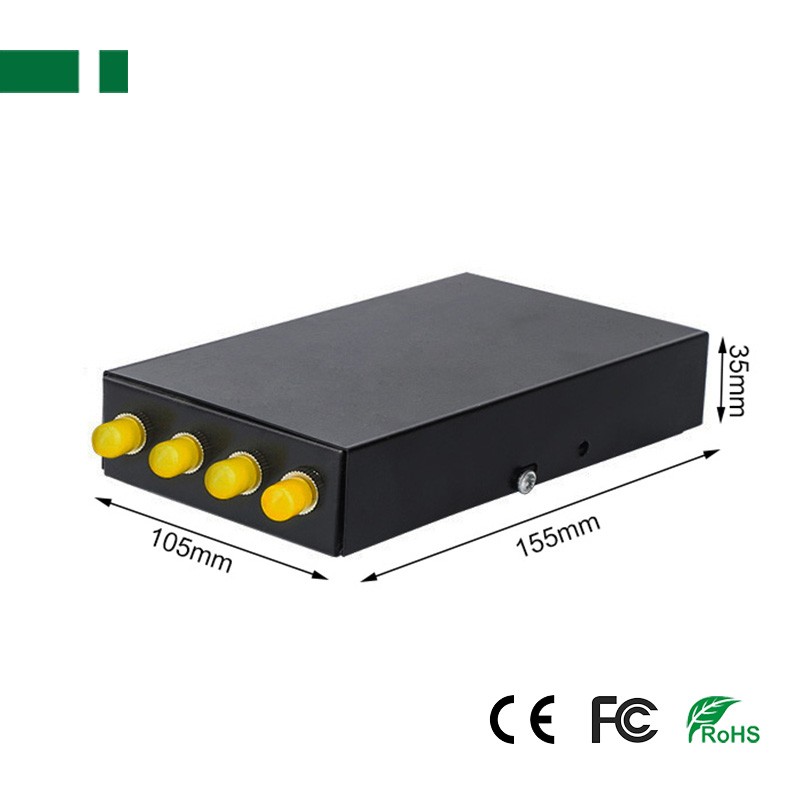

- Size: 155*99*36mm
- Product description: FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
4 Ports ST Fiber Optic Termination Desktop Type Box
Description:
FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Feature:
1. Port of the box: 4 ports with ST type.
2. Cable gland: size for 5mm to 10mm cable.
3. Splice tray: 4 cores.
4. Material of box: SPCC.
5. Good properties of dust, and moisture proofing.
6. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
7. Suitable for SC、FC and LC duplex adaptor and pigtail.
Description:
FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Feature:
1. Port of the box: 4 ports with ST type.
2. Cable gland: size for 5mm to 10mm cable.
3. Splice tray: 4 cores.
4. Material of box: SPCC.
5. Good properties of dust, and moisture proofing.
6. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
7. Suitable for SC、FC and LC duplex adaptor and pigtail.
8. Suitable for indoor use.
Specification:
| 4 Ports Fiber Optic Termination Box | |||
| Model | CFB-104C/FC | CFB-104C/ST | CFB-104C/SC |
| Type | FC Interface | ST Interface | SC Interface |
| Fiber Type | Single Mode | ||
| Material | Thickening strengthens cold-rolled plates | ||
| Color | Black surface spray and frosted treatment | ||
| Material Thickness | 0.74±0.05mm | ||
| Temperature | minus -25℃~40℃ | ||
| Humidity | ≤85% (30℃) | ||
| Insulation Resistance | >2*104MΩ | ||
| Electrical Strength | <15KV | ||
| Size | 155*99*36mm | 155*99*36mm | 157*89*30mm |
| Weight | 205g | ||
