CES-G0202SC 2*1000Mbps Industrial Ethernet Switch with SC Port

Description:
The Industrial Ethernet Switch can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a eco-friendly low power industrial Ethernet switch.

Features:

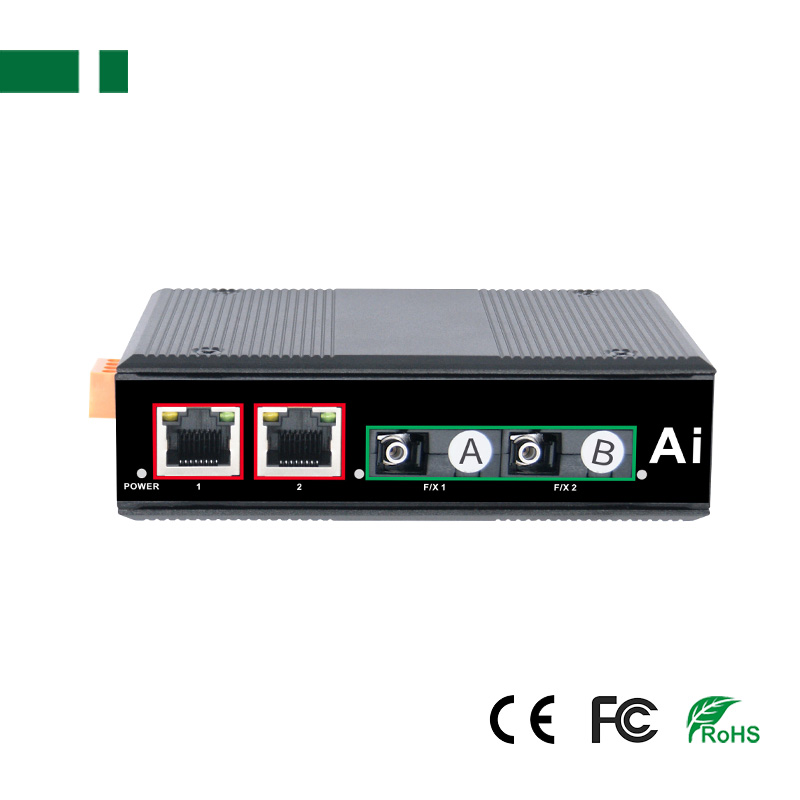

1. Support 2*10/100/1000Mbps Ethernet port and 2* 10/100/1000Mbps SC port;
2. The 1st Port support extend to 250 meters;
3. Ethernet port supports 10/100/1000Mbps self-adaptation;
4. Support IEEE 802.3, IEEE 802.3u, IEEE802.3x Standard;
5. Support ring network and network storm protection;
6. Support the AI watchdog
7. DC12V-55V Dual Power input.
8. Surge Protection: General 6KV, Differential 2KV; ESD 15KV(Air), 8KV (Contact);

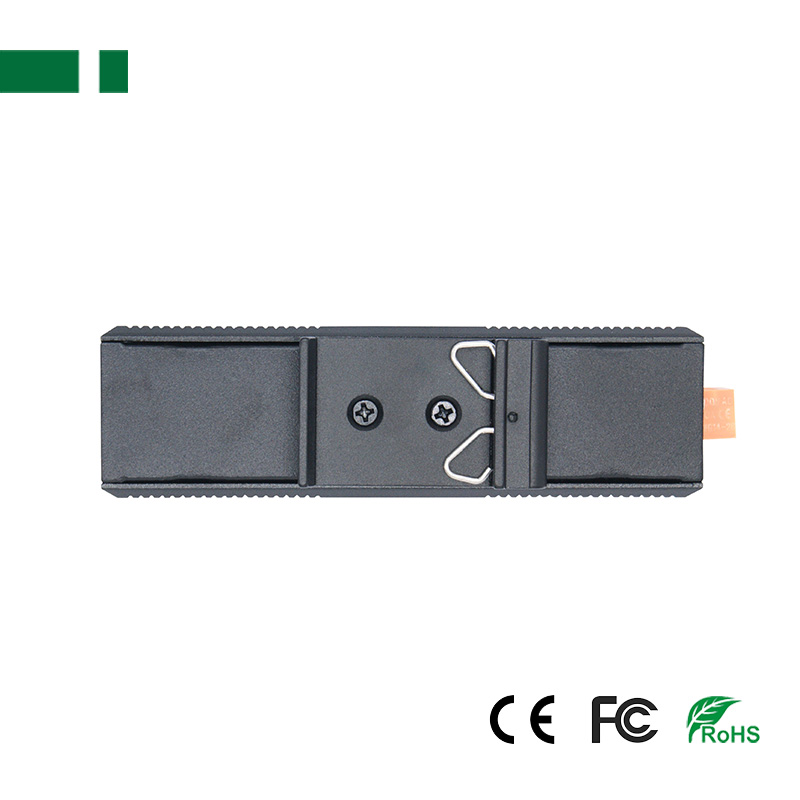

9. High strength iron shell, DIN35 Rail installation

Specification:

	Model	CES-0202SC	CES-G0202SC	CES-G0202E
Network Ports	POE Ethernet Port	N/A
	Ethernet Port	2*10/100MbpsRJ45	2*10/100/1000Mbps RJ45	2*10/100/1000Mbps RJ45
	Uplink Port	N/A
	SFP Port	N/A	N/A	2* 10/100/1000Mbps SFP
	SC Port	2* 10/100Mbps SC, 20KM	2* 10/100/1000Mbps SC, 3KM	N/A
Standard	Network Protocol	IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3x (Flow Control)
	POE Protocol	N/A
	POE Feature	N/A
	Forwarding Mode	Store-and-Forward
	Bandwidth	1.0Gbps	10Gbps	10Gbps
	MTBF	100,000hours
General	Power Input	DC12V-55V Dual Power input

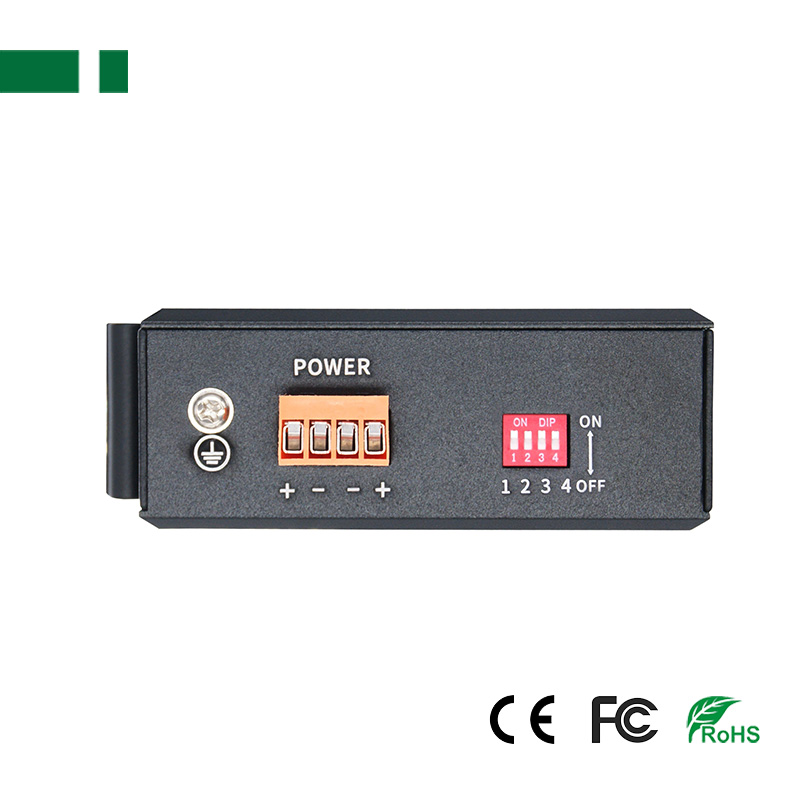

	Type of input	4-Pin Industrial Terminal (Block V1+, V1-,  V2+,  V2-)
	Network Medium	Cat5E/ 6/ 7/8 standardNetwork Cable
	Data Pin	1/2: +;3/6: -	1/2/4/5: +; 3/6/7/8: -	1/2/4/5: +; 3/6/7/8: -
	Power Pin	N/A
	Transmission Distance	1-2 Port: 250m/10Mbps	1st Port:250m/10Mbps	1st Port: 250m/10Mbps
	ESD	Air discharge: 15KV, Contact discharge: 8KV
	Anti-Thunder Level	Common mode:6KV, Differential mode: 2KV
	Industrial Standard	EMI: FCC Part 15 CISPR (EN55032) class A, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
	Humidity	Working: 10%~90%，Storage: 5%~90%，non-condensing
	Temperature	Working: -40~80°C, Storage: -40~85°C

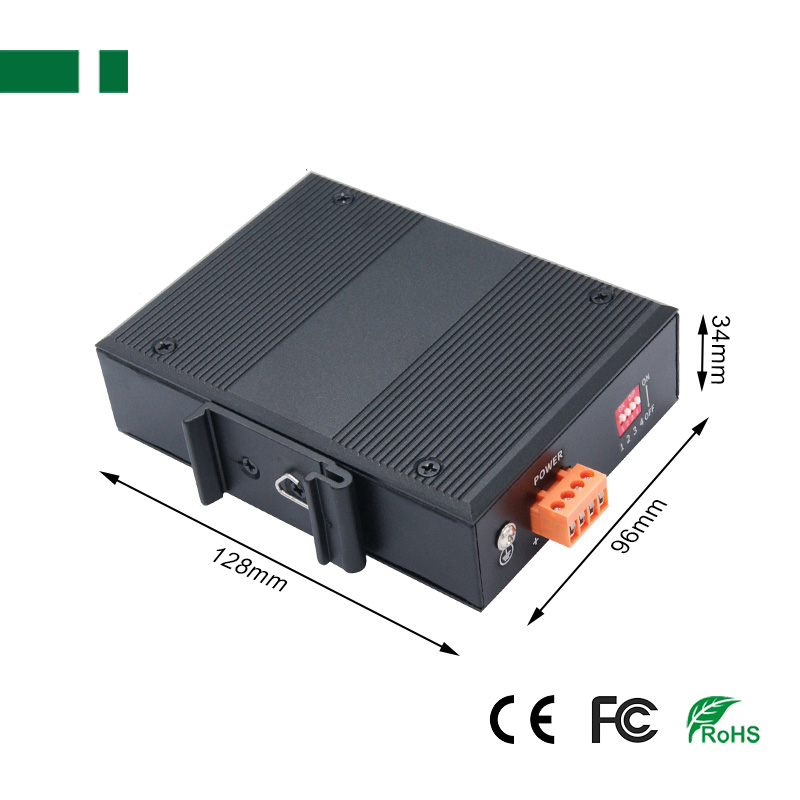

	Dimension	128*96*34mm (L×W×H), 0.385kg

Application:
1. Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.;
2. Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries;
3. Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications;
4. Real-time monitoring: simultaneous transmission of real-time control signals, images and data;
5. Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances.

Packing list:
Industrial Switch: *1pc;
User Manual: *1pc;
Certification: *1pc;
Pull-arm: *1pc.
