HDMI Switcher

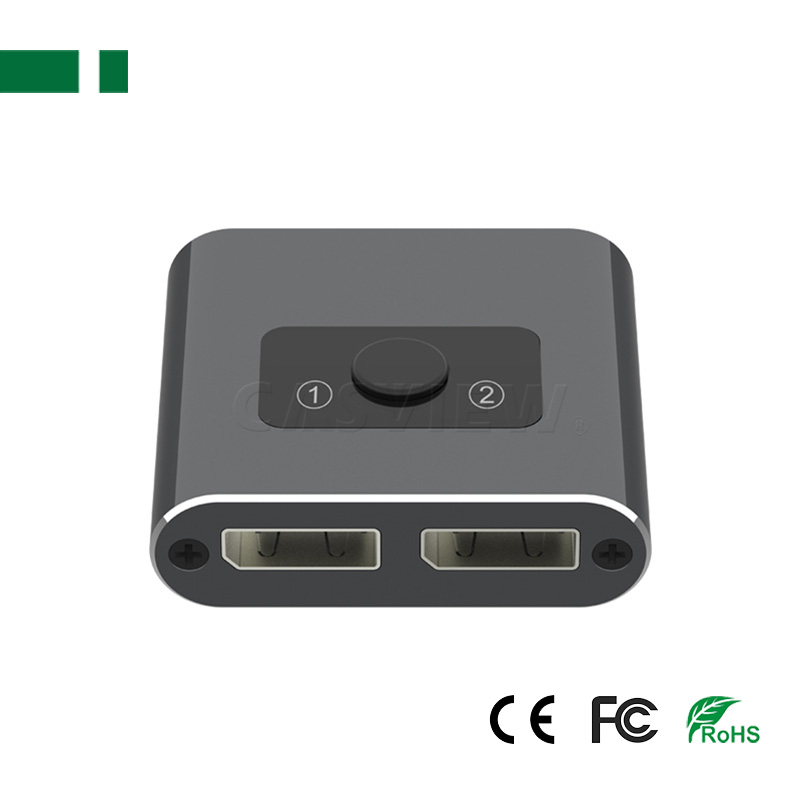

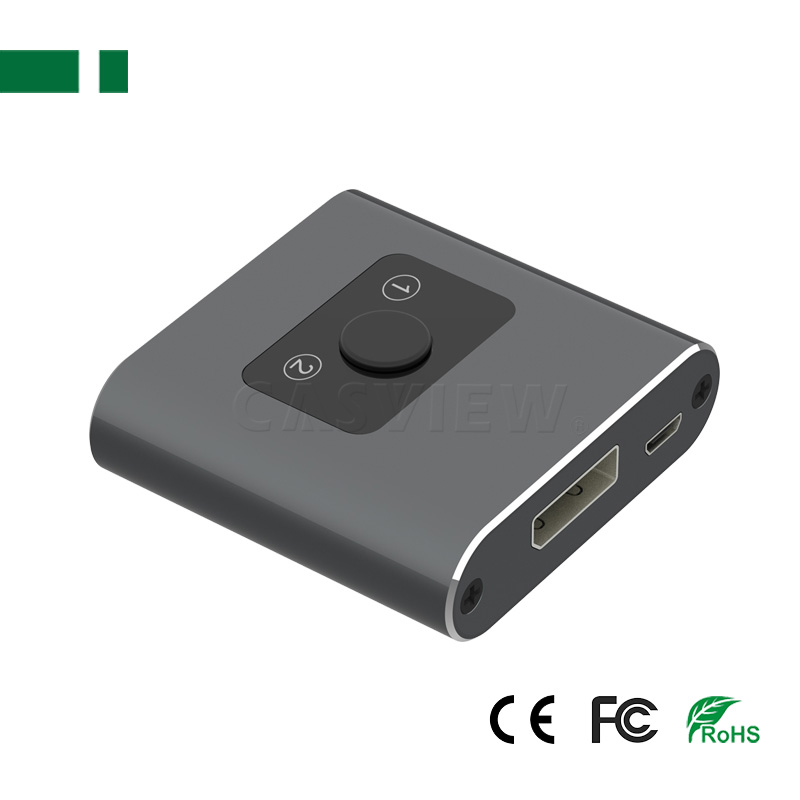

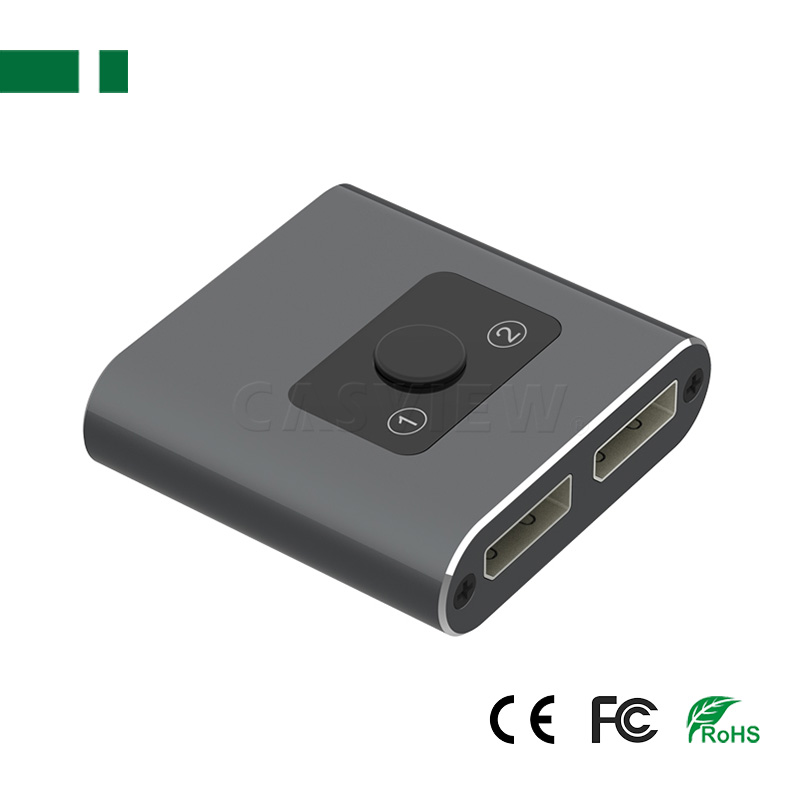

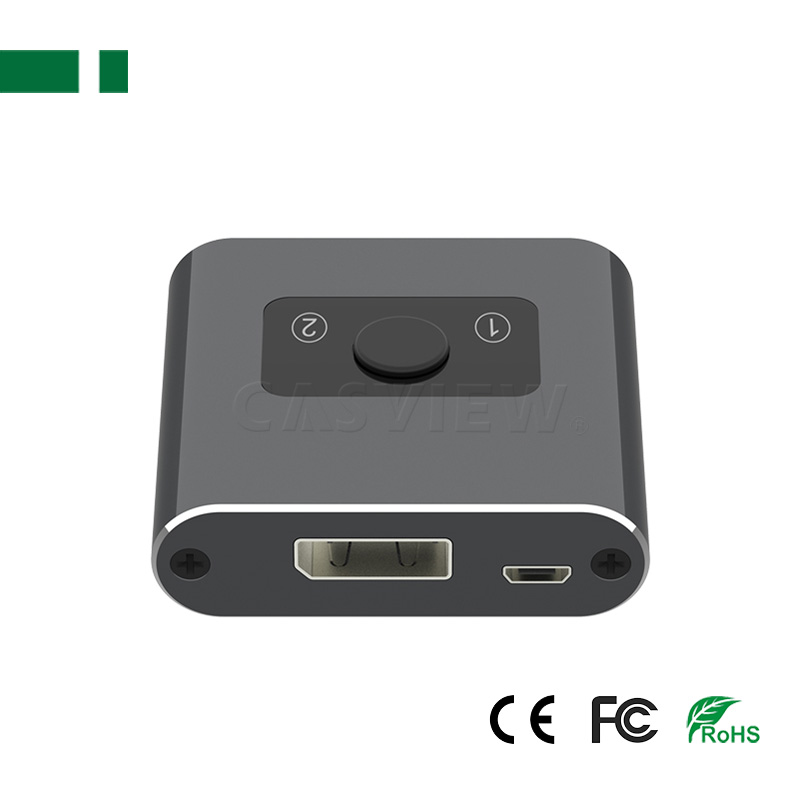

CDP-B102 4K DP Bi-Direction Switcher

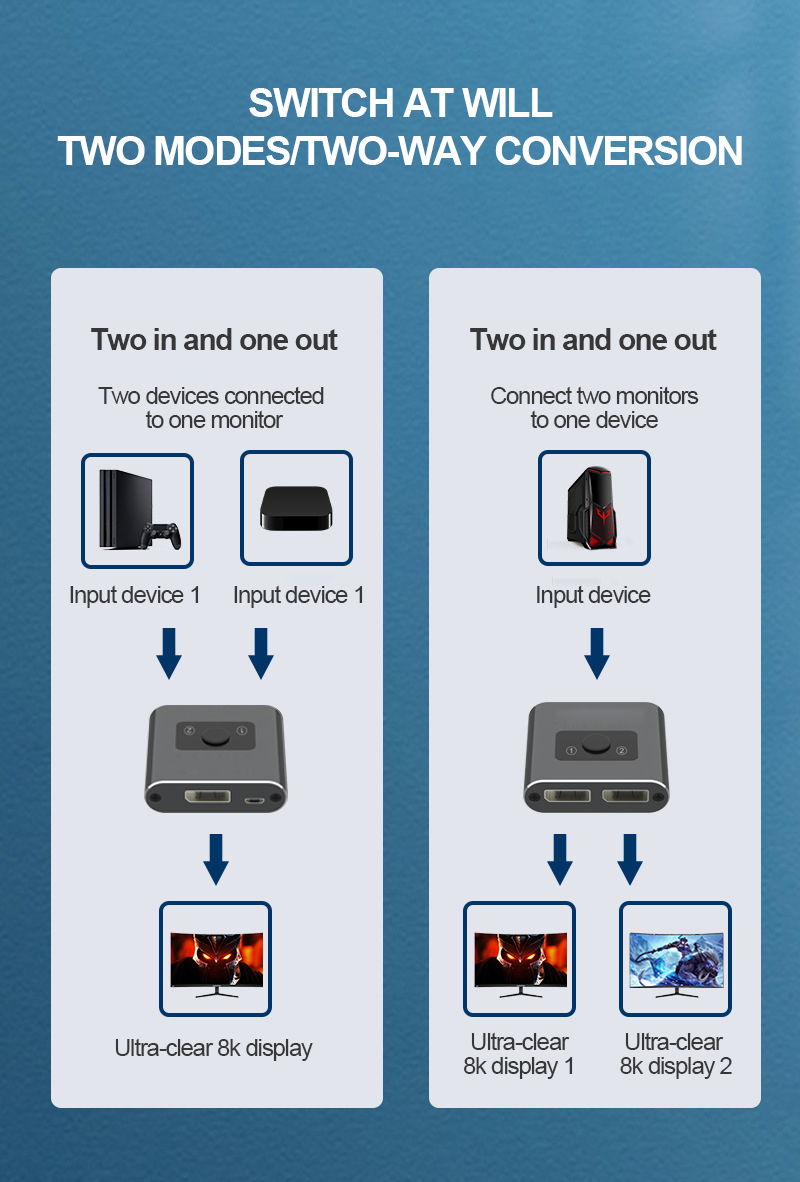

- 4K 2x1 DP Bi-Direction switcher
- 1 HDMI input with 2 HDMI output
- 2 HDMI input with 1 HDMI output
- Supports up to 4K@30Hz, 3840*2160@30Hz
- Product description: DP Switch is a product that can switch multi-group DP signals to one high definition display device such as HDTV by using manual push button.
3D Ultra HD 4Kx2K@60Hz DP Bi-Direction Switcher
Introduction:

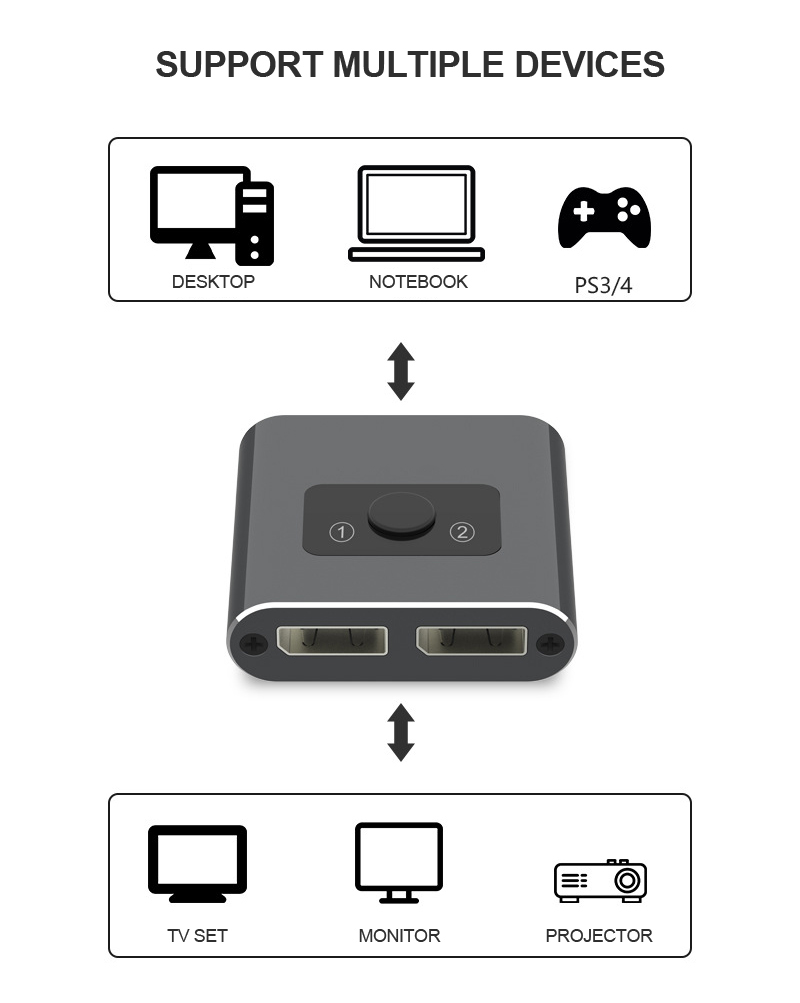

DP Switch is a product that can switch multi-group DP signals to one high definition display device such as HDTV by using manual push button.That can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.
Features:
1. Compliant with DP1.2
2. Support video format up to 4k*2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to 4k*2k@60Hz with 12bit YCBCR 4:4:4.
3. Support 3D frame sequential video format up to 1080p@60Hz.
4. Support high resolution VESA mode video format up to QSXGA@60Hz.
5. Support HDR and 18Gbps Signal Speed.
6. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
7. Extend the transmission distance and improve transmission signal.
8. Metal casing design and overall shielding without signal interference.
4.0 Technical parameters
Single Link Range--------------------------------------------------------------4096x2160
Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal---------------------------------------------------------5 Volts P-P(TTL)
Deep Color------------------------------------------------------------------------------48 bit
DP Version------------------------------------------------------------------------------DP1.2
Bandwidth---------------------------------------------------------------------Up to 600Mhz
Signal Speed-----------------------------------------------------------------Up to 18Gbps
The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M
The length of output cable-----------------------------------------------------------≤10M
The cable standard-----------------------------------------------------28AWG HDMI2.0
Vertical Frequency Range------------------------------------------------------------60Hz
Power Consumption(max.)-------------------------------------------------------0.5Watts
Operation Temperature-----------------------------------------------------------0℃-70℃
Net Weight------------------------------------------------------------------------------30g

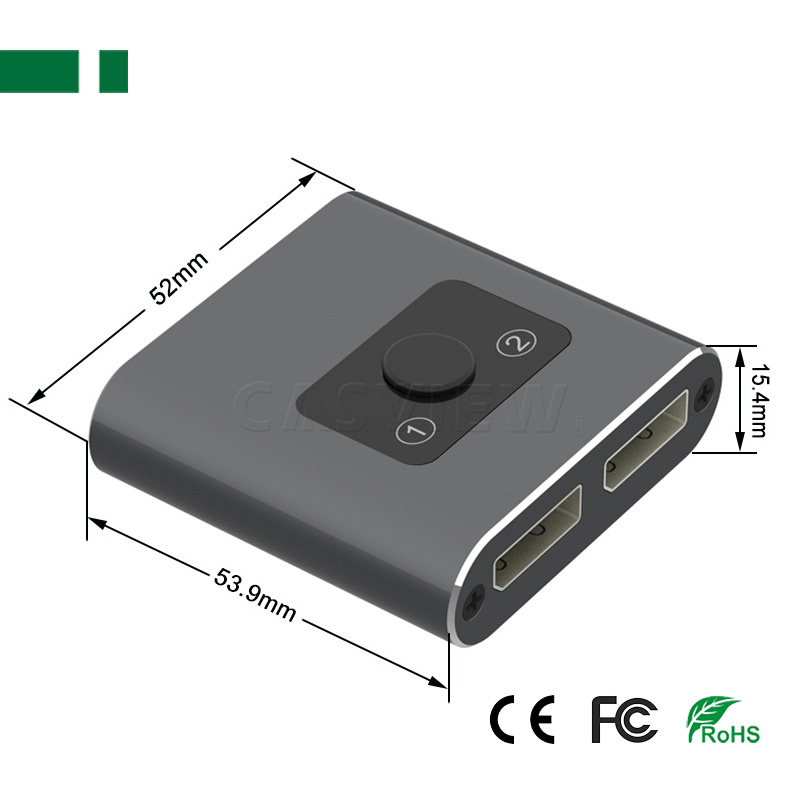

Dimension: -----------------------------------------------------53.9(L)x52(W)x15.4(H)mm
Packaging accessories:
1. DP Switch----------------------------------------------------------1 Pcs
2. USB Power Cable------------------------------------------------1 Pcs
Introduction:
DP Switch is a product that can switch multi-group DP signals to one high definition display device such as HDTV by using manual push button.That can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.
Features:
1. Compliant with DP1.2
2. Support video format up to 4k*2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to 4k*2k@60Hz with 12bit YCBCR 4:4:4.
3. Support 3D frame sequential video format up to 1080p@60Hz.
4. Support high resolution VESA mode video format up to QSXGA@60Hz.
5. Support HDR and 18Gbps Signal Speed.
6. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
7. Extend the transmission distance and improve transmission signal.
8. Metal casing design and overall shielding without signal interference.
4.0 Technical parameters
Single Link Range--------------------------------------------------------------4096x2160
Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal---------------------------------------------------------5 Volts P-P(TTL)
Deep Color------------------------------------------------------------------------------48 bit
DP Version------------------------------------------------------------------------------DP1.2
Bandwidth---------------------------------------------------------------------Up to 600Mhz
Signal Speed-----------------------------------------------------------------Up to 18Gbps
The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M
The length of output cable-----------------------------------------------------------≤10M
The cable standard-----------------------------------------------------28AWG HDMI2.0
Vertical Frequency Range------------------------------------------------------------60Hz
Power Consumption(max.)-------------------------------------------------------0.5Watts
Operation Temperature-----------------------------------------------------------0℃-70℃
Net Weight------------------------------------------------------------------------------30g
Dimension: -----------------------------------------------------53.9(L)x52(W)x15.4(H)mm
Packaging accessories:
1. DP Switch----------------------------------------------------------1 Pcs
2. USB Power Cable------------------------------------------------1 Pcs
