DC/ AC Power Cable

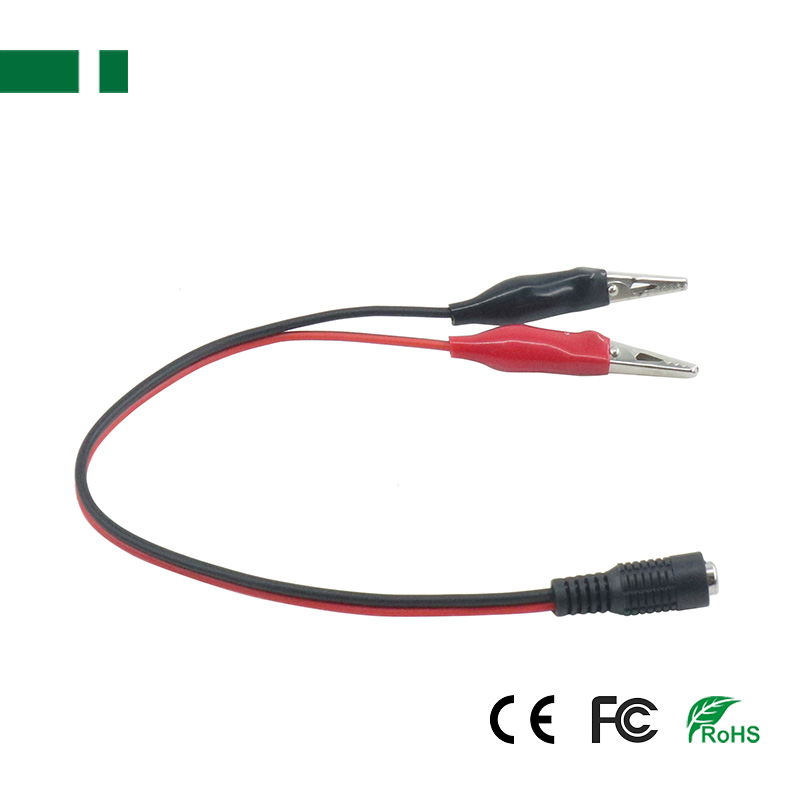

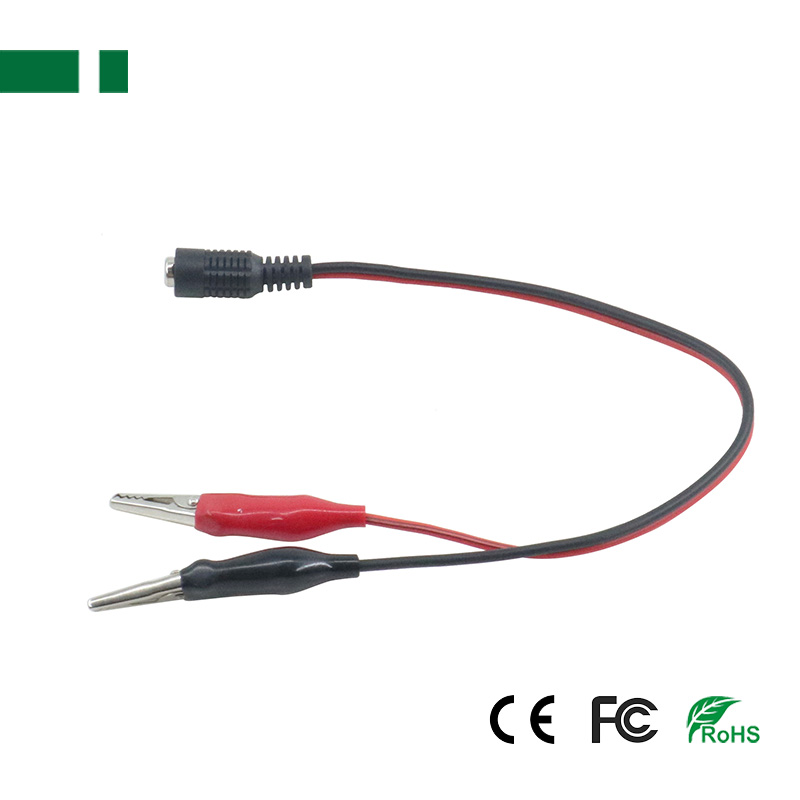

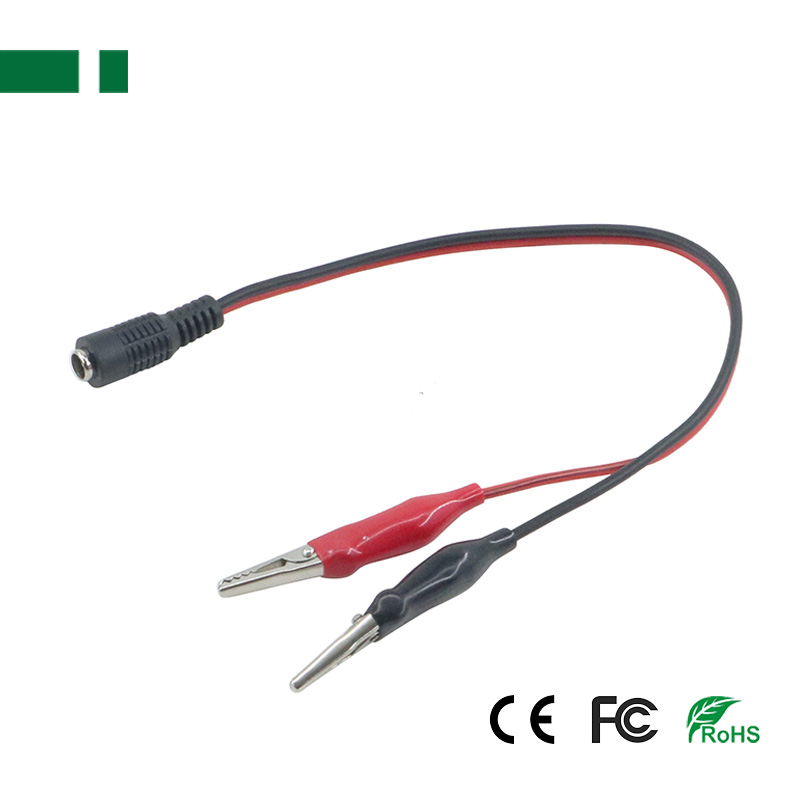

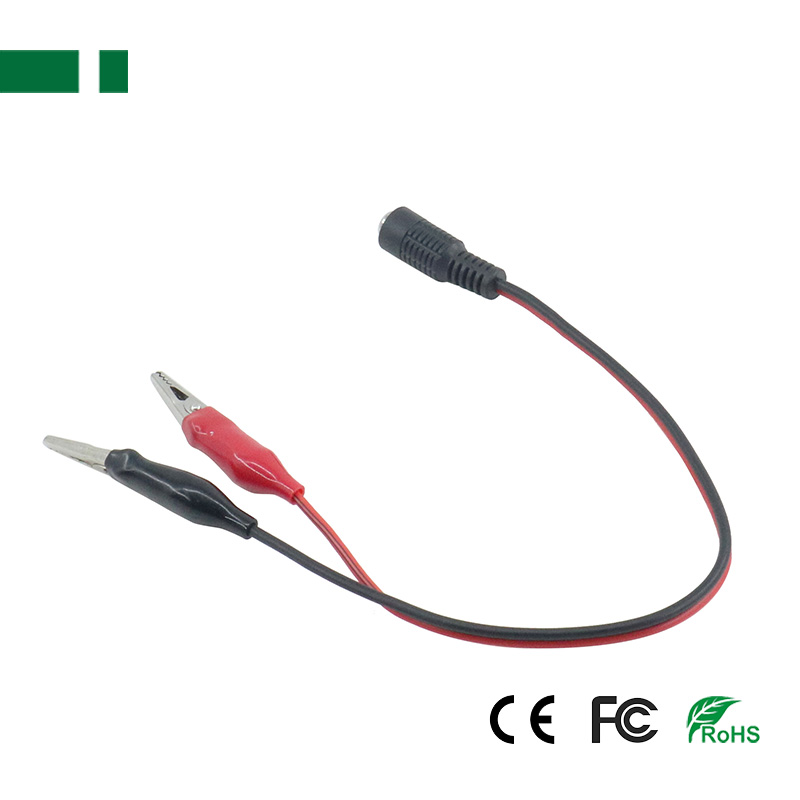

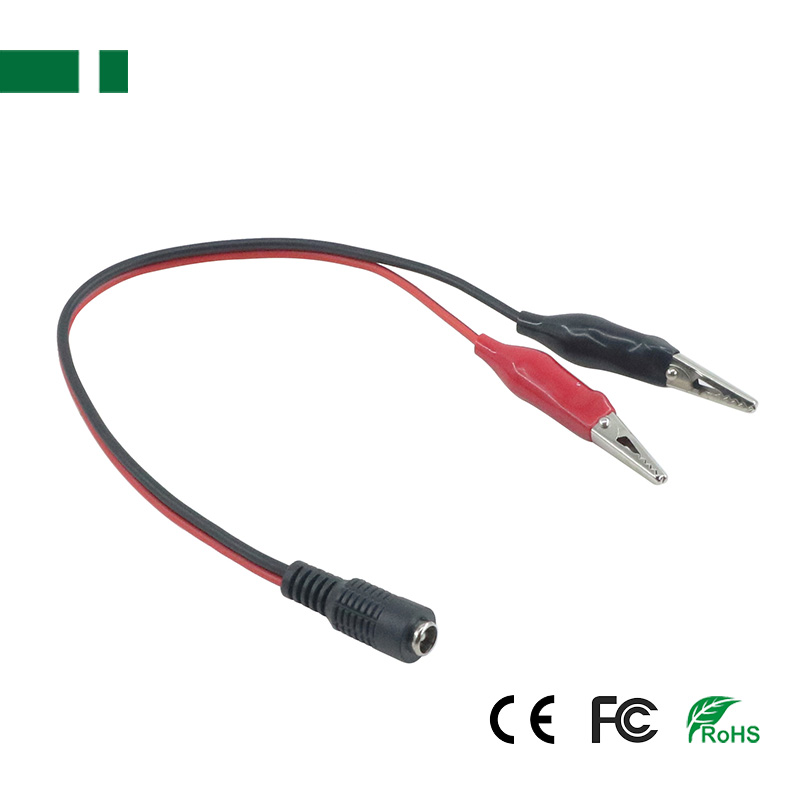

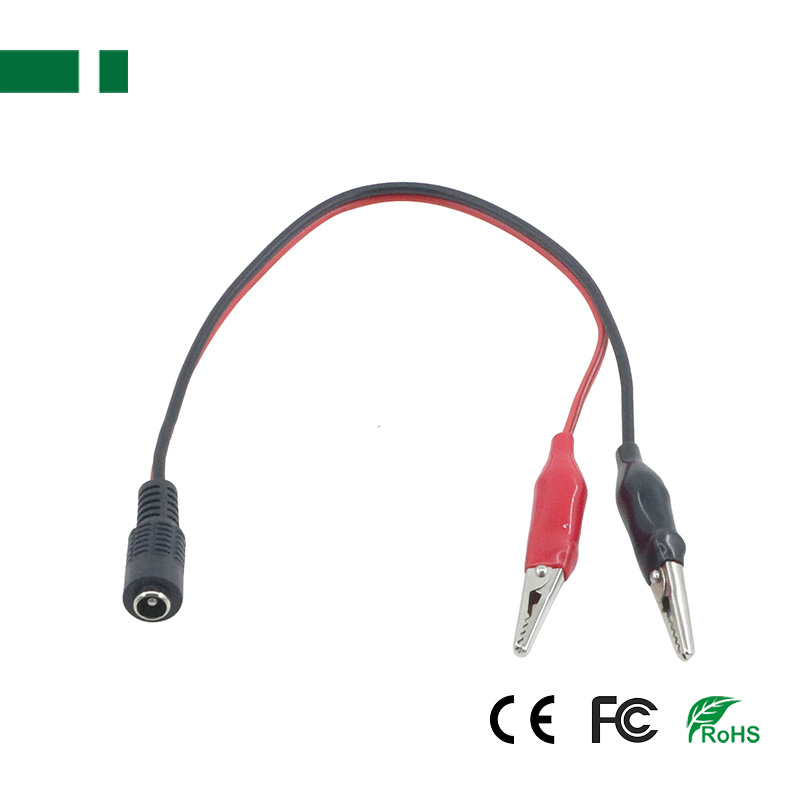

CDF-003-C DC Female Plug to Alligator clip Cable

CDF-003-C DC Female Plug to Alligator clip Cable

DC Female Plug to Alligator clip Cable
Cable heart is copper
Suitable for 5.5*2.1 CCTV Camera Power
Cable Color: black or black and red
Product description: DC Female Plug to Alligator clip Cable, Connector Insert size 5.5mm x 2.1mm
INQUIRY EMAIL

Female DC Power Plug Adapter to Alligator clip Cable, 30cm/ 50cm/ 100cm optional, DC 5.5*2.1mm + Crocodile Clips Test wire

The DC barrel connector provides a simple and secure DIY solution for DC power connections that can be used in conjunction with a Power Adapter or power box.
Well-constructed connectors with upgraded thicker copper wire and thicker isolation molding provide reliable and secure power connections.
Compatible with all security surveillance camera systems after our rigorous testing, the cable can reach 5a DC power projects such as party lighting or LED light strips.

Specifications:
Design: 2 Alligator Clip to Female
Plug specifications: outer diameter 5.5mm inner diameter 2.1mm
Connector polarity: Internal positive + (red wire); Rxternal negative-(black wire)
Color : Red, Black
Cable length: 50cm / 30cm / 100cm
Transmission voltage: 1V-38V
Transmission current: maximum transmission 5A (12V-24V)
Transmission power: maximum transmission power 50W
Wire material: All copper wire, low heat
Joint material: high quality copper conductor, galvanized and flame retardant
Wire gauge: 2x0.5mm square
Connector characteristics: with tuning fork buckle, good contact point
