DC/ AC Power Cable

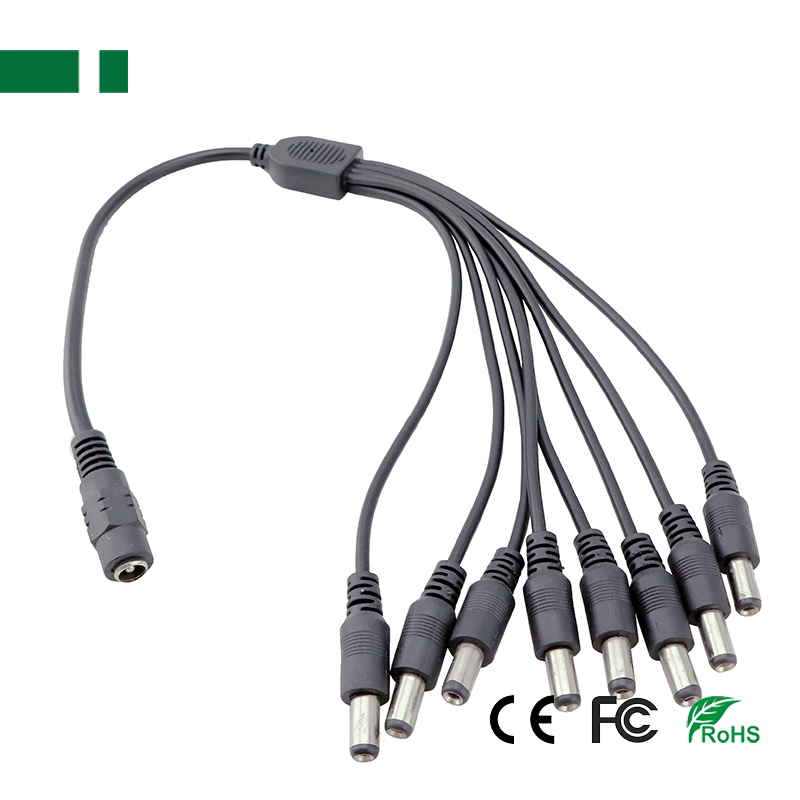

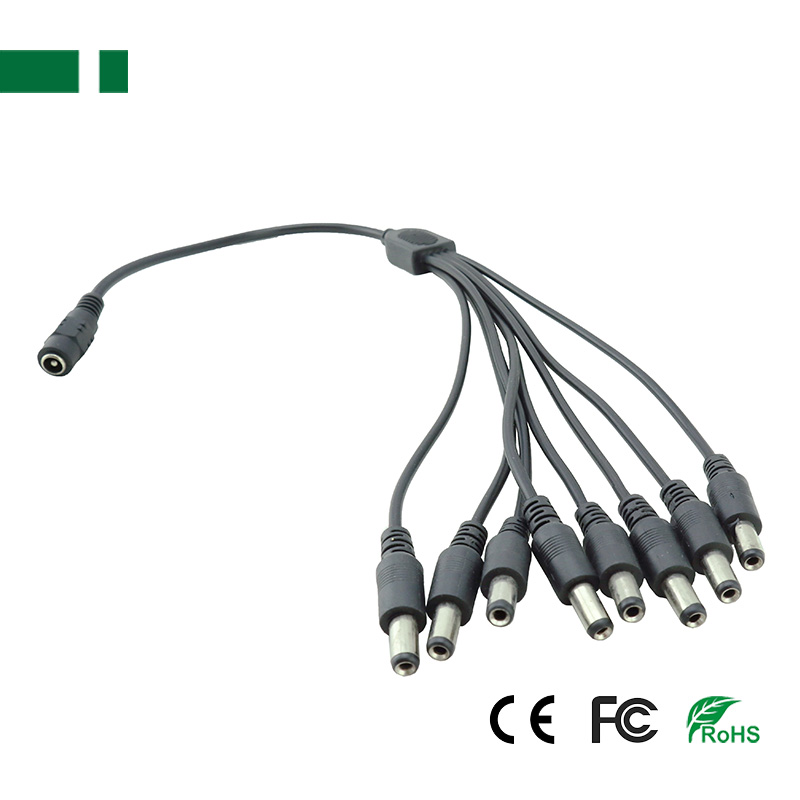

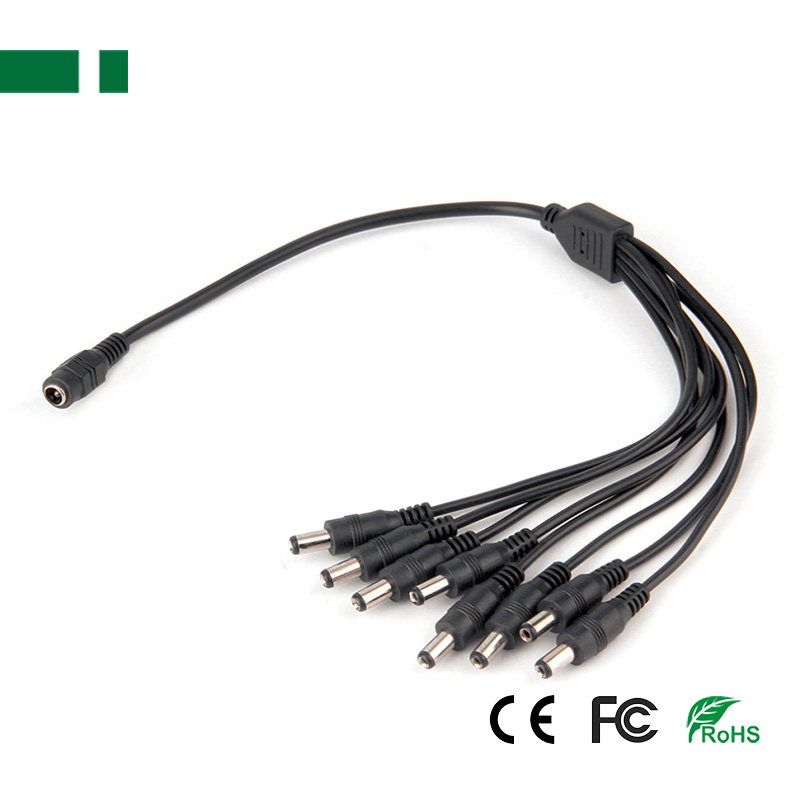

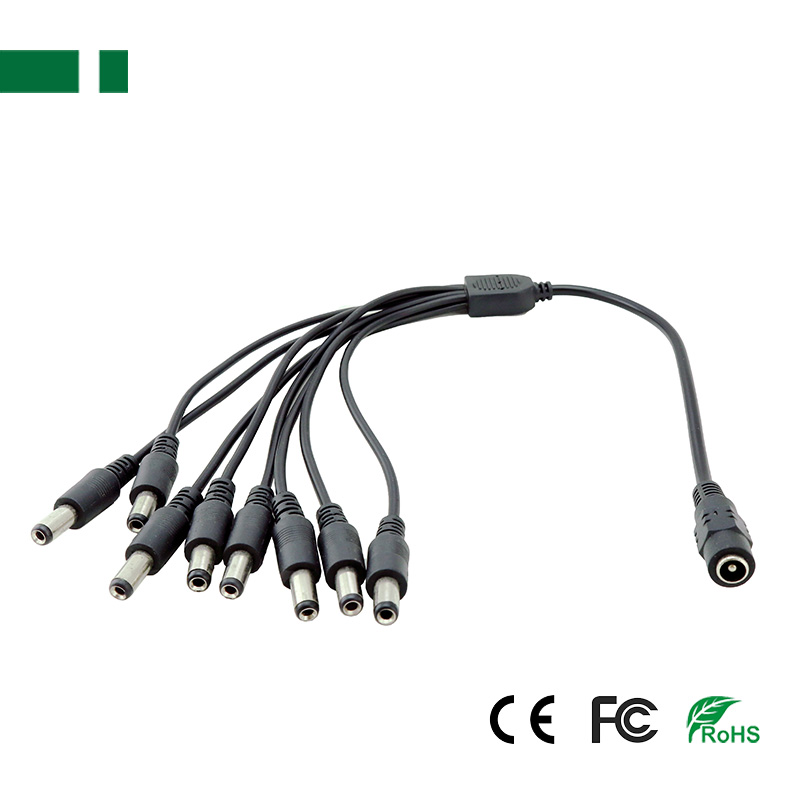

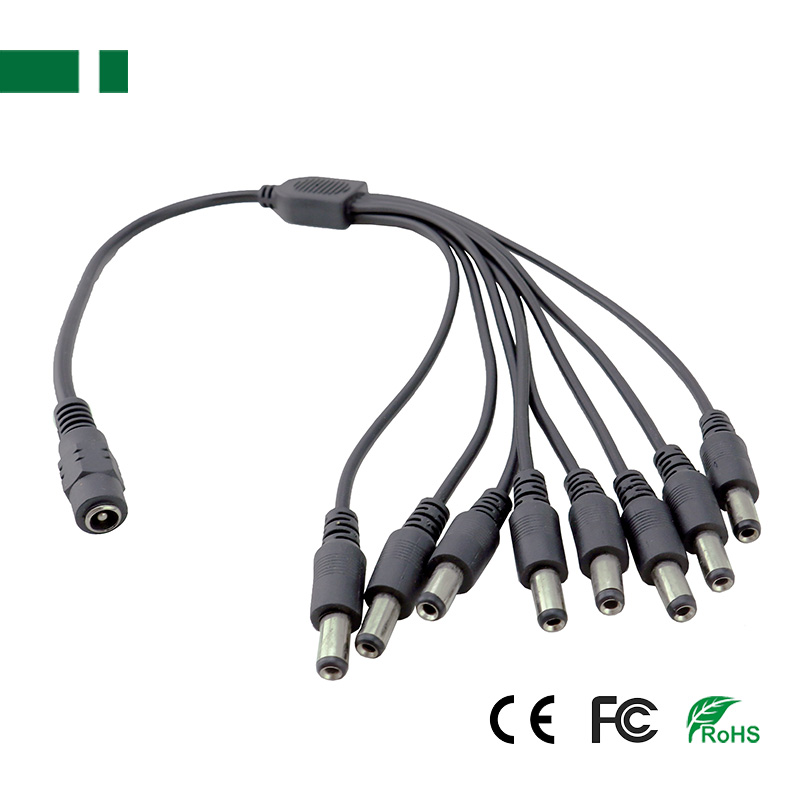

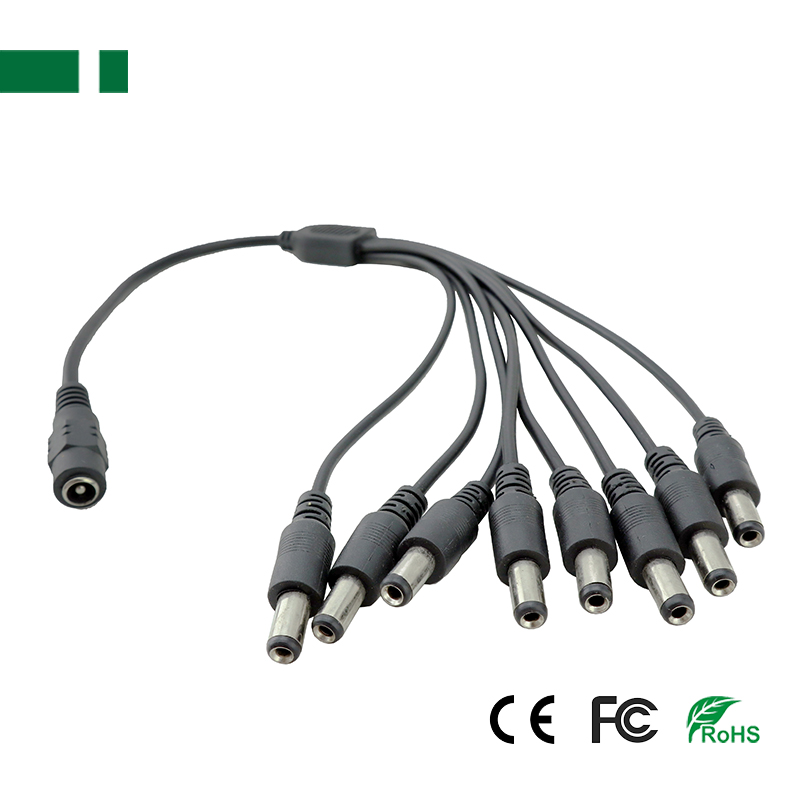

CD1-8 DC Power Splitter

1-Female to 8-Male DC Cable
Cable heart is copper
Total length: 36cm
Cable Color: black
Product description: 1 female to 8 male splitter Color: Black Material(External): PVC Plastic Power Plug Type: 2.1mm x 5.5mm Length:36cm
INQUIRY EMAIL

The DC barrel connector provides a simple and secure DIY solution for DC power connections that can be used in conjunction with a Power Adapter or power box.
Well-constructed connectors with upgraded thicker copper wire and thicker isolation molding provide reliable and secure power connections.
Compatible with all security surveillance camera systems after our rigorous testing, the cable can reach 5a DC power projects such as party lighting or LED light strips.

Feature:

100% Brand New and High Quantity

1 female to 8 male splitter
Color: Black
Material (External): PVC Plastic
Power Plug Type: 2.1mm x 5.5mm
Length:36cm

Specification:

DC Power Jack 5.5x2.1mm Splliter Cable
Model	CD1-2	CD1-3	CD1-4	CD1-5	CD1-6	CD1-8
Connector	1Female + 2Male	1Female + 3Male	1Female + 4Male	1Female + 5Male	1Female + 6Male	1Female + 8Male
Max. load of current	5A
Length	36cm
Conductor Material	Copper
Insulation Material	PVC
Female Plug	Inner: 2.1mm, Outter: 5.5mm
Male Plug	Outter: 5.5mm, Inner: 2.1mm
Power	12V-36V
Cable Color	Black

This DC power splitter allows many devices to operate from one central power source.
In CCTV system, this power splitter allows you to split power equally up to 4 cameras using a single power supply unit (PSU).
Applied for LED lighting, DVRs, recordings, and many other electronic devices that has 5.5x2.1mm port.
Convenient and most effective way to power up 4 cameras with 1 power adapter, or lit up more LED strips at the same time.
It provides a simple solution for power connectivity, safe & reliable.
