BNC Video Connector

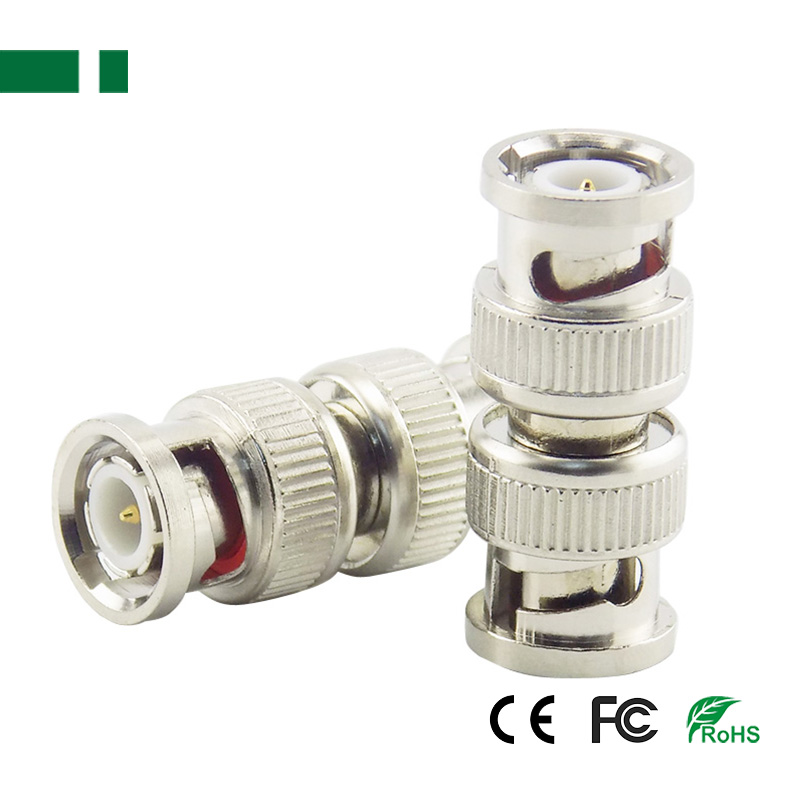

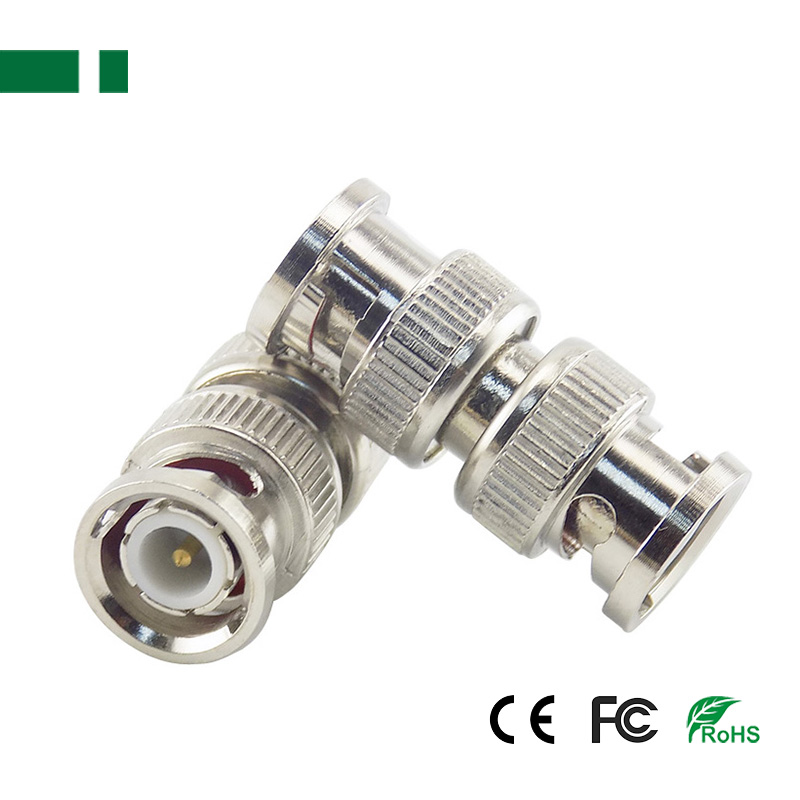

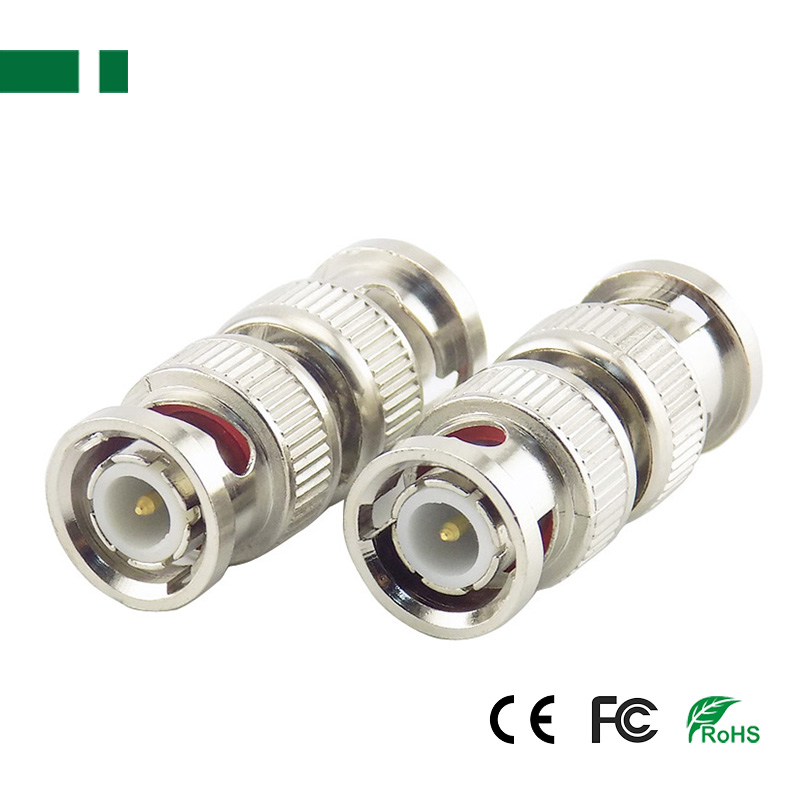

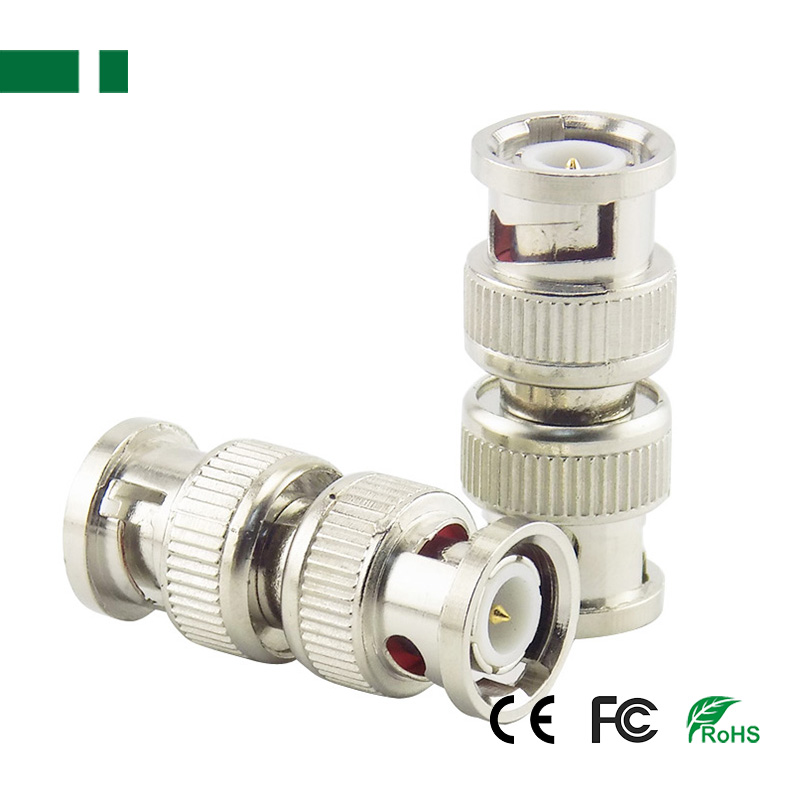

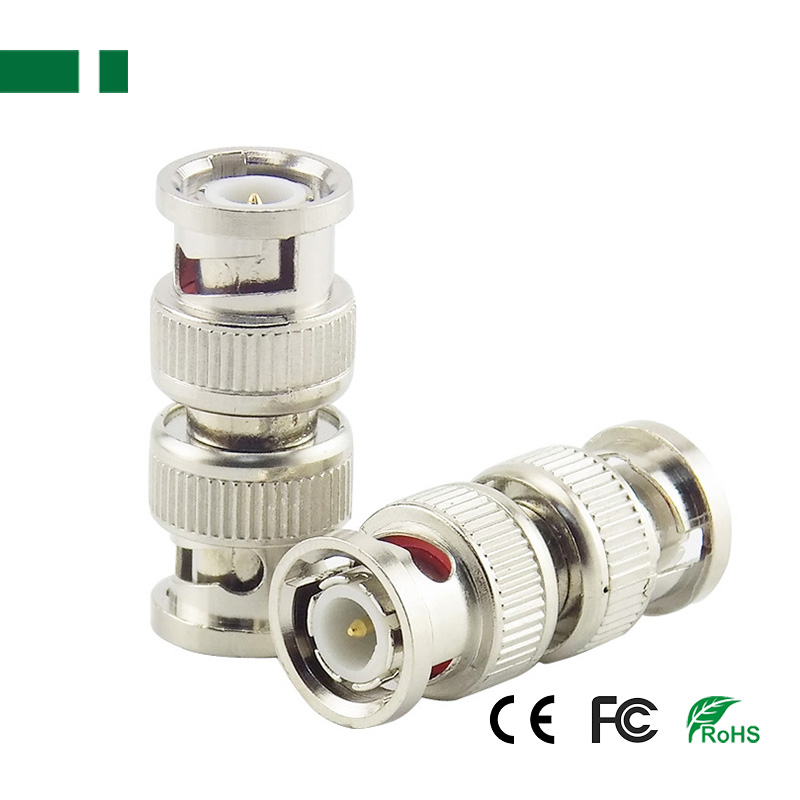

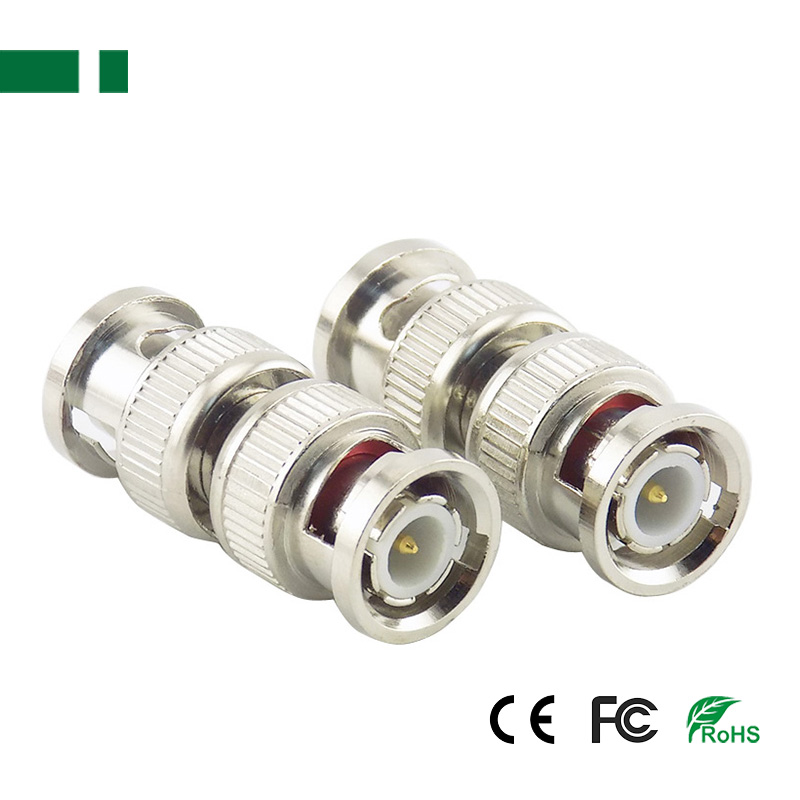

CBN-006 BNC Male to BNC Male Connector
- BNC Male to BNC Male Connector
- Zinc Alloy Body, Nickel plated
- Zinc Alloy + Center pin-copper
- Product description: BNC Male to BNC Male Connector. email: info@casview.com
BNC Male to BNC Male Connector
Zinc Alloy Body, Nickel plated
CE, FCC Approved
Packing:100pcs/bag or OEM
Zinc Alloy Body, Nickel plated
CE, FCC Approved
Packing:100pcs/bag or OEM
| CCTV Coaxial BNC Male to Male Connector | |
| Model | CBN-006 |
| Connectors | Male BNC |
| Material | Zinc Alloy + Center pin-copper |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Insulation Resistance | ≥5000MΩ |
| Frequency Range | 0~3GHZ |
| Disengage Force | ≥0.6N |
| Attenuation | 0.5dB type |
| Wire Type | Coaxial Cable |
| DC Loop Resistance | 52 ohms per 1,000 ft |
| Withstand Voltage | 1500V rms |
| Frequency Response | DC to 8 MHz |
| Working Temperature | -10°C to +70°C |
| Humidity | 0 to 95% |
| Packing | 100pcs/bag |
