CCTV Microphone

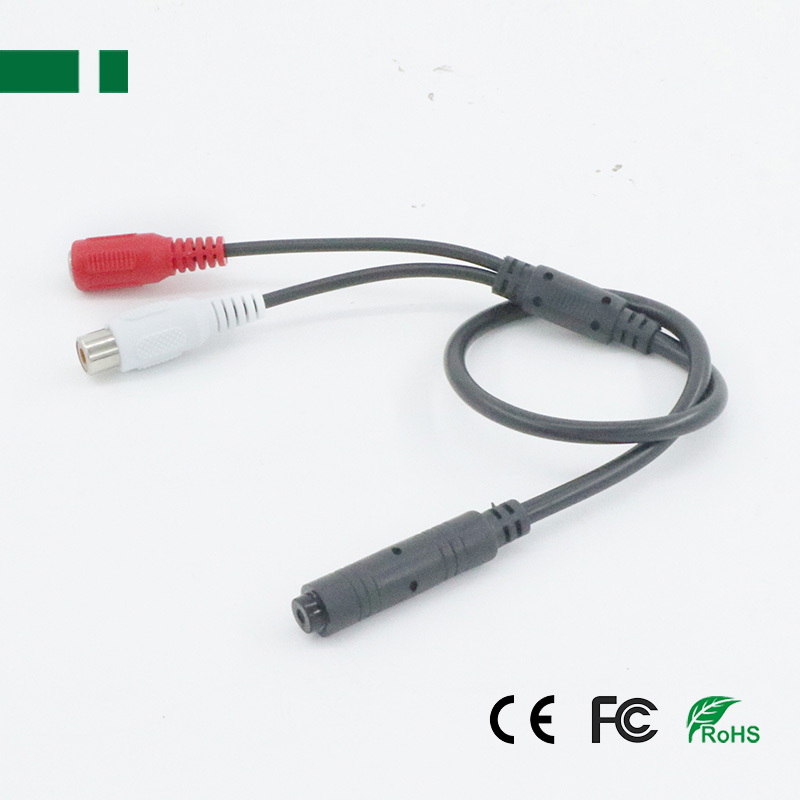

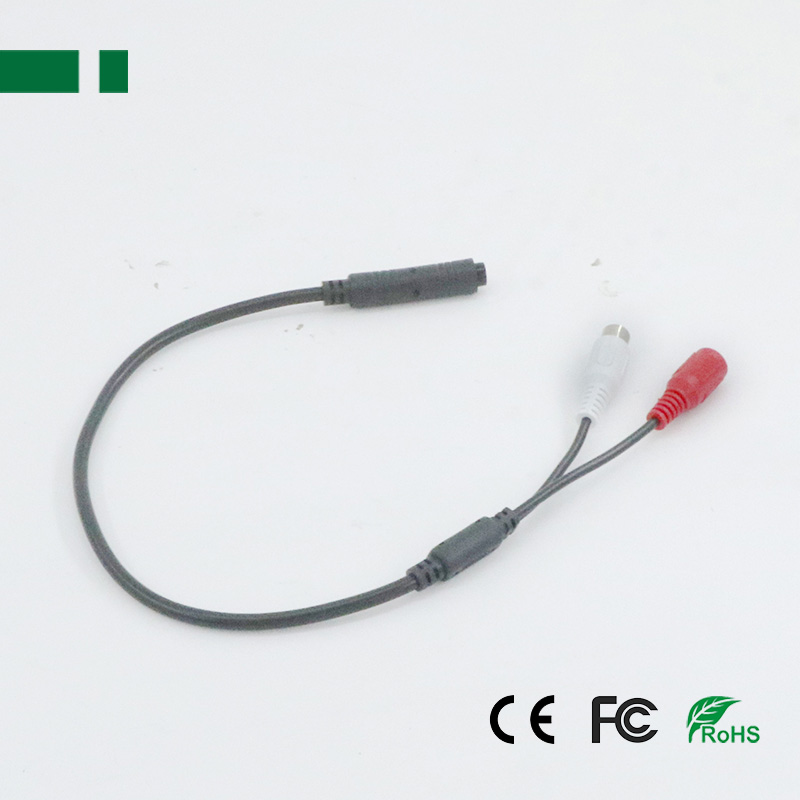

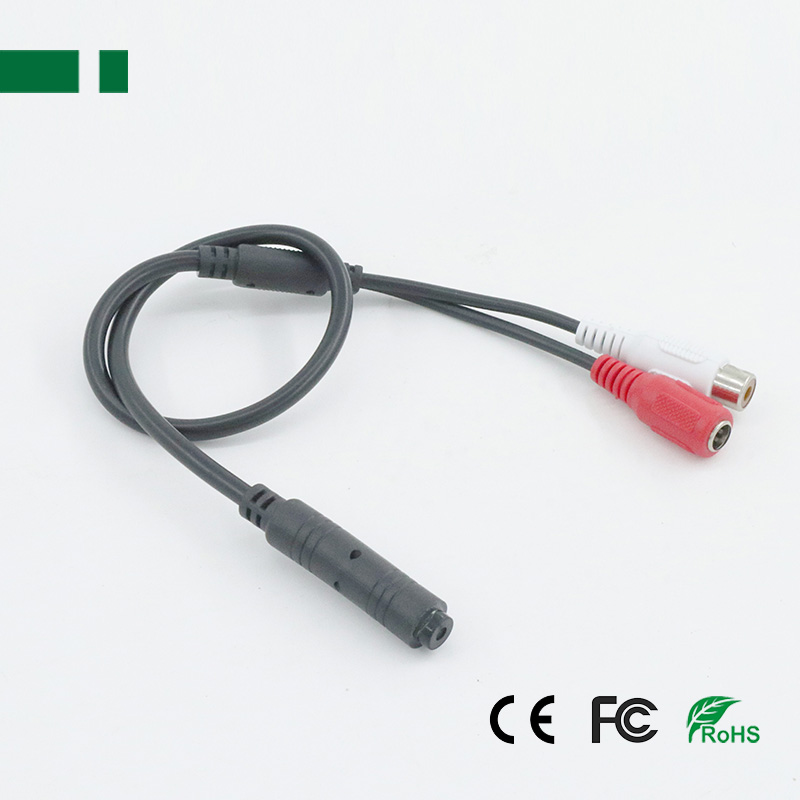

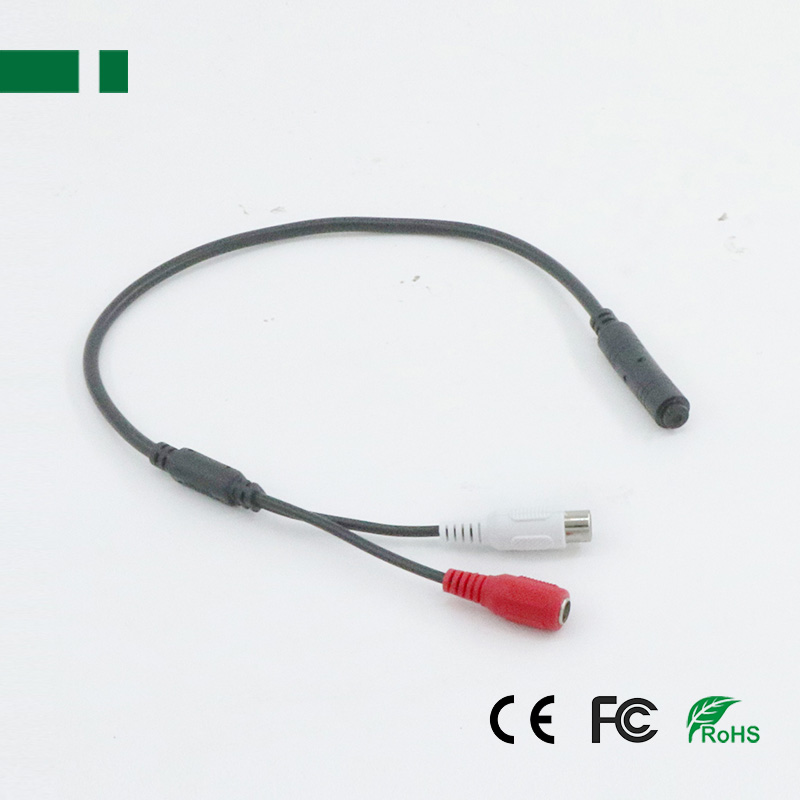

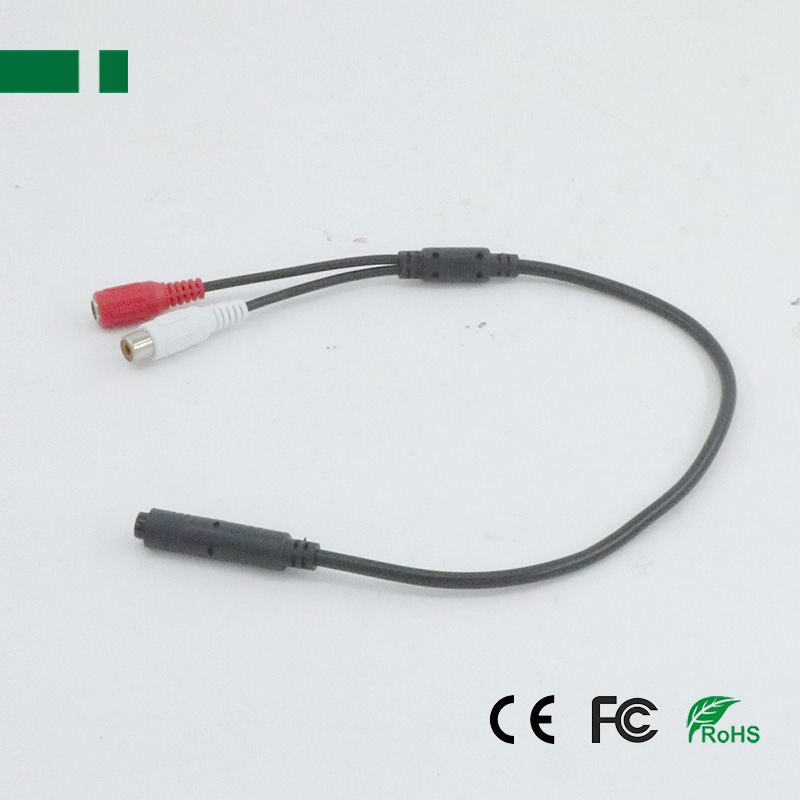

CAP-411B Mini Microphone Pickup DC9V-DC12V
- Material: Plastic and Metal
- Operating voltage: DC 9V-12V
- Frequency range: 200Hz-10KHz
- Current: 12-18mA
- Product description: This microphone for CCTV security camera, Built-in reverse power protective circuit, low power expense, wide voltage range, safe and reliable to use.
Mini CCTV Microphone Pickup DC 12V Sound Monitor Audio Pickup Audio RCA Power Cable for Cctv Camera DVR System Video Surveillance
Features:
100% brand new and high quality.
Adjustable sensitivity low noise mini shape sound audio monitor.
Low power dissipation & long distance.
Sound pickup use the high fidelity and low noise process chip.
It can restrain the noise efficiently.
Low noise, high fidelity, wide operating voltage, low power dissipation and long transmission distance etc.
The sound pickup (audio monitor) is the best choose for the TV monitoring and safety system.
Match use with the camera can realize AV synch.
Specifications:
Item Type: Microphone Audio Monitor
Material: Plastic and Metal
Color: White
External dimension: 35×28×18mm / 1.38×1.10×0.71" (Approx.)
Audio Output: RCA Female
Red wire ---Power
White wire—Audio
Sensitivity: 200 mA/ubar
Operating voltage: DC 9V-12V
Current: 12-18mA
Output level: 0- 6Vpp
Frequency range: 200Hz-10KHz
Frequency respond: 2.5dB
Output impedance: 600 ohm
Audio monitoring range: 10-100 square meter, volume adjustable
Plug & Play
Extremely Sensitive
Great for Security Monitoring
Higher S/N Ratio
Features:
100% brand new and high quality.
Adjustable sensitivity low noise mini shape sound audio monitor.
Low power dissipation & long distance.
Sound pickup use the high fidelity and low noise process chip.
It can restrain the noise efficiently.
Low noise, high fidelity, wide operating voltage, low power dissipation and long transmission distance etc.
The sound pickup (audio monitor) is the best choose for the TV monitoring and safety system.
Match use with the camera can realize AV synch.
Specifications:
Item Type: Microphone Audio Monitor
Material: Plastic and Metal
Color: White
External dimension: 35×28×18mm / 1.38×1.10×0.71" (Approx.)
Audio Output: RCA Female
Red wire ---Power
White wire—Audio
Sensitivity: 200 mA/ubar
Operating voltage: DC 9V-12V
Current: 12-18mA
Output level: 0- 6Vpp
Frequency range: 200Hz-10KHz
Frequency respond: 2.5dB
Output impedance: 600 ohm
Audio monitoring range: 10-100 square meter, volume adjustable
Plug & Play
Extremely Sensitive
Great for Security Monitoring
Higher S/N Ratio
