CCTV Microphone

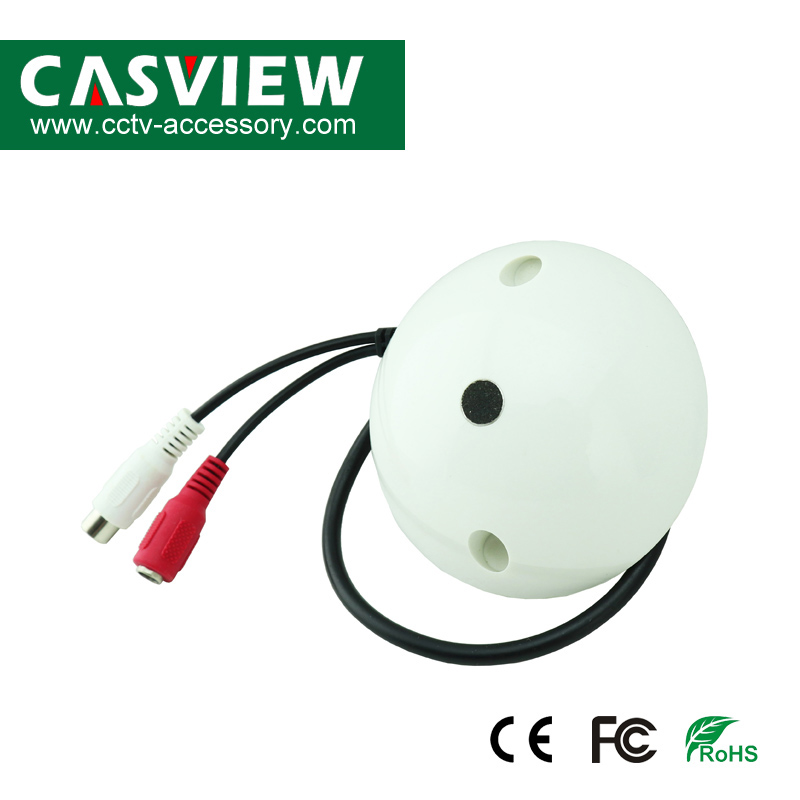

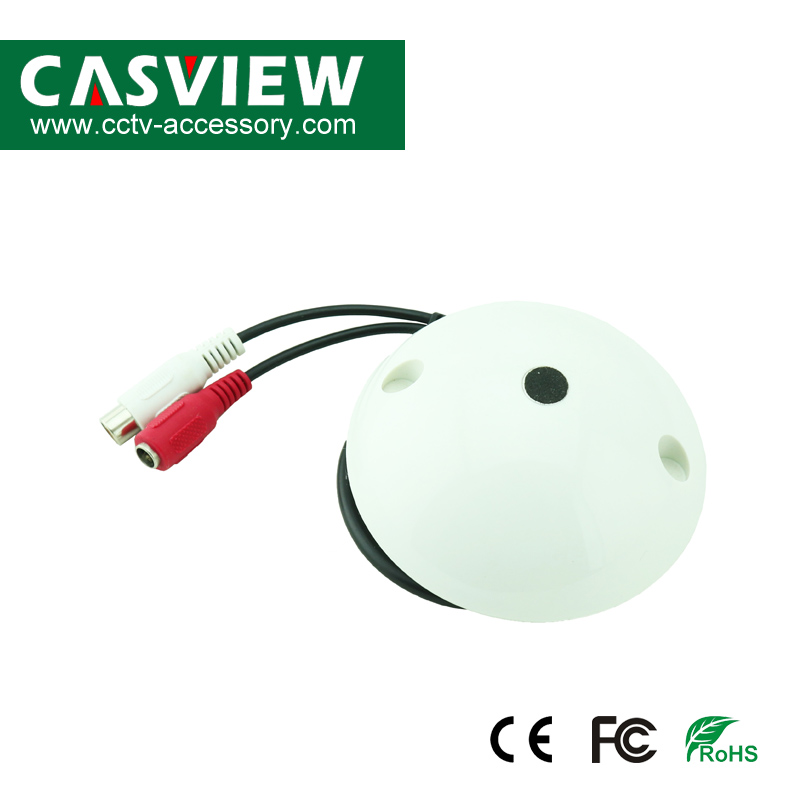

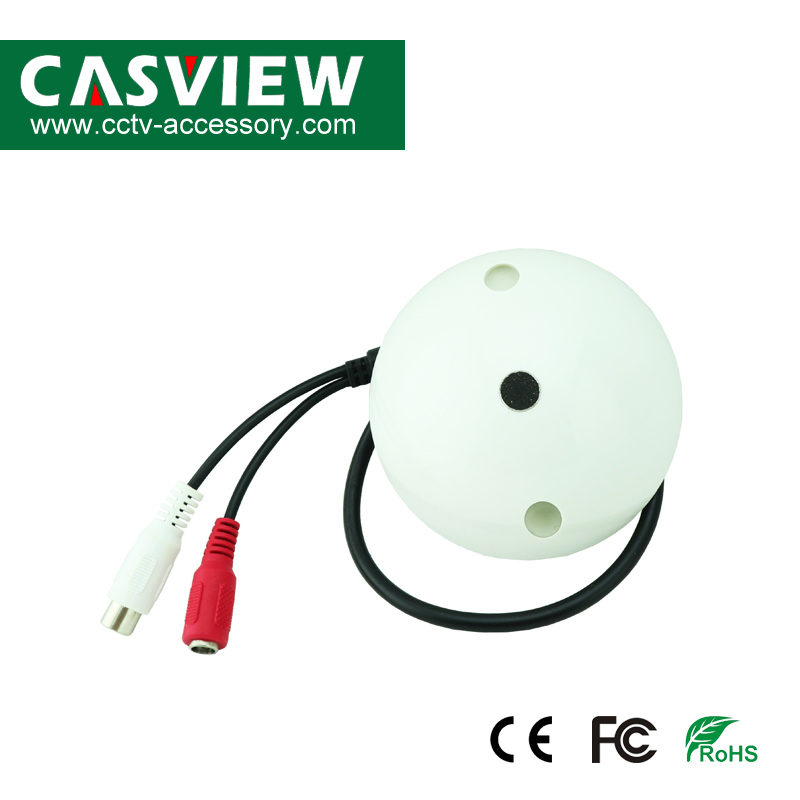

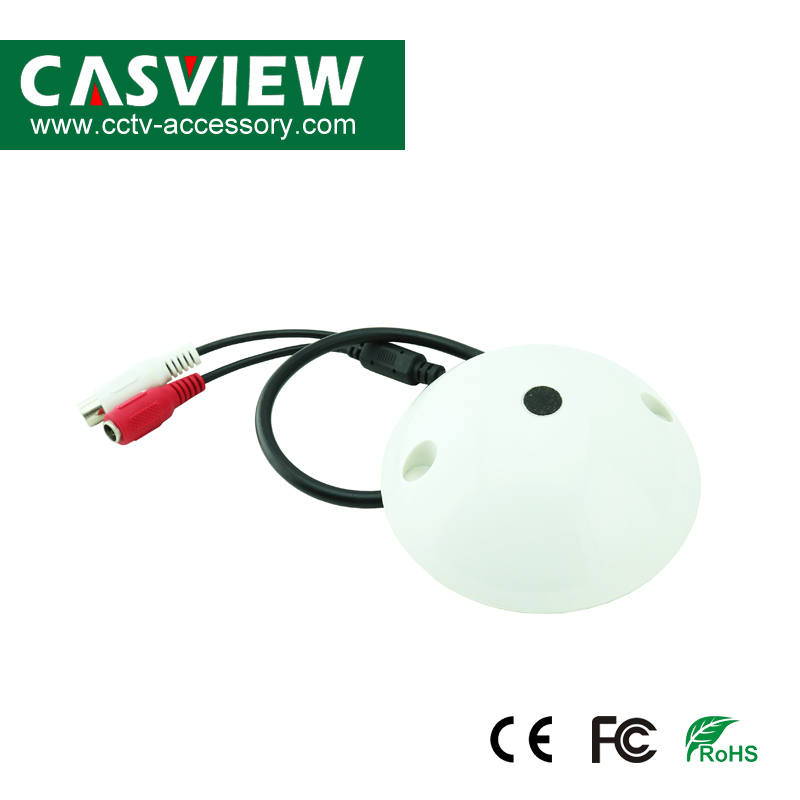

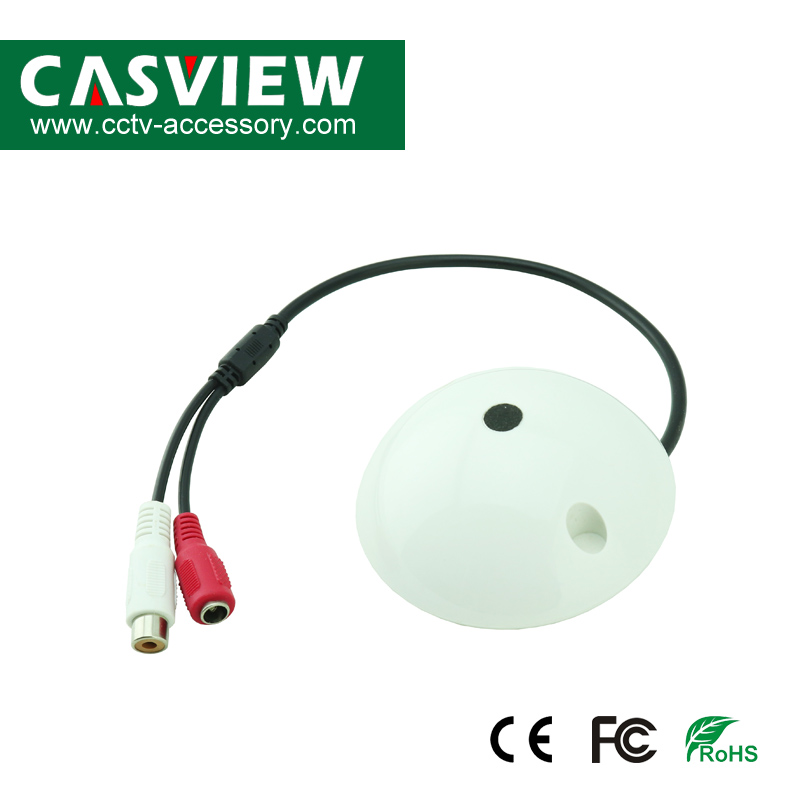

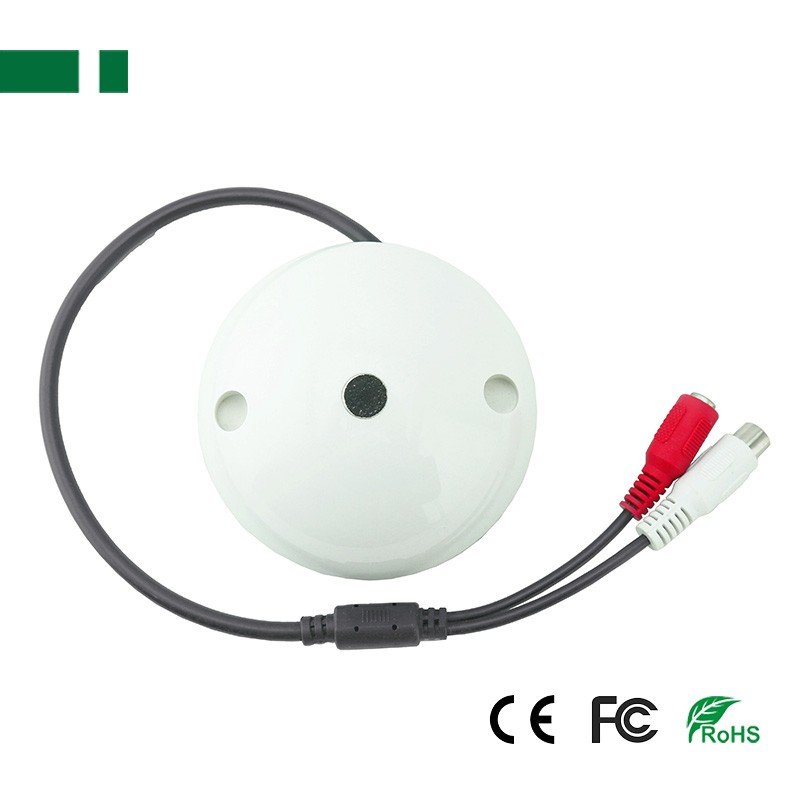

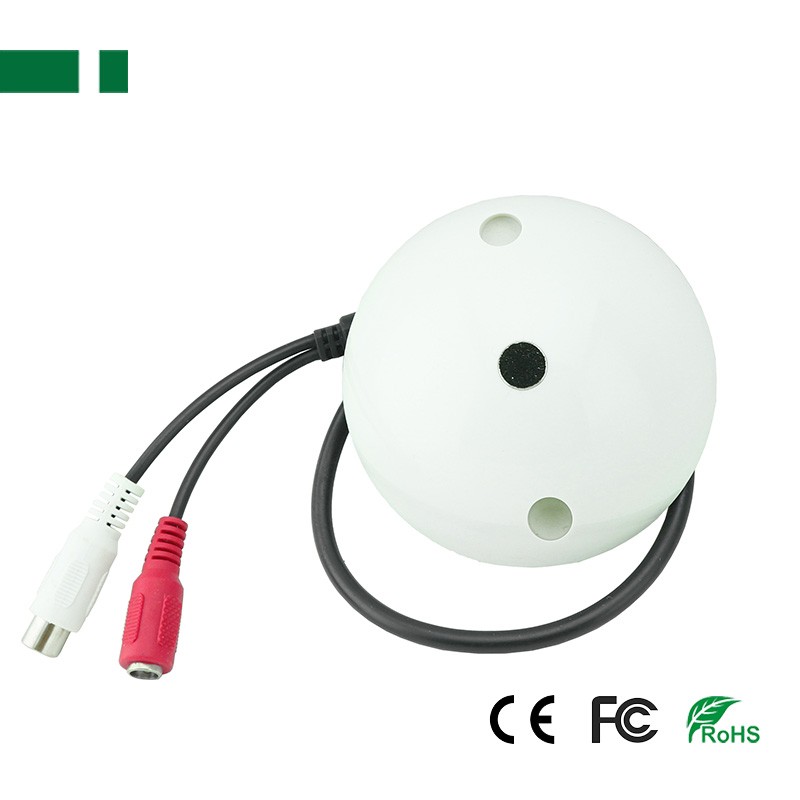

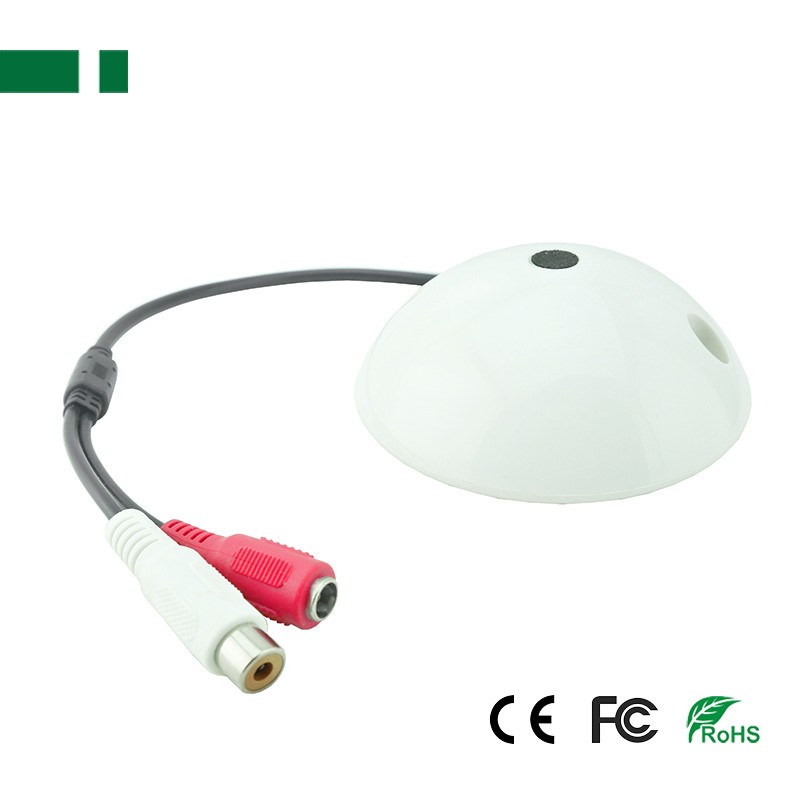

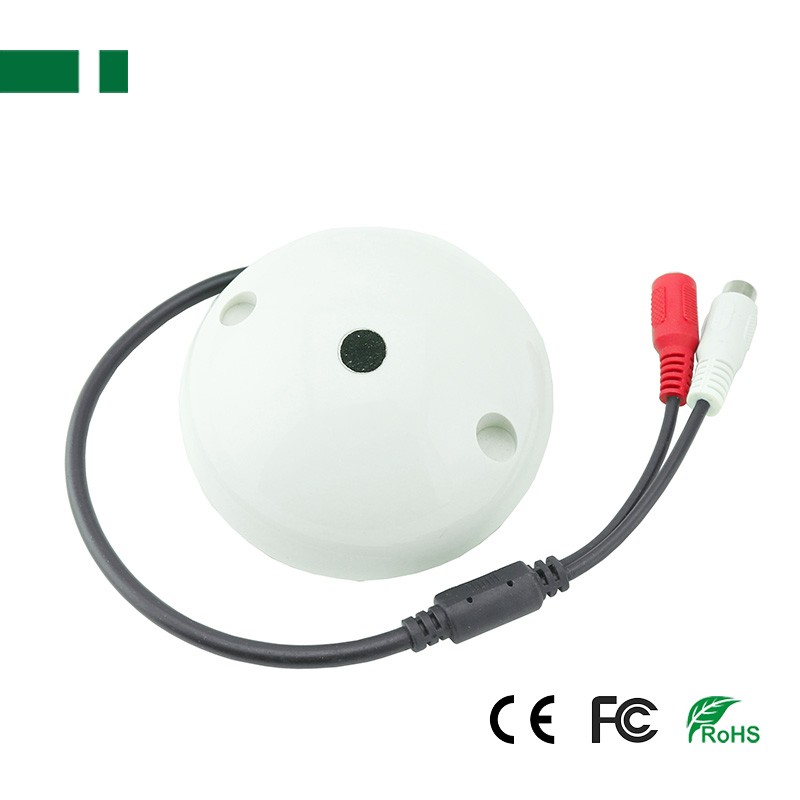

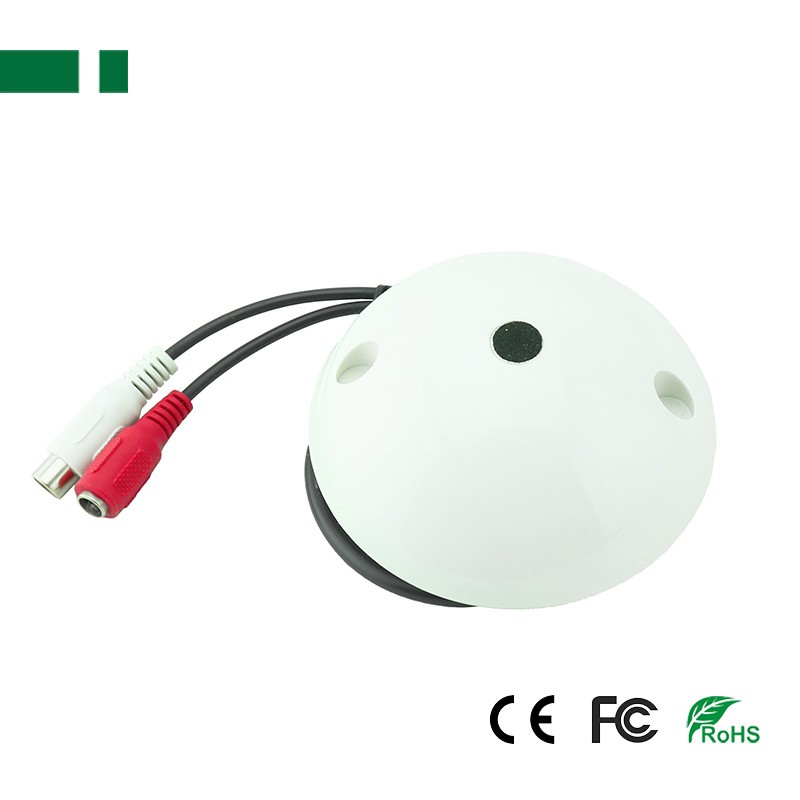

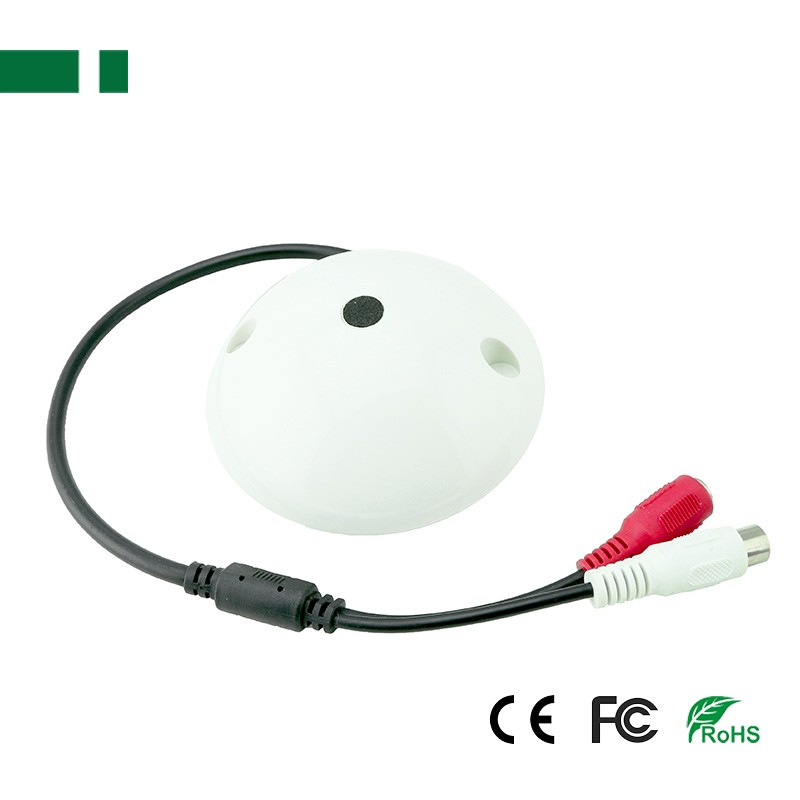

CAP-406B

Mini High Sensitivity Hidden Audio Pickup
Audio Montor Range:30㎡ with better quality
DSP built-in noise reduction circuit
AGC circuit built-in gain
Product description: ◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
INQUIRY EMAIL

Features:

1. Plug & Play
2. Extremely Sensitive
3. Great for Security Monitoring
4. Higher S/N Ratio
5. Range: 30 Square metres
6. Audio Output: RCA Female
7. Sensitivity : 200mA/ubar
8. Work current : 5 mA - 60mA
9. Work Voltage: 9 - 12V
10. Frequency: 200-6000HZ
11. Max output Voltage: 5V-upp

Specification:

Model	CAP-406B
Audio Monitoring Range	30m2
Connector Type	"+"Red power supply,"-" Black power supply, S+ White signal
Sensitivity	-47DB
Work Voltage	4-14V
Current Consumption	5mA-60mA
Frequency Range	100~~5kHz
Frequency Response	2.5dB
Max output Voltage	5VPP
Output Impedance	600Ω
Working Temperature	-10°C to +70°C
Size	6*14mm
Monitoring of: 10 m2 100m2 Signal transmission line With a core line with the best shield
