DC/ AC Power Cable

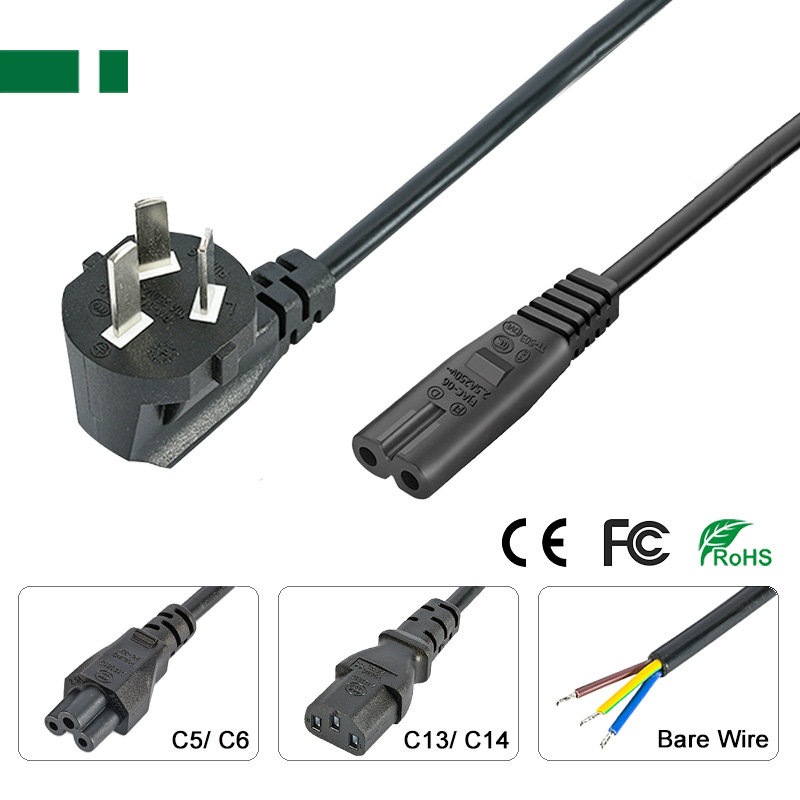

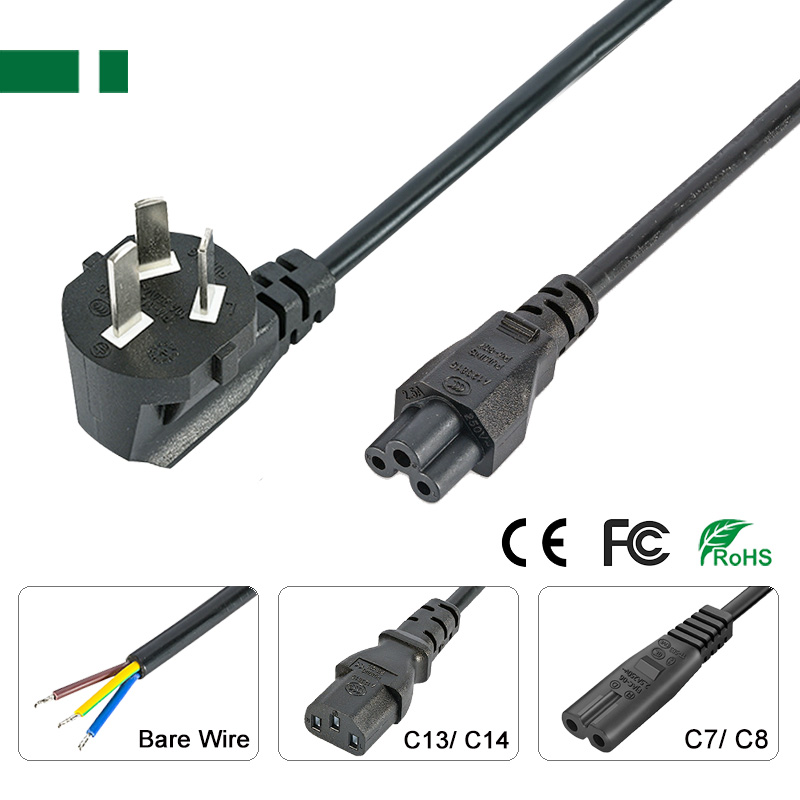

AC-GBI-C7-A1 AC Power Cable with GB Type I Plug to C7 Connector

AC-GBI-C7-A1 AC Power Cable with GB Type I Plug to C7 Connector

AC Power Cable with GB Type I Plug to C7 Connector
OD: 3*0.75mm², 1.5M length
Max output power: 500W
Conductor material: CCA
Product description: A different country may use different AC Cable power cord types, different plugs, and connectors, especially the plug types.
INQUIRY EMAIL

AC Power Cable with GB Type I Plug to C7 Connector. OD: 3*0.75mm², Max. 500W, 1.5M, CCA.

Network engineers who work around the world are well aware of the many different plugs and sockets in use in data centers. But the first-time experience in a foreign data center might be hard if you don’t know which AC Cable power cord is used there. There is more than one standard being used in the world. A different country may use different AC Cable power cord types, different plugs, and connectors, especially the plug types.

Specification:

AC Cable Power Supply Cord type
Model	AC Plug	Connector type	OD	Length	Material	Max. Power
AC-EUC-B-A1	EU Type C	Bare wires	2*0.75mm²	1.5M	CCA	500W
AC-EUC-C13-A1		C13 Connector		1.2M	CCA	500W
AC-EUC-C7-A1		C7 Connector		1.5M	CCA	500W
AC-EUC-C5-A1		C5 Connector		1.2M	CCA	500W
AC-EUE-B-A1	EU Type A	Bare wires	3*0.75mm²	1.5M	CCA	500W
AC-EUE-B-B1		Bare wires			Cooper	2000W
AC-EUE-C13-A1		C13 Connector			CCA	500W
AC-EUE-C13-B1		C13 Connector			Cooper	2000W
AC-EUE-C13-B2		C13 Connector			Cooper	3500W
AC-EUE-C5-A1		C5 Connector			CCA	500W
AC-GBA-B-A1	GB Type A	Bare wires	2*0.75mm²	1.5M	CCA	500W
AC-GBA-C13-A1		C13 Connector		1.2M	CCA	500W
AC-GBA-C7-A1		C7 Connector		1.5M	CCA	500W
AC-GBA-C5-A1		C5 Connector		1.2M	CCA	500W
AC-GBI-B-A1	GB Type I	Bare wires	3*0.75mm²	1.5M	CCA	500W
AC-GBI-C13-A1		C13 Connector		1.5M	CCA	500W
AC-GBI-C13-B1		C7 Connector		1.5M	CCA	500W
AC-GBI-C5-A1		C5 Connector		1.5M	CCA	500W
AC-UKG-B-A1	UK Type G	Bare wires	3*0.75mm²	1.5M	CCA	500W
AC-UKG-C13-A1		C13 Connector			CCA	500W
AC-UKG-C13-C1		C13 Connector			Cooper	2000W
AC-UKG-C7-A1		C7 Connector			CCA	500W
AC-UKG-C5-A1		C5 Connector			CCA	500W
