What is fiber optics

Fiber Optics, the science of transmitting data, voice, and images by the passage of light through thin, transparent fibers. In telecommunications, fiber optic technology

has virtually replaced copper wire in long-distance telephone lines, and it is used to link computers within local area networks. Fiber optics is also the basis of the fiberscopes used in examining internal parts of the body (endoscopy) or inspecting the interiors of manufactured structural products.

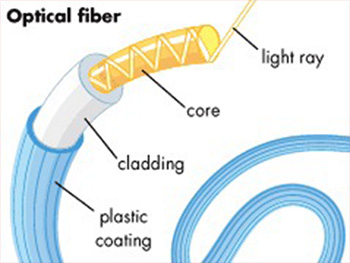

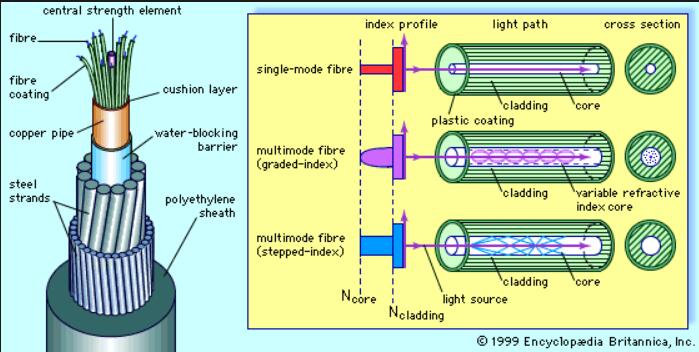

The basic medium of fiber optics is a hair-thin fiber that is sometimes made of plastic but most often of glass. A typical glass optical fiber has a diameter of 125 micrometers (μm), or 0.125 mm (0.005 inch). This is actually the diameter of the cladding, or outer reflecting layer. The core, or inner transmitting cylinder, may have a diameter as small as 10 μm.

Through a process known as total internal reflection, light rays beamed into the fiber can propagate within the core for great distances with remarkably little attenuation, or reduction in intensity. The degree of attenuation over distance varies according to the wavelength of the light and to the composition of the fiber.

When glass fibers of core/cladding design were introduced in the early 1950s, the presence of impurities restricted their employment to the short lengths sufficient for endoscopy. In 1966, electrical engineers Charles Kao and George Hock ham, working in England, suggested using fibers for telecommunication, and within two decades silica glass fibers were being produced with sufficient purity that infrared light signals could travel through them for 100 km (60 miles) or more without having to be boosted by repeaters. In 2009 Kao was awarded the Nobel Prize in Physics for his work. Plastic fibers, usually made of polymethylmethacrylate, polystyrene, or polycarbonate, are cheaper to produce and more flexible than glass fibers, but their greater attenuation of light restricts their use to much shorter links within buildings or automobiles.

Optical telecommunication is usually conducted with infrared light in the wavelength ranges of 0.8–0.9 μm or 1.3–1.6 μm—wavelengths that are efficiently generated by light-emitting diodes or semiconductor lasers and that suffer least attenuation in glass fibers. Fiberscope inspection in endoscopy or industry is conducted in the visible wavelengths, one bundle of fibers being used to illuminate the examined area with light and another bundle serving as an elongated Lens for transmitting the image to the human eye or a video camera.
